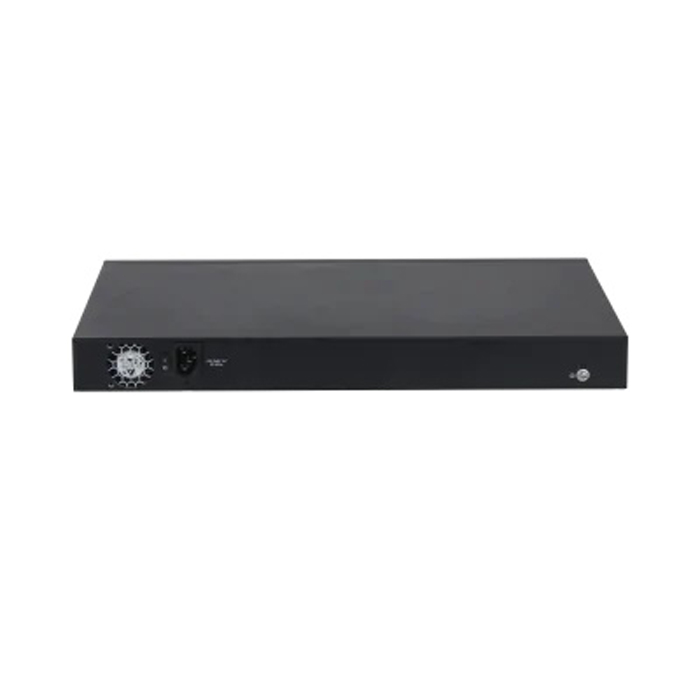

Dahua 16-port PoE Switch DH-PFS4218-16ET-240

Dahua 16-port PoE Switch DH-PFS4218-16ET-240: Efficient and Managed PoE Solution for Your Network. Layer 2 managed switch with 8.8 Gbps switching capacity, 5.36 Mpps packet forwarding rate, and IEEE standards compliance.

Features:

• Layer: Layer 2
• Managed: Yes
• Switching Capacity: 8.8 Gbps
• Packet Forwarding Rate: 5.36 Mpps
• Packet Buffer Memory: 2.75 Mbit
• MAC Table Size: 4K
• Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab; IEEE 802.3z

Dahua DH-PFS4218-16ET-240 Specifications:

• Standard Power Supply: Yes
• PoE: Yes
• Ethernet Port: 16
• Optical Port: 2
• Ethernet Port Rate: 100 Mbps
• Optical Port Rate: 1 Gbps
• Number of Bussiness Card Slots: Port 1-16: 16 × RJ-45 10 M/100 M (PoE), Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink), Port 17-18: 2 × SFP 1000 M (uplink) (combo)
• Debugging: Console × 1 for Dahua 16-port PoE Switch DH-PFS4218-16ET-240
• Power Supply: 100V–240V AC
• Operating Temperature: –10 °C to +55 ° (14 °F to 131 °F)
• Operating Humidity: 10% RH–90% RH
• Power Consumption: Idling: 10W, Full load: 240W

PoE

• PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
• PoE Budget: Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 240W
• PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) for Dahua 16-port PoE Switch DH-PFS4218-16ET-240
• PoE Management: Power consumption management, Power on and power off, Power down for overload, Green PoE, Legacy support
• Long Distance PoE Transmission: 250 m long-distance power supply

Function of Dahua 16-port PoE Switch DH-PFS4218-16ET-240

• Spanning Tree Protocol: IEEE 802.1d (STP); 802.1w (RSTP)
• VLAN: IEEE802.1q Standard VLAN
• Flow Control: Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
• Link Aggregation: Static; LACP
• Port Mirroring: One-to-one; multiple-to-one
• Multicast: GMP snooping based on port
• DHCP: DHCP client for Dahua 16-port PoE Switch DH-PFS4218-16ET-240
• Security: Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
• QoS: High and low priority, WRR, 802.1P, DSCP, Priority based on protocol

General

• ESD: Air discharge: 8kV, Contact discharge: 6kV
• Thunder-proof: Common mode: 4kV, Differential mode: 2kV
• Dimensions: 440 mm × 300 mm × 44 mm (17.32″ × 11.81″ × 1.73″) (L × W × H)
• Packaging Dimensions: Packing box: 527 mm × 412 mm × 110 mm (20.75″ × 16.22″ × 4.33″) (L × W × H), Protective box: 584 mm × 549 mm × 446 mm (22.99″ × 21.61″ × 17.56″) (L × W × H)

Specifications:

• The parameters and datasheets below can only be applied to V2.0 (version 2.0)
• Intelligent PoE
• Red port supports 90W IEEE802.3bt
• Web management with friendly interface and easy operation
• 250 m long distance PoE transmission
• PoE watchdog
• Plug and play
