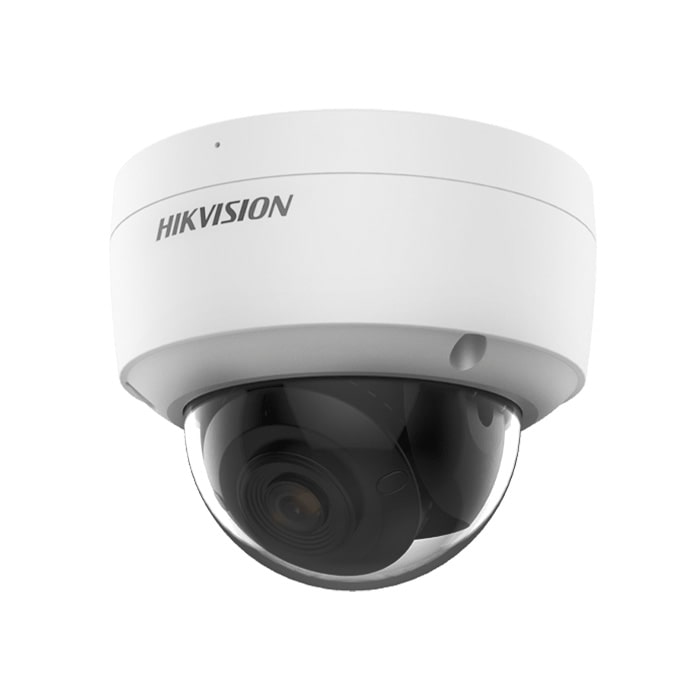

Hikvision DS-2CD2147G2-SU 4MP 2.8mm Fixed Lens 30m IR ColorVu IP Dome Camera

This is DS-2CD2147G2-SU  Hikvision AcuSense 4MP fixed lens ColorVu dome camera with a built-in mic, Full-time colour. Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface.

Hikvision DS-2CD2147G2-SU Specifications:

• 4MP high resolution
• 2.8 mm fixed lens
• Triple stream
• H.265+ compression
• 4 analytics
• Face Capture
• Smart motion detection
• IP67 weatherproof
• 130dB wide dynamic range
• Built-in microphone
• Supports onboard storage (up to 256 GB)
• 12V DC & POE (802.3af)

Camera

• Image Sensor1/1.8″ Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON)
• Shutter Time1/3 s to 1/100,000 s
• Day & Night Blue glass module to reduce ghost phenomenon
• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate 0° to 355°

Lens

• Lens Type Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

• 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
• 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
• Lens MountM16
• Iris TypeFixed
• ApertureF1.0

Video Compression

• Mainstream: H.265/H.264/H.265+/H.264+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for mainstream and sub-stream

Audio

• Audio Compression-SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-SU: Yes

Network

• Simultaneous Live View Up to 6 channels
• APIO pen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host Up to 32 users. 3 user levels: administrator, operator, and user
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

Network Storage

• Micro SD/SDHC/SDXC card (256 GB) local storage, NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with a high-end Hikvision memory card, memory card encryption and health detection are supported.
• Clienti VMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Wide Dynamic Range (WDR)130 dB
• SNR≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
• Built-In Microphone-SU: Yes

Audio

• SU: 1 input (line-in), max. input amplitude: 3.3 VPP, input impedance: 4.7 KΩ, interface type: non-equilibrium;
• 1 output (line out), max. output amplitude: 3.3 VPP, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
• Alarm-SU: 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset Key Yes
