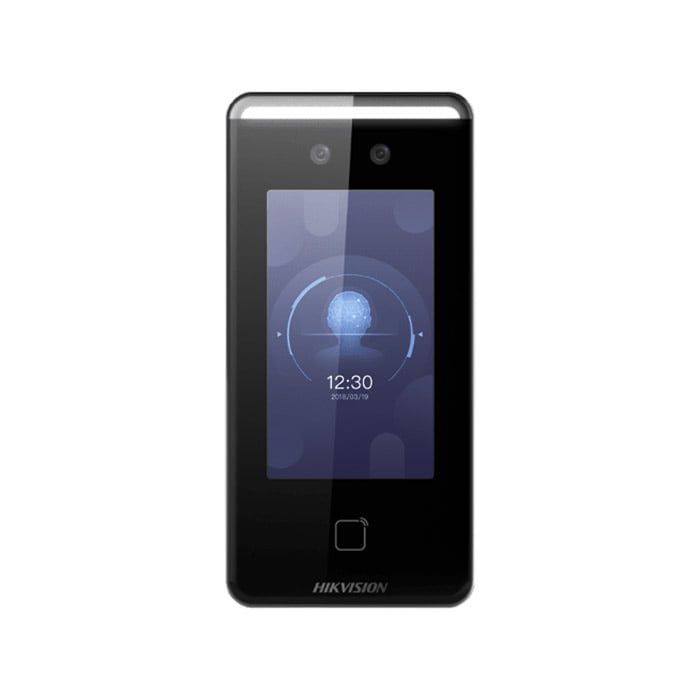

The DS-K1T341AM Hikvision is Face Recognition Terminal 4.3” Capacitive touch screen, 2 MP 2 Lens , Network Interface1
Hikvision DS-K1T341AM Specifications:
Value Series Face Access Terminal
- Forced mask-wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication, or attendance, will be failed.
- Face mask-wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication, or attendance, is valid.
- Max.3000 faces capacity and Max.3000 cards
- Supports TCP/IP
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens, Built-in Mi fare card reading module
- Supports ISUP5.0, ISAPI
- Configuration via the web client
- Face recognition. Distance: 0.3 m to 1.5 m
- Two-way audio with client software, indoor station, and main station
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%; IP65
Display
- Dimensions 4.3-inch
- Type LCD
- Operation Method Capacitive touch screen
Video
- Pixel 2 MP
- Lens × 2
Audio
- Tone Quality Noise suppression and echo cancellation
Network
- Wired Network10 M/100 M/1000 M self-adaptive
- Communication Protocol SDK; ISUP; ISAPI; HTTPS; Hik Central Pro Open API; Hik — Pro Connect Open API
Interface
- Network Interface1
- RS-4851
- Wiegand1
- Lock Output1
- Exit Button1
- Door Contact Input1
- Power Interface2-pin
Capacity
- Card Capacity3,000
- Face Capacity3,000
- Event Capacity150,000
Authentication
- Card Type Mi fare 1 card
- Card Reading Frequency13.56MHz
- Face Recognition Duration＜ 0.2 s
- Face Recognition Accuracy Rate＞99%
- Face Recognition Distance0.3 to 1.5 m
Function
- QR Code Recognition Support
- Face Anti-SpoofingSupport
- Audio Prompt Support
- Time Synchronization Support
General
- Button Touch Screen
- Power Supply Method2 pin connector
- Working Temperature,-30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity0 to 90% (No condensing)
- Dimensions172.5 mm × 83.2 mm × 22.7 mm (6.79″ × 3.27″ × 0.89″)
- Installation Surface mounting
- Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
- Platform Hik — Pro Connect and Hik Central Professional
