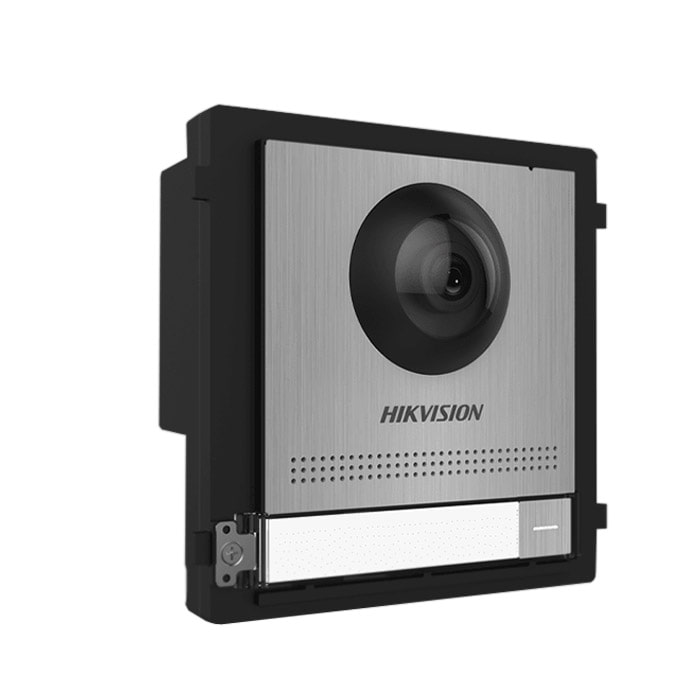

The DS-KD8003-IME2/S Hikvision Door Station Access control function, H.264 video compression, Tampering alarm
Hikvision DS-KD8003-IME2/S Specifications:
- Two-pin wire for power supply and network access
- Access control function
- Noise suppression and echo cancellation
- Low illumination
- Fisheye camera with IR supplement light
- Supports submodules’ access (max. 8)
- Name tag customization
- Easy to and extend
Display Parameters
- Size
- Operation Method
- Type
Video Parameters
- Supplement Light
- IR supplement
- Lens Low Illumination 2 MP HD IR Camera
- FOV Horizontal: 180° Vertical: 96°
Pixel
- Mainstream: 1920 × 1080
- Substream: 720 × 480
Audio Parameters
- Audio Quality Noise suppression and echo cancellation
Capacity
- Sub Door Station Capacity16
- Network Parameters
Communication Protocol
- TCP/IP, RTSP
- Wired Network Support
- Wi-Fi
- Bluetooth
- Device Interfaces
- Network Interface1
- Exit Button2
- Lock Control2
- Door Contact Input2
- Power Interface1
General
- Button
- Installation Flush mounting, surface mounting
Indicator
- Without package: 400 g
- With package: 610 g
- Protective LevelIP65
Working Temperature
- -40° C to +55° C(-40° F to 131° F)
- Working Humidity
- 10% to 95%
- Dimensions98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)
- Battery
Power Supply
- 24 VDC two-wire power supply (< 16 W)
- or 12 VDC independent power supply (< 20 W)
- Application Environment Outdoor
- Power Consumption4 W
- Language English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
