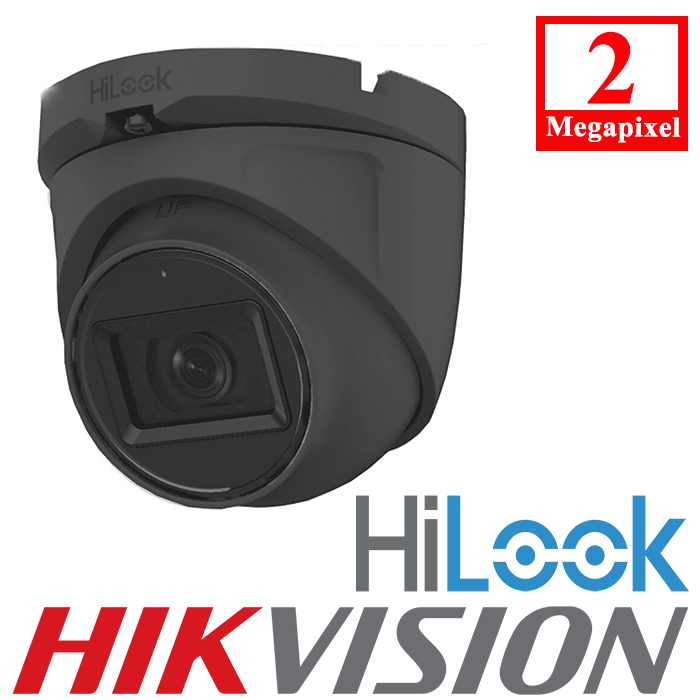

The HiLook THC-T120-Ms is a high resolution 2 mega-pixel analogue turret style CCTV camera that features powerful built-in infrared for images in complete darkness up to 30 metres away. The built in microphone supplies audio over the coax cable, enabling sound along with the camera image without the need for a separate cable..
The all metal turret style design of the THC-T120-Ms delivers glare free images in all weathers while still offering significant vandal resistance and the flexibility to be mounted either vertically or horizontally.
Universal Multi-format Camera
The HiLook THC-T120-MS has universal BNC video and DC power connectors and can be switched between several analogue video formats including TVI, CVI, AHD and CVBS allowing it to be used on most modern CCTV recorders.
Powerful Infrared LED’s for Night Vision
The THC-T120-Ms has a powerful smart LED infrared array which can illuminate objects up to 30 metres away allowing the camera to capture images and details in complete darkness.
Features:
- 2 MP, 1920 × 1080 resolution
- 3.6 mm fixed focal lens
- Smart IR, up to30 m IR distance
- Audio over coaxial cable, built-in mic
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP66 rated against dust and water ingress
Hilook By Hikvision THC-T120-MS-GREY Specifications:
Camera
- Image Sensor2 MP CMOS
- Signal System PAL/NTSC
Frame Rate
- TVI: 1080P@30fps, 1080P@25fps
- AHD: 1080P@30fps, 1080P@25fps
- CVI: 1080P@30fps, 1080P@25fps
- CVBS: PAL/NTSC
Resolution 1920 (H) × 1080 (V)
Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Min. Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Lens
- Lens 3.6 mm
- Horizontal Field Of View
- 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
- Lens MountM12
- Day & Night Auto/Colour/BW (Black and White)
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
General
- Power Supply 12 VDC ± 25%
- Power Consumption Max. 3.7 W
- Material Metal
- IR Range Up to 30 m
- Dimensions 82.6 mm × 90 mm × 79.37 mm (3.25″ × 3.54″ × 3.12″)
- Weight Approx. 289.5 g (0.64 lb.)
- Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Ingress Protection IP66
