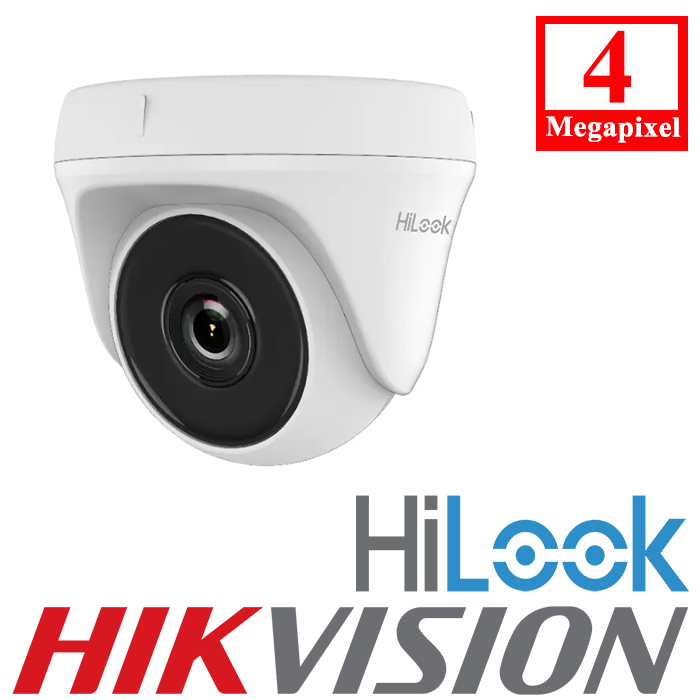

Hilook By Hikvision 4 MP 3.6mm Lens 20m IR THC-T140 HD Turret Camera

Camera

• Image Sensor 4 MP CMOS image sensor
• Max. Resolution 2560 (H) × 1440 (V)
• Min. Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time 1/25 (1/30) s to 1/50,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Signal System PAL/NTSC

Lens

• Lens Type Fixed Lens
• Focal Length & FOV100.2° (2.8 mm), 88° (3.6 mm), 56.9° (6 mm)
• Lens Mount M12


• Image Settings Brightness, Sharpness, DNR, Mirror, Smart IR
• Frame Rate PAL: 1080p@25fps, 4 MP@25fps,NTSC: 1080p@30fps, 4 MP@30fps
• Day/Night Mode Auto/Colour/BW (Black and White)
• Wide Dynamic Range (WDR)DWDR
• Image Enhancement BLC
• AGC High/Medium/Low/Off

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS

General

• Material Enclosure: Plastic ,Main body: Metal
• Dimension Ø 85.4 mm × 76.12 mm (Ø 3.38″ × 2.67″)
• Weight 170 g (0.37 lb.)
• Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
• Language English
• Power Supply 12 VDC ± 15%
• Consumption Max. 4 W
• IR Range Up to 20 m

Approval

• Protection IP66
