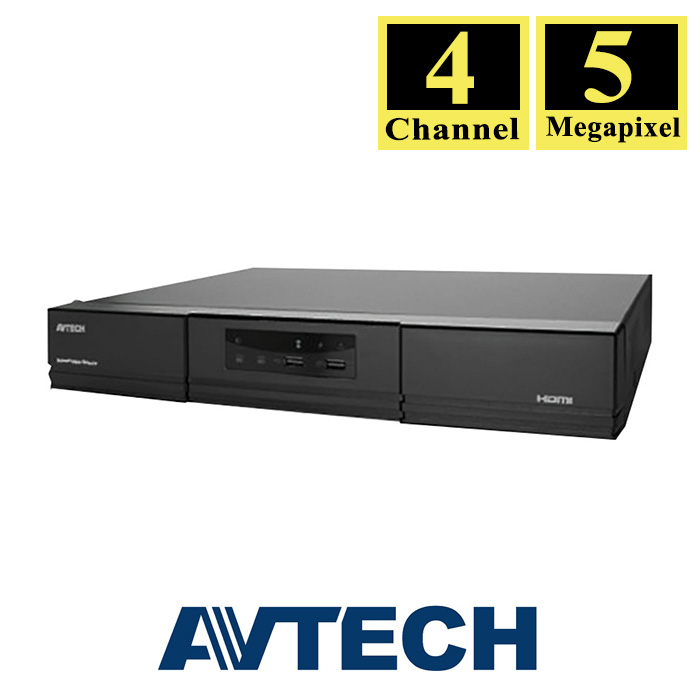

AVTECH 4 Ch 5 MP Pentabrid DVR DGD1005 (EZD5104)
- 4 channels XVR supports IP / Analog HD / TVI / CVI / 960H Pentabrid video input.
- Support 1 HDD up to 14TB or external disk array via eSATA interface
- H.265 Compression Technology for capacity & bandwith saving
- Free P2P Cloud EaZy Networking
- Push Status to send instant notifications for system events, such as video loss or HDD data removal.
AVTECH DGD1005 Specifications:
- Video Compression Format H.265
- Video Signal IP / TVI / CVI / Analog HD / 960H
- Video Input 4 pentabrid channels (IP / TVI / CVI / Analog HD / 960H), within which IP channels are up to 2 channels
- Video Input Interface Analog: Compositae video signal 1 Vp-p 75Ω BNC\
- IP: Ethernet, 10/100 Base-TVideo Output BNC, VGA, HDMI (4K2K display)
- Video Resolution Analog: 5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF
- IP: 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
- Max. Recording Rate Analog Mode: 24 IPS @ 5MP ; 32 IPS @ 4MP ; 60 IPS @ FHD (1080P)
- 2CH IP Mode: 30 IPS @ 2592 x 1944 (5MP) ; 48 IPS @ 2048 x 1536 (3MP) ; 60 IPS @ 1920 x 1080
- Recording Mode Manual / Timer / Motion / Alarm / Remote
- Playback Channel 4CH
- Quick Search Time / Motion / Alarm search mode
- Backup Device USB 2.0 drive / Network
- Regular Backup YES
- Audio Input 4 audio input
- Audio Output 1 audio output (Mono)
- RS485 YES
- Alarm input 4
- Alarm Output 1
- Hard Disk Storage 14TB SATA HDD x 1 or external disk array x 1 connected to the recorder via the eSATA interface
- SATA Interface YES
- eSATA Interface Expandable with a SATA to eSATA cable
- Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
- USB Mouse Control YES
- Motion Detection Area 16 × 12 grids per channel
- Motion Detection Sensitivity 3 adjustable parameters for accurate detection
- Event Notification Push Video / Push Status / FTP / E-Mail
- Event Pop-up & Preview YES
- Scenario Setup YES
- Picture Zoom 2X digital zoom
- PTZ Control YES
- Key Lock (Password Protection) YES
- User Level 4 user levels for different access privilege
- Video Loss Detection YES
- Camera Title Supports up to 25 letters
- Video Adjustable Hue / Saturation / Contrast / Brightness
- Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
- Daylight Saving YES
- Power Source (±10%) DC12V / 2A
- Operating Temperature 10ºC ~ 40ºC (50ºF ~104ºF)
- Operating Humidity 10% ~ 85%
- Dimensions (mm) 260(W) × 48(H) × 235.7(D)
- Net Weight (kg) 1.3
- Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
- Network Protocol TCP/IP, PPPOE, DHCP and DDNS
