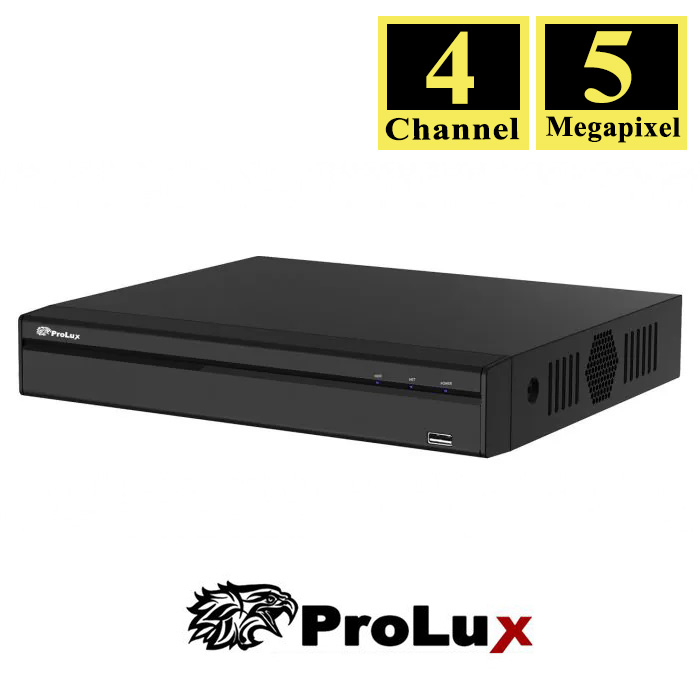

Prolux 4 Ch 5 MP HD PXD-5204AN-X-4P DVR

Prolux 4 Ch 5 MP HD PXD-5204AN-X-4P DVR

Features:

• H.265+/H.265 dual-stream video compression
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 6/12 channels IP camera inputs, each channel up to 6MP
• Supports SMD, human face detection, IVS
• All-channel support HDCVI PoC AT & AF camera

Prolux PXD-5204AN-X-4P DVR Specifications:

System

• Main Processor Embedded Processor
• Operating System Embedded LINUX

Video and Audio

• Analog Camera Input 4 Channel, BNC
• HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
• AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• CVBS Camera PAL/NTSC
• IP Camera Input 4+2/8+4 Channel, each channel up to 6MP
• Audio In/Out 1/1, RCA
• Two-way Talk Reuse audio in/out, RCA

Recording

• Compression H.265+/H.265/H.264+/H.264
• Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate Main stream:

• All channel 5M-N@10fps/4MN@15fps/1080P@15fps, 108
• 0N/720P/960H/D1/CIF@25/30fps

Sub stream:

• D1/CIF(1 fps–15 fps)
• Bit Rate 32 kbps–6144 kbps Per Channel
• Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval 1 min– 60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec
• Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
• Audio Sample Rate 8 KHz, 16 bit Per Channel
• Audio Bit Rate 64 kbps Per Channel

Display

• Interface 1 HDMI ,1 VGA
• Resolution 4CH: 1920 × 1080, 1280 × 1024, 1280 × 720
• 8CH:HDMI:1920 × 1080, 1280 × 1024, 1280 × 720
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display When IP extension mode not enabled:
• 4CH: 1/4
• OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

• Interface 1 RJ-45 Port (100M)
• Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
• PPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
• Max. User Access 128 users
• Smart Phone iPhone, iPad, Android
• Interoperability ONVIF 16.12, CGI Conformant

Video Detection and Alarm

• Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
• Alarm input N/A
• Relay Output N/A

Playback and Backup

• Playback 4CH: 1/4
• Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
• Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen,
• epeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode USB Device/Network

Storage

• Internal HDD 1 SATA Port, up to 10TB capacity
• eSATA N/A

Auxiliary Interface

• USB 2 USB 2.0
• RS232 N/A
• RS485 1 Port, for PTZ Control

Electrical

• Power Supply 4CH: 53V DC/1.13A
• 8CH: 53V DC/1.81A
• Power Consumption

(without HDD)

• 4CH: ≤5W
• 8CH: ≤8W

Construction

• Dimensions Mini 1U, 325 mm × 255 mm × 55 mm (12.8 ” x 10 ” x 2.2 “)
• Device with PFH101
• Rack Mount TrayL 483 mm x 281 mm x 56 mm (19.0 ” x 11.1 ” x 2.2 “)
• Net Weight: (without HDD)
• 4CH: 1.16 kg (2.56 lb)
• 8CH: 1.24 kg (2.73 lb)
• Gross Weight 4CH: 2.09 kg (4.60 lb)
• CH: 2.28 kg (5.03 lb)

Installation Desktop installation

Environmental

• Operating Conditions -10 °C to +55 °C (+14 °F to +131 °F), 10%RH–90%RH
• Storage Conditions -20 °C to +70 °C (-4 °F to +158 °F), 0%RH–90%RH

Third-party Support

• Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
• anyo, Sony, Videotec, Vivotek, and more

Certifications

• Certifications FCC: Part 15 Subpart B
• CE: CE-LVD: EN 60950-1/IEC 60950-1
• CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
