Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I/XVR7000-4KL-I featuring full-channel SMD Plus to benefit customers from AI upgrade. The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
Features:

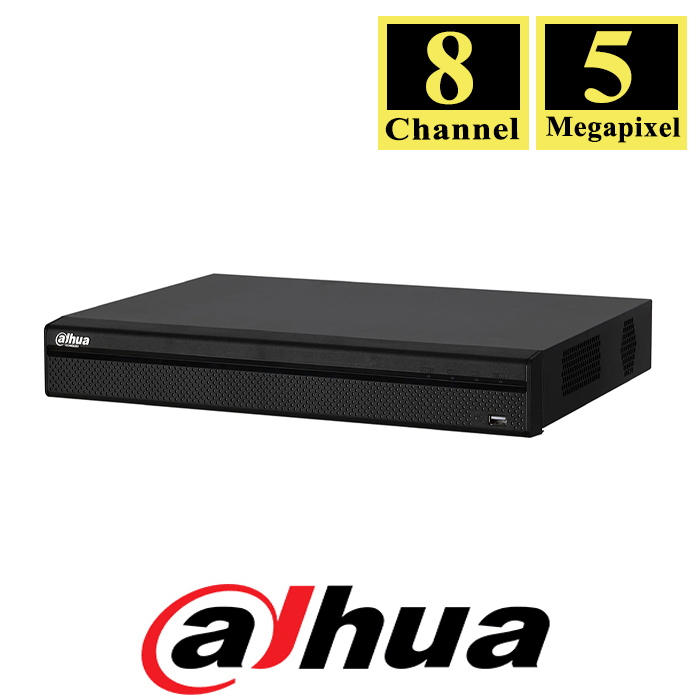

Dahua DH-XVR5108H-I Specifications:
System
- Main Processor Embedded Processor
- Operating System Embedded LINUX
SMD Plus
SMD Plus 1. AI by DVR: Motion detection alarm for human and vehicle. Filter misinformation such as leaves and light.
Video and Audio
- Analog Camera Input 8 Channel, BNC
- HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
- AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
- TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps\CVBS Camera PAL/NTSC\IP Camera Input 8+4 Channel, \ach channel up to 6MP\Audio In/Out 1/1, RCA\Two-way Talk Reuse audio in/out, RCA
Recording
- Compression H.265+/H.265/H.264+/H.264
- Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF\
Record Rate Main stream:
- All channel 5M-N(1fps–10fps); 4M-N/1080P(1fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30fps)
- Sub stream: D1/CIF(1fps–15fps)
- Bit Rate 32Kbps–6144Kbps Per Channel
Display
Interface 1 HDMI ,1 VGA
Resolution HDMI:
- 8CH: 1920×1080, 1280×1024, 1280×720
- VGA: 1920×1080, 1280×1024, 1280×720
- Multi-screen Display When IP extension mode not enabled:
- 8CH: 1/4/8/9
- When IP extension mode enabled:
- 8CH: 1/4/8/9/16
- SD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
- Interface 8CH: 1 RJ-45 Port (100M)
- Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS,
- P Filter, PPPoE, DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.)
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android
- Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
- Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
- Alarm input N/ARelay Output N/A
Playback and Backup
- Playback 8CH: 1/4/9
- Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode USB Device/Network
Storage
- Internal HDD 1 SATA Port, up to 10TB capacity
- eSATA N/A
Auxiliary Interface
- USB 8CH:2 USB 2.0
- 16CH:1 USB 2.0 , 1 USB 3.0
- RS232 N/A
- RS485 1 Port, for PTZ Control
Electrical
Power Supply DC 12V/2A
Power Consumption
(without HDD): 8CH: <10W
Construction
- Dimensions Mini 1U, 325mm×255mm×55mm (12.8″ x 10″ x 2.2″)
- Gross Weight 8CH: 1.9kg (4.2lb)
- Installation Desktop installation
Environmental
- Operating Conditions -10°C to +55°C (+14°F to +131°F), 10%–90% RH
- Storage Conditions -20°C to +70°C (-4°F to +158°F) , 0–90% RH
Third-party Support
Third-party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, elco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
- Certifications FCC: Part 15 Subpart B
- CE: CE-LVD: EN 60950-1/IEC 60950-1
- CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
