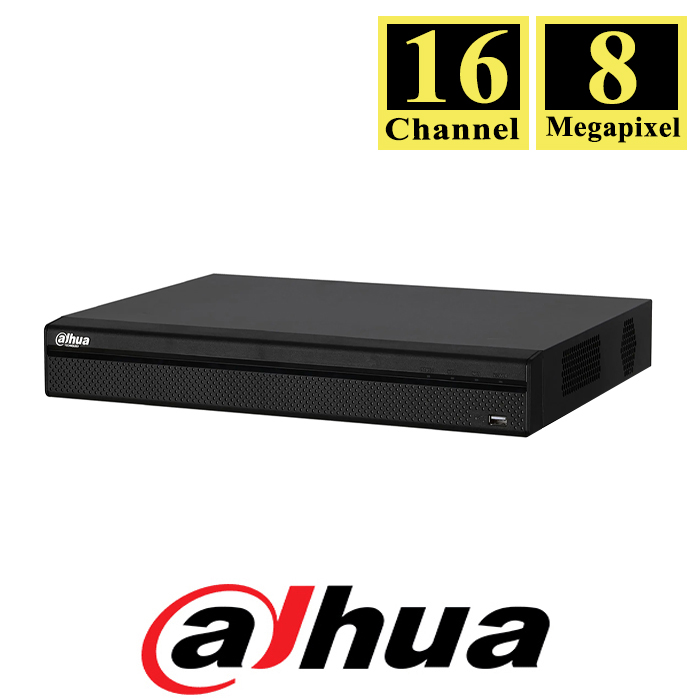

Dahua DH-XVR5216AN-4KL-I2 16 Ch Penta-brid 8MP Wiz Sense DVR
Features:
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
- Up to 2 channels video stream ( analog channel ) Perimeter Protection
- Up to 16 channels video stream ( analog channel ) SMD Plus
- Up to 2 channels video stream (analog channel ) human face recognition
Dahua DH-XVR5216AN-4KL-I2 Specifications:
System
- Main Processor Embedded Processor
- Operating System Embedded LINUX
- Perimeter Protection
- Performance 2 channels, 10 IVS for each channel
- Object classification Human/Vehicle secondary recognition for tripwire and intrusion
- AI Search Search by target classification (Human, Vehicle)
SMD Plus
- Performance 16 channels
- AI Search Search by target classification (Human, Vehicle)
Video and Audio
- Analog Camera Input 16 channels, BNC
- HDCVI Camera Input 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps,720P@25/30fps
- AHD Camera Input 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
- TVI Camera Input 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
- CVBS Camera Input PAL/NTSC
- IP Camera Input 16+16 channels, each channel up to 8MP
- Audio In/Out 1/1, RCA
- Two-way Talk Reuse audio in/out, RCA
Recording
- Compression AI Coding/H.265+/H.265/H.264+/H.264
- Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
- Record Rate Main stream: All channel 4K(1fps–7fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps);
- 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps);
- Sub steram:960H(1fps–15fps);
- D1/CIF(1fps–25/30fps)
- Bit Rate 32 Kbps–6144 Kbps Per Channel
- Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Record Interval 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
- Audio Compression G.711A, G.711U, PCM
- Audio Sample Rate 8 KHz, 16 bit Per Channel
- Audio Bit Rate 64 Kbps Per Channel
Display
- Interface 1 HDMI ,1 VGA
- Resolution HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
- VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
- When IP extension mode enabled: 1/4/8/9/16/25/36
- OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
- Interface 1 RJ-45 Port (1000 MB)
- Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android
- Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
- Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
- Alarm input N/A
- Relay Output N/A
Playback and Backup
- Playback 1/4/9/16
- Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
- Internal HDD 2 SATA Ports, up to 10TB capacity for each disk
- eSATA N/A
Auxiliary Interface
- USB 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
- RS485 1 Port, for PTZ Control
- RS232 N/A
Environmental
- Operating Conditions -10°C to +55°C (+14°F to +131°F), 0–90% RH
- Storage Conditions -20°C to +70°C (-4°F to +158°F) , 0–90% RH
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
- Certifications FCC: Part 15 Subpart B
- CE: CE-LVD: EN 60950-1/IEC 60950-1
- CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
