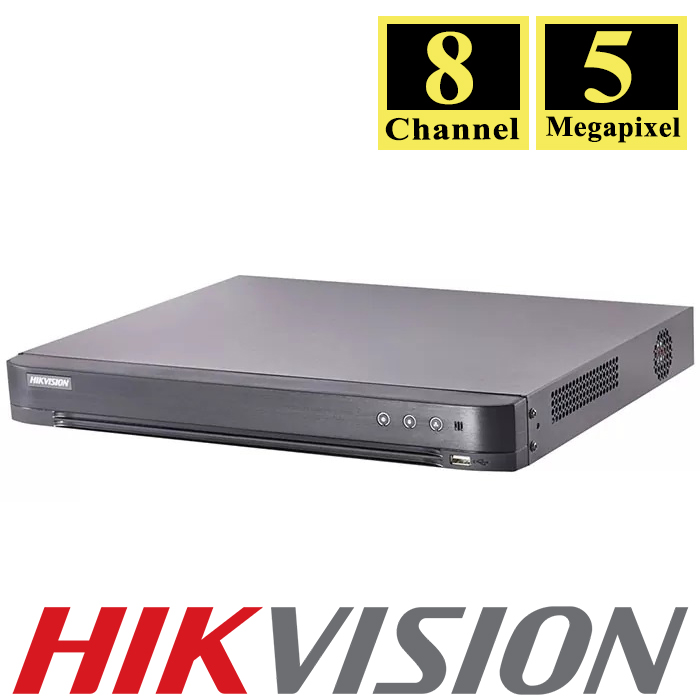

Hikvision 8 Ch 5 MP DVR DS-7208HUHI-K2 DVR

The Hikvision 8 Channel 5 MP DVR DS-7208HUHI-K2 is a powerful digital video recorder designed for professional surveillance applications. With its advanced features and high-resolution recording capabilities, this DVR provides reliable and comprehensive security monitoring. In this description, we will highlight the key features and benefits of the Hikvision DS-7208HUHI-K2 DVR.

The DS-7208HUHI-K2 DVR supports up to 8 channels, allowing you to connect multiple cameras for extensive surveillance coverage. It is compatible with a wide range of Hikvision analog and HD-TVI cameras, providing flexibility in camera selection.

With its 5 MP resolution, this DVR captures detailed and crisp video footage, ensuring accurate monitoring and identification of events. It supports real-time recording at up to 1080p resolution, delivering high-quality video playback.

Equipped with advanced H.265+ video compression technology, the DS-7208HUHI-K2 DVR maximises storage efficiency without compromising video quality. It effectively reduces bandwidth and storage requirements, enabling longer recording times.

The DVR offers multiple recording modes, including manual, scheduled, and motion detection, allowing you to customise recording options based on your surveillance needs. It supports event-triggered recording, ensuring important events are captured.

Featuring HDMI and VGA outputs, the DS-7208HUHI-K2 DVR provides flexible display options, allowing you to connect it to a monitor or TV for live viewing and playback. It also supports remote access, enabling you to monitor your surveillance system from anywhere using a mobile device or computer.

The user-friendly interface of the DS-7208HUHI-K2 DVR makes it easy to navigate and configure settings. It offers various playback modes, including simultaneous playback and smart search, to quickly retrieve specific video footage.

Features:

• 8 channels and 2 HDDs 1U DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 16 network cameras can be connected

Hikvision DVR DS-7208HUHI-K2 Specifications:

Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame RateMain stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N),
• Video Bit Rate32 Kbps to 10 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps

Video And Audio

• IP Video Input8-ch (up to 16-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input8-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback8-ch
• HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
• VGA/HDMI OutputVGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),

Network

• Remote Connections64
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

• SATA2 SATA interfaces
• CapacityUp to 10 TB capacity for each disk
• Alarm In/Out8/4
• USB InterfaceFront panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0
• Serial InterfaceRS-485 (half-duplex)

General

• Power Supply12 VDC
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimensions (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Consumption (Without HDD)≤ 20 W
• Weights (Without HDD)≤ 1.78 kg (3.9 lb)
