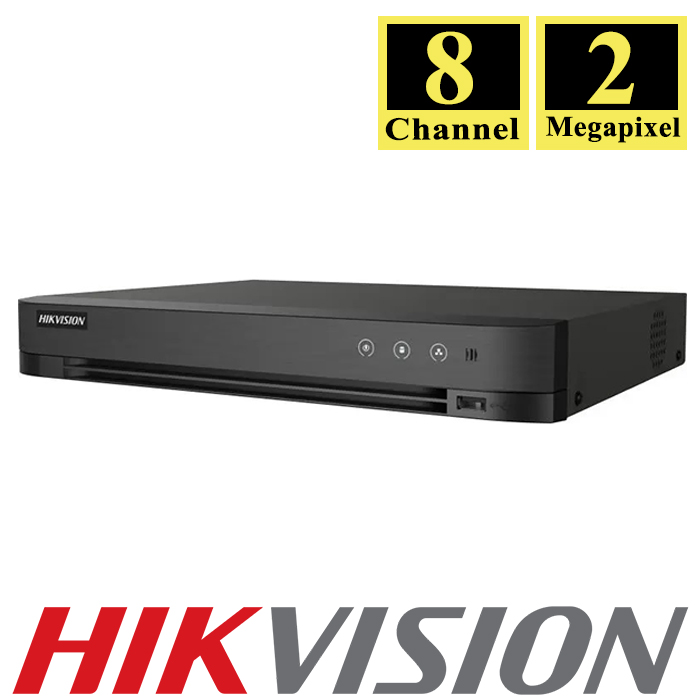

The Hikvision 8 Channel 2 MP DVR iDS-7208HQHI-M1/S is a high-performance digital video recorder designed to meet the surveillance needs of various environments. With its advanced features and reliable performance, this DVR offers exceptional video recording and playback capabilities. In this 250-word SEO description, we’ll highlight the key features and benefits of the Hikvision iDS-7208HQHI-M1/S DVR.
The Hikvision 8 Channel 2 MP DVR iDS-7208HQHI-M1/S DVR supports up to 8 channels of video input, allowing you to connect multiple cameras for comprehensive surveillance coverage. It is compatible with a wide range of Hikvision analog and HD-TVI cameras, providing flexibility in camera selection.
With its 2 MP resolution, this DVR captures clear and detailed video footage, ensuring accurate monitoring and identification of events. It supports real-time recording at up to 1080p resolution, delivering high-quality video playback.
The iDS-7208HQHI-M1/S offers advanced video compression technology, such as H.264+, to optimise storage space without compromising video quality. This enables longer recording times and reduces storage costs.
Featuring various recording modes, including manual, scheduled, and motion detection, this DVR allows for customised recording options to suit different surveillance scenarios. It also supports event-triggered recording, ensuring that critical events are captured.
With its HDMI and VGA outputs, the iDS-7208HQHI-M1/S DVR provides flexible display options, allowing you to connect it to a monitor or TV for live viewing and playback. Additionally, it supports remote access, enabling you to view your surveillance footage from anywhere using a mobile device or computer.
The DVR features intuitive and user-friendly interfaces, making it easy to navigate and configure settings. It offers multiple playback modes, including simultaneous playback and smart search, to quickly locate specific video clips.
Features:
- 8 channels and 1 HDD 1U AcuSense DVR
- False alarm reduction through human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 network cameras can be connected.
Hikvision iDS-7208HQHI-M1/S Specification:
Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
- Human/Vehicle Analysis Up to 4-ch
Facial Detection
- Facial Detection And Capture Face picture detection, face picture search
Recording
- Video Compression Â
- Encoding Resolution
- When 1080p Lite mode is not enabled:
- 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
- When 1080p Lite mode is enabled:
- 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate
Main stream:
- When 1080p Lite mode not enabled:
- For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
- For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
- For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
- For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- When 1080p Lite mode enabled:
- 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-Stream Support
- Stream Type Video, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
Video And Audio
- IP Video Input
- 2-ch (up to 10-ch)
- Enhanced IP mode on:
- 4-ch (up to 12-ch), each up to 4 Mbps
- Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
- 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
- HDMI/VGA simultaneous output
- CVBS Input PAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback 8-ch
- HDTVI Input 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ),8-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network
- Total Bandwidth96 Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF
- Remote Connection64
- Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
- SATA1 SATA interface
- Capacity Up to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface 2 × USB 2.0
- Alarm In/OutN/A
General
- Power Supply12 VDC
- Consumption≤ 18 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight≤ 1.78 kg (3.9 lb)
