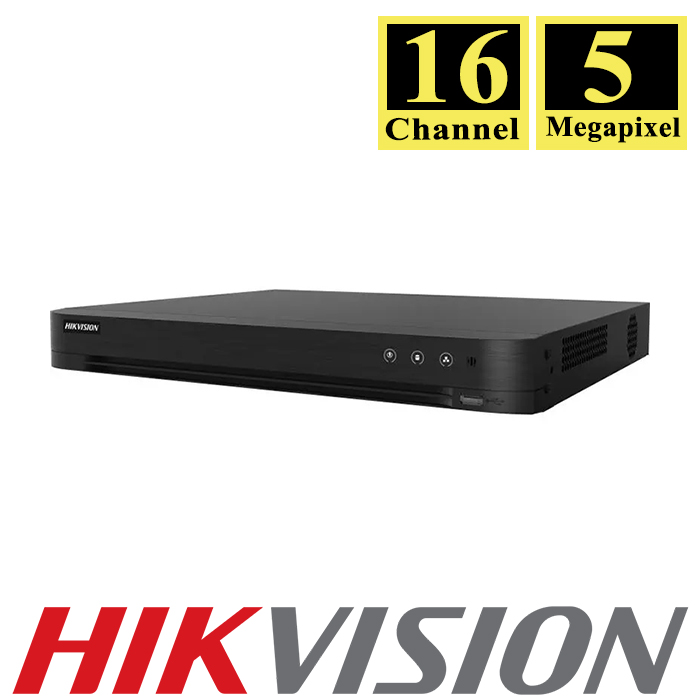

The Hikvision 16 Channel 5 MP AcuSense DVR iDS-7216HUHI-M2/S is a powerful digital video recorder designed for advanced video surveillance applications. This DVR combines high-resolution recording capabilities with intelligent video analytics to provide enhanced security monitoring. In this description, we will highlight the key features and benefits of the Hikvision iDS-7216HUHI-M2/S DVR.
The iDS-7216HUHI-M2/S DVR supports up to 16 channels, allowing you to connect multiple cameras for comprehensive surveillance coverage. It is compatible with a wide range of Hikvision analog, HD-TVI, and IP cameras, providing flexibility in camera selection.
With its 5 MP resolution, this DVR captures detailed and crisp video footage, ensuring accurate monitoring and identification of events. It supports real-time recording at up to 1080p resolution, delivering high-quality video playback.
The AcuSense technology integrated into the iDS-7216HUHI-M2/S DVR enables intelligent video analytics. It can accurately detect human and vehicle targets in real-time, reducing false alarms caused by irrelevant objects. This enhances the efficiency and effectiveness of the surveillance system.
Equipped with H.265+ video compression technology, the DVR maximises storage efficiency without compromising video quality. It effectively reduces bandwidth and storage requirements, allowing for longer recording times.
The DVR offers multiple recording modes, including manual, scheduled, and motion detection, allowing you to customise recording options based on your surveillance needs. It also supports event-triggered recording, ensuring important events are captured.
Featuring HDMI and VGA outputs, the iDS-7216HUHI-M2/S DVR provides flexible display options, allowing you to connect it to a monitor or TV for live viewing and playback. It also supports remote access, enabling you to monitor your surveillance system from anywhere using a mobile device or computer.
The user-friendly interface of the iDS-7216HUHI-M2/S DVR makes it easy to navigate and configure settings. It offers various playback modes, including simultaneous playback and smart search, to quickly retrieve specific video footage.
Features:
- Deep learning-based motion detection 2.0 for all analog channels
- Deep learning-based perimeter protection
- Efficient H.265 pro+ compression technology
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 32-ch IP camera inputs (up to 8 MP)
Hikvision  iDS-7216HUHI-M2/S Specifications:
Motion Detection 2.0
- Human/Vehicle Analysis
- Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
- it can classify human and vehicle, and extremely reduce false alarms caused by objects
- like leaves and lights;
- Quick search by object or event type is supported;
Perimeter Protection
- Human/Vehicle AnalysisUp to 4-ch
Facial Detection
- Facial Detection And CaptureFace picture detection, face picture search
Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-Stream Support
- Stream Type Video, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
Video And Audio
- IP Video Input
- 8-ch (up to 24-ch)
- Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps
- Up to 8 MP resolution
- Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
- 16-ch
- BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
- 1-ch, 4K (3840 × 2160)/30Hz,
- 2K (2560 × 1440)/60Hz,
- 1920 × 1080/60Hz,
- 1280 × 1024/60Hz,
- 1280 × 720/60Hz
- HDMI/VGA simultaneous output
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback 16-ch
- HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
Audio Input
- 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ)
- 16-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Network
- Total Bandwidth 128Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF
- Remote Connection 128
- Network Interface
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-FiWi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
- SATA 2 SATA interfaces
- Capacity Up to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
USB Interface
- Front panel: 1 × USB 2.0
- Rear panel: 1 × USB 3.0
- Alarm In/Out N/A (optional to support)
General
- Power Supply 12 VDC, 5 A
- Consumption ≤ 19 W
- Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- Weight≤ 2.1 kg (4.6 lb)
