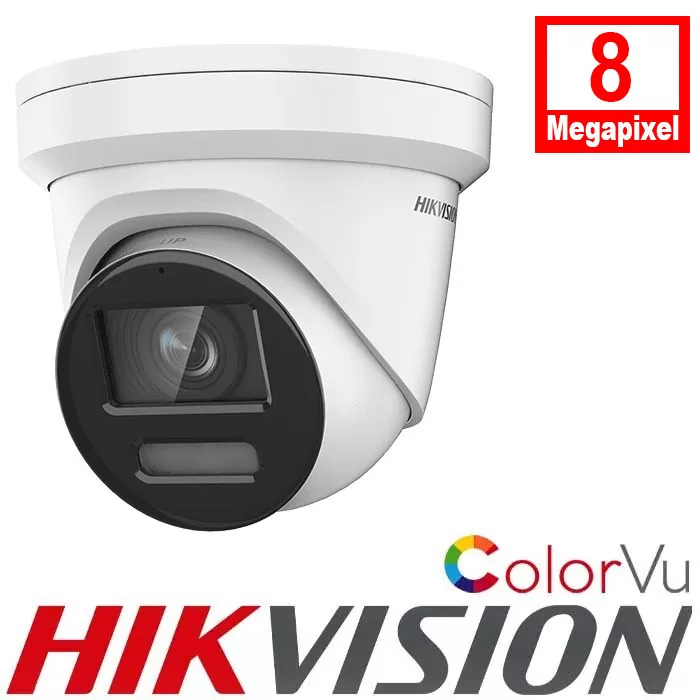

Hikvision DS-2CD2387G2-LU 8MP Fixed Lens ColorVu Turret Camera

This is DS-2CD2387G2-LU Hikvision AcuSense 8MP fixed lens ColorVu turret camera with the built-in mic.

Hikvision DS-2CD2387G2-LU Specifications:

• Image Sensor1/1.2″ Progressive Scan CMOS
• Max. Resolution3840 × 2160
• Min. Illumination Colour：0.0005 Lux @ (F1.0, AGC ON)
• Shutter Speed1/3 s to 1/100,000 s
• Day & Night24/7 Colour
• 4 analytics
• Face Capture
• Smart motion detection
• IP67 weatherproof
• 130dB wide dynamic range
• Built-in microphone
• Supports onboard storage (up to 256 GB)
• 12V DC & POE (802.3af)

Camera Lens

• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
• 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
• Lens MountM16
• Iris TypeFixed
• ApertureF1.0

DORI

• DORI 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m
• 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator

• Supplement Light Type White Light
• Supplement Light range up to 30 m
• Smart Supplement Light: Yes

Video

• Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720
• 60 Hz:: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream
• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream
• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression Mainstream: H.265/H.264/H.264+/H.265+

Audio

• Environment Noise Filtering-U: Yes
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320
• Kbps (MP3)/16 to 64 Kbps (AAC)

Network

• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• User/Host Up to 32 users. 3 user levels: administrator, operator, and user
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface
• Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client VMS-4200, Hik-Connect, Hik-Central
• Web Browser
  Plug-in required live view: IE 10, IE 11


• Wide Dynamic Range (WDR)130 dB
• Privacy Mask8 programmable polygon privacy masks, mask colour, or mosaically configurable
• Day/Night Switch Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DN
• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
• Built-In Microphone-LU: Yes
