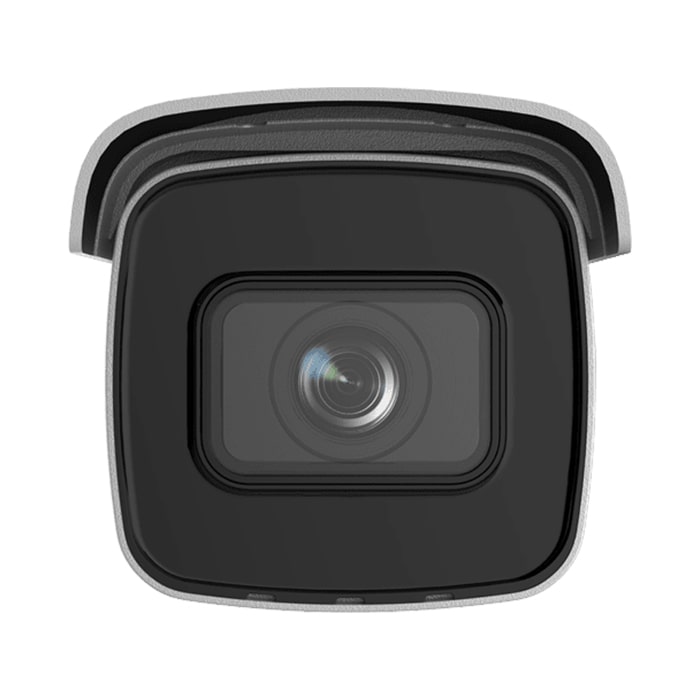

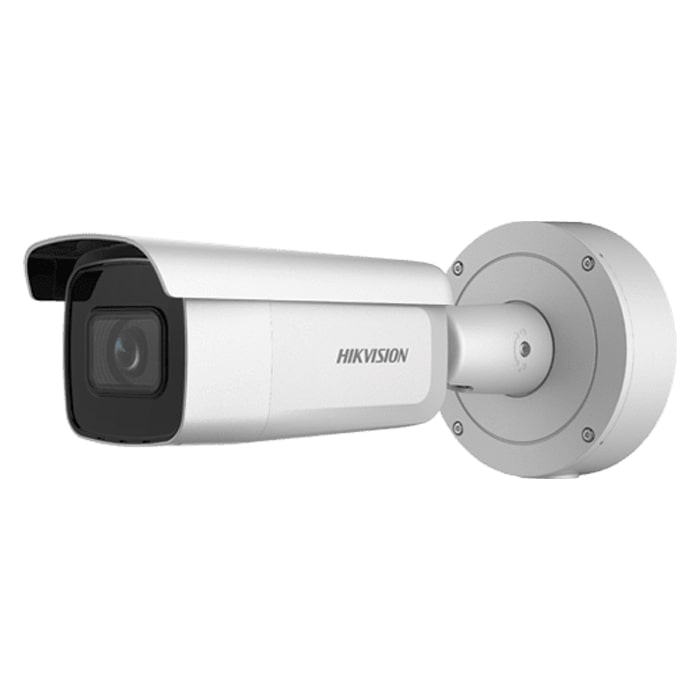

Hikvision DS-2CD2686G2-IZS 8MP 2.8-12 mm IP Bullet Camera 50M IR

Hikvision DS-2CD2686G2-IZS AcuSense 8MP motorised varifocal Dark fighter bullet camera with IR

Hikvision DS-2CD2686G2-IZS Specifications:

• 8MP high resolution
• 2.8-12 mm motorised varifocal lens
• Powered by Darkfighter for Ultra Low Light
• Triple stream
• Up to 50 m IR distance
• H.265+ compression
• 4 analytics
• Face Capture
• Smart motion detection
• IP66 weatherproof
• 120dB wide dynamic range
• Supports on board storage (up to 256 GB)
• 12V DC & POE (802.3at)

Camera

• Image Sensor1/1.8″ Progressive Scan CMOS
• Max. Resolution3840 × 2160
• Min. Illumination Colour: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type Varifocal lens, motorised lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52°
• Lens MountØ14
• Iris TypeFixed
• ApertureF1.4

DORI

DORI

• 2.8 to 12 mm:
• Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m
• Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m

Illuminator

• Supplement Light Type IR
• Supplement Light Range Up to 60 m
• Smart Supplement Light Yes
• IR Wavelength850 nm

Video

Main Stream

• 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (3840 × 2160)
• 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream
• Target Cropping Yes

Audio

• Audio Type Mono sound
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View Up to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host Up to 32 users. 3 user levels: administrator, operator and user
• Security Passworded protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  Micro SD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central


• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in micro SD slot, up to 256 GB
• Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key Yes

Event

• Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
• Scene change detection
• Linkage Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Deep Learning Function

• Face Capture Yes

General

Power

• 12 VDC, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection
• POE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W

• DimensionØ144.1 mm × 345.7 mm (Ø5.7″ × 13.6″)
• Package Dimension385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
• Approx. 1430 g (3.2 lb.)
• With Package Weight Approx. 2490 g (5.5 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions,-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
