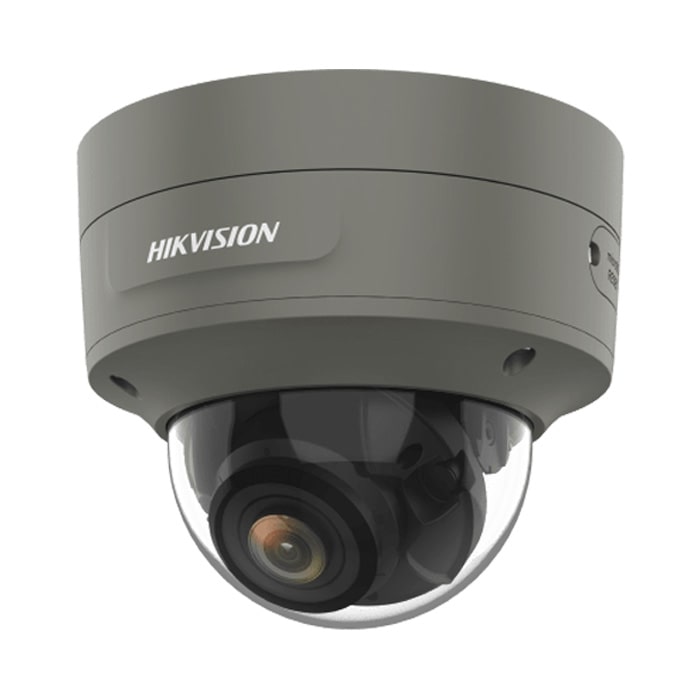

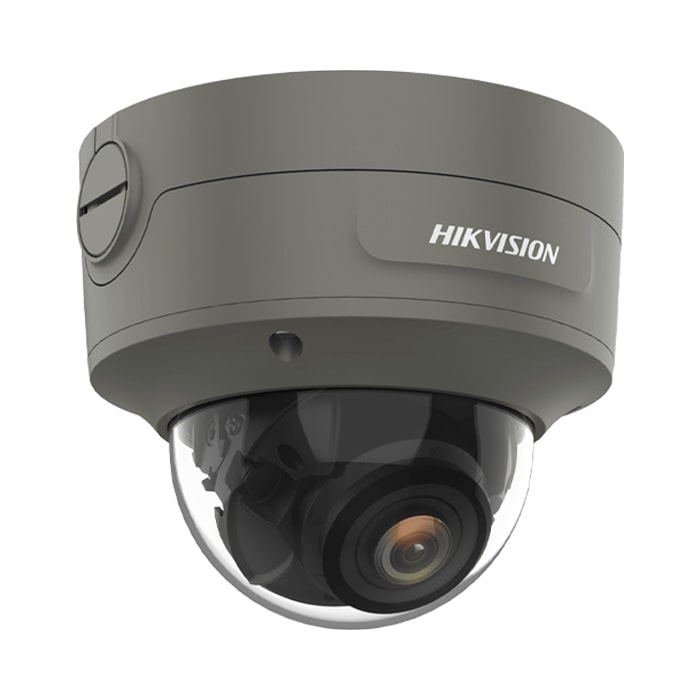

Hikvision DS-2CD2746G2-IZS/GREY 4MP 2.8-12 mm Lens 40M IR IP Dome Camera

Hikvision DS-2CD2746G2-IZS/GREY AcuSense 4MP motorised varifocal Dark fighter bullet camera with IR, Security Passworded protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface.

Hikvision DS-2CD2746G2-IZS/GREY Specifications:

• 4MP high resolution
• 2.8-12 mm motorised varifocal lens
• Powered by Darkfighter for Ultra-Low Light
• Triple stream
• Up to 40 m IR distance
• H.265+ compression
• 4 analytics
• IP66 weatherproof
• 120dB wide dynamic range
• Supports onboard storage (up to 256 GB)
• 12V DC & POE (802.3af)

General

• Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug
• POE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
• DimensionØ153.5 mm× 133.1 mm (Ø6.0″ × 5.2″)
• Package Dimension244 mm × 174 mm × 173 mm (9.6″ × 6.9″ × 6.8″)
• Approx. 845 g (1.9 lb.)
• With Package Weight Approx. 1714 g (3.8 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions,-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Camera

• Image Sensor1/3″ Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. Illumination Colour: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate 0° to 355°

Lens

• Lens Type Varifocal lens, motor-driven lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
• Lens MountØ14
• Iris TypeFixed
• ApertureF1.4

Illuminator

• Supplement Light Type IR
• Supplement Light Range Up to 40 m
• Smart Supplement Light Yes
• IR Wavelength Yes

Video

• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for mainstream and sub-stream

Audio

• Audio Type Mono sound
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View Up to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host Up to 32 users. 3 user levels: administrator, operator, and user
• Network Storage Micro SD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with a high-end Hikvision memory card, memory card encryption and health detection are supported
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Audio 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key Yes

Event

• Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Linkage Upload to NAS/memory card/FTP, notify surveillance centre, trigger recording, trigger capture, send an email, audible warning
• Smart Event

Deep Learning Function

• Face Capture Yes

Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
• CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
• LOA (IEC/EN 60950-1)
• Environment CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• ProtectionIP66 (IEC 60529-2013), IK10(IEC 62262:2002)
