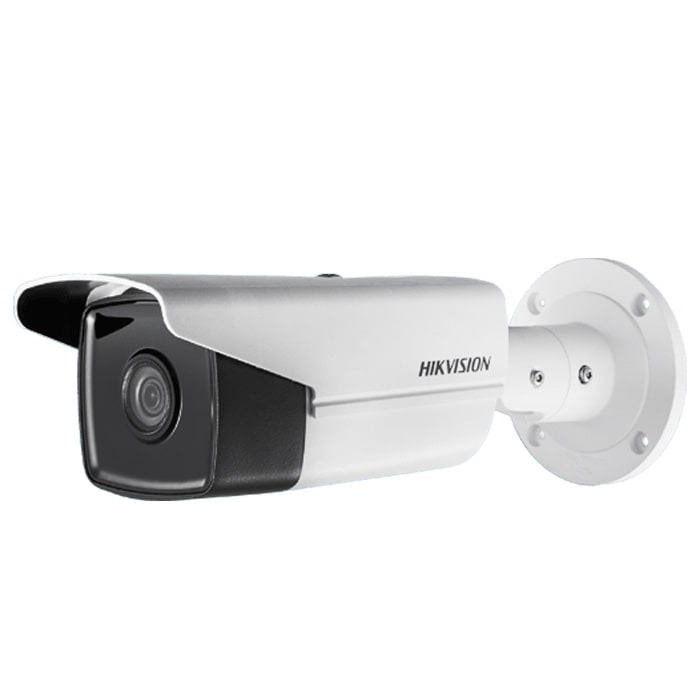

Hikvision DS-2CD2T45FWD-I5 4MP Dark fighter 50m IR Network IP Bullet Camera

Hikvision DS-2CD2T45FWD-I5 4MP fixed lens bullet camera with IR, Web Browser Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:, Chrome 45.0+, Firefox 52.0+.

Hikvision DS-2CD2T45FWD-I5  Specifications:

• 4MP high resolution
• 4 mm fixed lens
• Triple stream
• Powered by Darkfighter for Ultra-Low Light
• Up to 50 m IR distance
• 4 analytics
• 265+ compression
• Supports onboard storage (up to 128 GB)
• IP67 weatherproof
• 120dB wide dynamic range
• 12V DC & POE (802.3af)

General

• Firmware VersionV5.5.80
• General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial plug power, POE (802.3af, class 3)
• Power Consumption And CurrentI5:,12 VDC, 0.7 A, max. 7.5 W, POE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 9.5 W,I8:,12 VDC, 1 A, max: 11.5 W, POE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W
• Camera Dimension Camera: Φ104.8 mm × 299.7 mm (Φ4.1″ × 11.8″), Package: 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
• Camera Weight Camera: 1200 g (2.7 lb.)
• Approval
• ProtectionIP67

Camera

• Image Sensor1/2.5″ Progressive Scan CMOS
• Min. Illumination Colour: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range120dB
• Day & Night IR Cut Filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 100°, rotate 0° to 360°

Lens

• Focus Fixed
• Lens Type2.8, 4, 6, 8, 12 mm
• FOV2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°,4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°,6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°,8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°,12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
• ApertureF1.6
• Lens MountM12
• Aperture Type Fixed

Illuminator

• IR RangeI5: Up to 50 m,I8: Up to 80 m
• Wavelength850nm
• Video
• Max. Resolution2688 × 1520
• Main Stream
• Sub Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
• Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 Type Main Profile/High Profile
• H.265 Type Main Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Scalable Video Coding (SVC)H.264 and H.265 encoding support
• Region Of Interest (ROI)Support 1 fixed region for mainstream and sub-stream

Network

• Simultaneous Live View Up to 6 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• User/Host Up to 32 users,3 levels: Administrator, Operator, and User
• Network Storage Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


• Day/Night Switch Day/Night/Auto/Schedule
• Target Cropping No
• DNR3D DNR
• Image Enhancement BLC/3D DNR/HLC
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser

Interface

• On-Board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Hardware Reset: Yes

Event

• Smart Event Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
• Face Detection Yes
• Exception Detection Scene change detection
