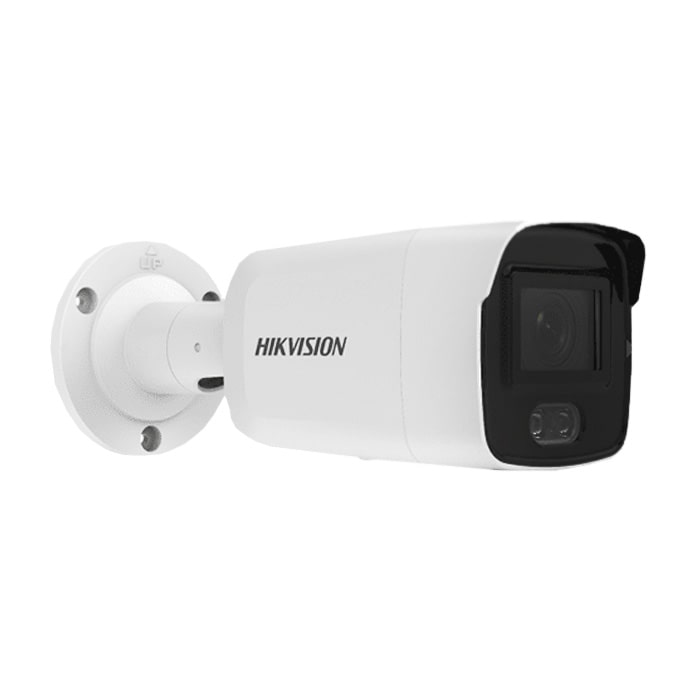

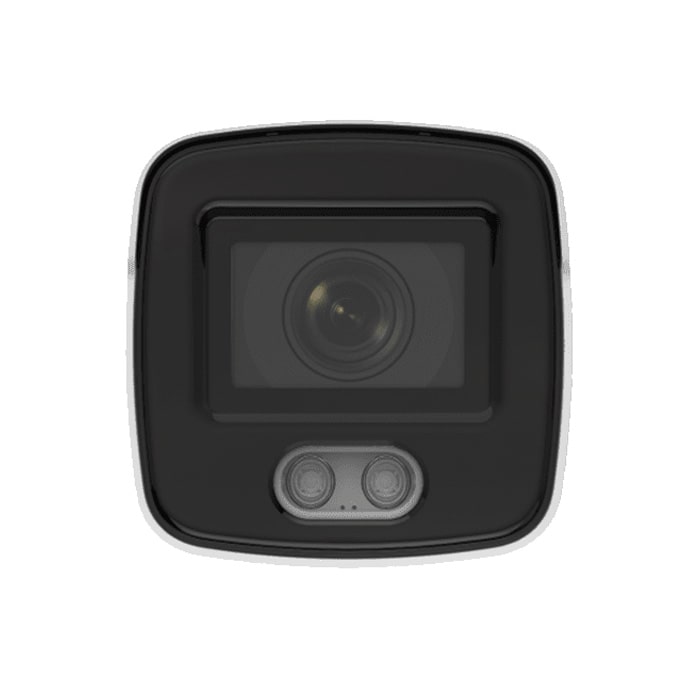

Hikvision AcuSense DS-2CD2047G2-LU 4MP fixed lens ColorVu turret camera with audio, Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing), General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter.
Hikvision DS-2CD2047G2-LU Specifications:
- 4MP high resolution
- 2.8 mm fixed lens
- Full-time colour
- Triple stream
- Up to 40 m White light
- H.265+ compression
- 4 analytics
- Face Capture
- Smart motion detection
- IP67 weatherproof
- 130dB wide dynamic range
- Built-in microphone
- Supports onboard storage (up to 256 GB)
- 12V DC & POE (802.3af)
General
- 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug
- POE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
- Dimension215.2 mm × 78.8 mm × 78.6 mm (8.5″ × 3.1″ × 3.1″)
- Package Dimension315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
- Approx. 695 g (1.5 lb.)
- With Package Weight Approx. 1090 g (2.4 lb.)
- Startup And Operating Conditions,-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution 2688 × 1520
- Min. Illumination Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time1/3 s to 1/100,000 s
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
- Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
- 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
- 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
- 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
- Lens MountM16
- Iris TypeFixed
- ApertureF1.0
Depth Of Field
- 2.8 mm, 2.5 m to ∞
- 4 mm, 3.5 m to ∞
- 6 mm, 7.5 m to ∞
DORI
- 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
- 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
- 6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
Illuminator
- Supplement Light Type White Light
- Supplement Light Range 40 m
- Smart Supplement Light Yes
Main Stream
- 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Mainstream: H.265/H.264/H.265+/H.264+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for mainstream and sub-stream
Audio
- Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering-U: Yes
Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View Up to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host Up to 32 users. 3 user levels: administrator, operator, and user
- Security Passworded protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface
Network Storage
- Micro SD/SDHC/SDXC card (256 GB) local storage, NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Together with a high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch Yes
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch Auto, Schedule
- Wide Dynamic Range (WDR)130 dB
- SNR≥ 52 dB
- Image Enhancement BLC, HLC, 3D DNR
Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
- Built-In Microphone-U: Yes
- Reset Key Yes
Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
- Line crossing detection, intrusion detection, region entrance detection, region exiting detection
- Scene change detection
- Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
- Face Capture Yes
EMC
- FCC SDoC (47 CFR Part 15, Subpart B);
- CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
- RCM (AS/NZS CISPR 32: 2015);
- IC VOC (ICES-003: Issue 6, 2016);
- KC (KN 32: 2015, KN 35: 2015)
Safety
- UL (UL 60950-1);
- CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);
- CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);
- LOA (IEC/EN 60950-1)
- Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
