Hikvision DS-2CD2347G2-LSU/SL(2.8MM)(C) 2.8mm Lens 4MP 30m IR IP Camera

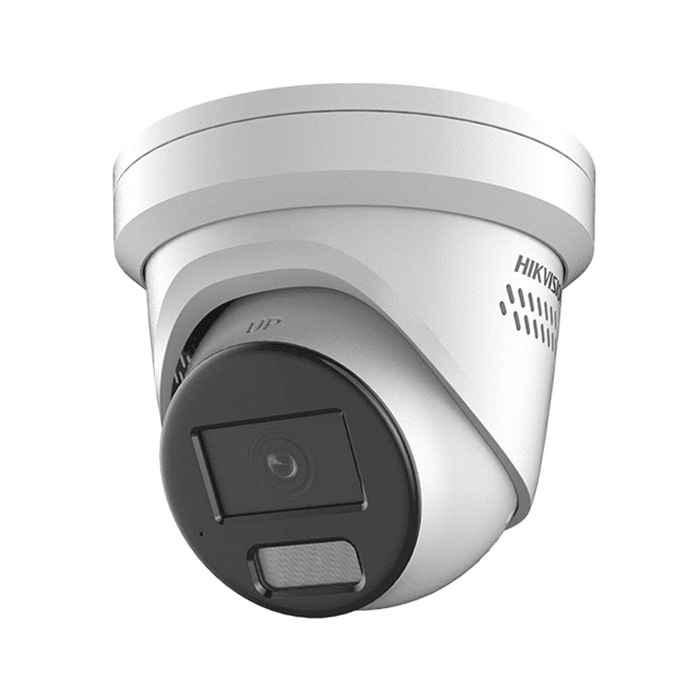

Hikvision AcuSense DS-2CD2347G2-LSU/SL(2.8MM)(C) 4MP fixed lens ColorVu turret camera with audible warning and strobe light.

Hikvision DS-2CD2347G2-LSU/SL(2.8MM)(C) Specifications:

• 4MP high resolution
• 2.8 mm fixed lens
• Full-time colour
• Triple stream
• Up to 30 m White light
• H.265+ compression
• 4 analytics
• Face Capture
• Smart motion detection
• Visual alarm
• 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Active strobe light and audio alarm to warn intruders off
• IP67 weatherproof
• 130dB wide dynamic range
• Built-in microphone
• Supports onboard storage (up to 256 GB)
• 12V DC & POE (802.3af)

Camera

• Image Sensor1/1.8″ Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. Illumination Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time1/3 s to 1/100,000 s
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate 0° to 360°

Lens

Focal Length & FOV

• 2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°
• 4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°

• Lens MountM16
• Iris TypeFixed
• ApertureF1.0

Depth Of Field

• 2.8 mm: 3.1 m to ∞
• 4 mm: 5.4 m to ∞

DORI

• 2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m
• 4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

Illuminator

• Supplement Light Type White light
• Supplement Light Range Up to 30 m
• Smart Supplement Light Yes

Video Compression

• Mainstream: H.265/H.264/H.265+/H.264+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC)H.265 and H.264 encoding
• Region Of Interest (ROI)1 fixed region for mainstream and sub-stream

Audio

• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View Up to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host Up to 32 users. 3 user levels: administrator, operator, and user
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface

Network Storage

• NAS (NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD/SDHC/SDXC card (256 GB) local storage
• Together with high-end Hikvision memory cards, memory card encryption and health detection are supported
• ClientiVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch Auto, Schedule
• Wide Dynamic Range (WDR)130 dB
• SNR≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC slot, up to 256 GB
• Built-In Microphone Yes
• Built-In Speaker1.2 W, 10 cm: 95 dB

Audio

• 1 input (line-in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
• 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Event

• Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send an email, strobe light, audible warning, trigger alarm output

Deep Learning Function

• Face Capture Yes

Power

• 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug
• POE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W

• DimensionØ138.3 mm × 115.4 mm (Ø5.4″ × 4.5″)
• Package Dimension170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
• Approx. 760 g (1.7 lb.)
• With Package Weight Approx. 1040 g (2.3 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions,-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

EMC

• FCC SDoC: 47 CFR Part 15, Subpart B;
• CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;
• RCM: AS/NZS CISPR 32: 2015;
• IC VOC: ICES-003: Issue 6, 2016;
• KC: KN 32: 2015, KN 35: 2015

Safety

• UL: UL 60950-1;
• CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
• CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
• LOA: IEC/EN 60950-1

Environment

• CE-RoHS: 2011/65/EU;
• WEEE: 2012/19/EU;
• Reach: Regulation (EC) No 1907/2006
• ProtectionIP67: IEC 60529-2013
