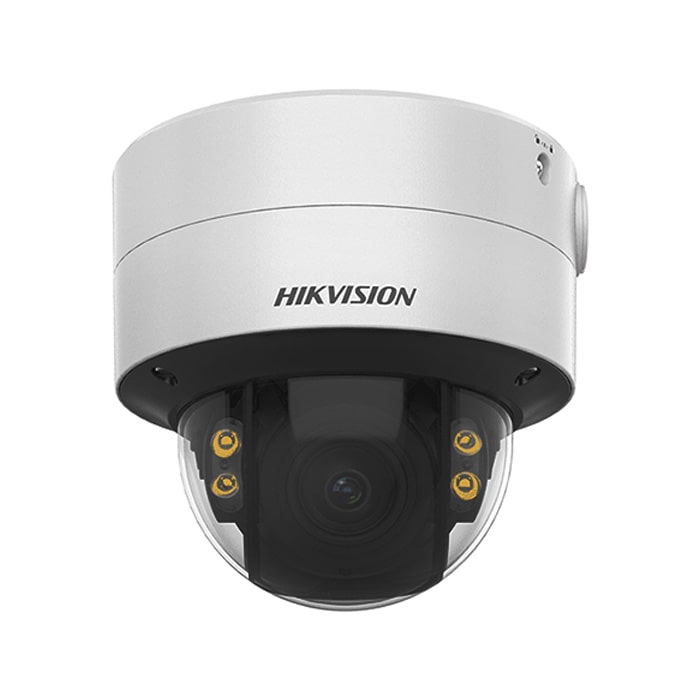

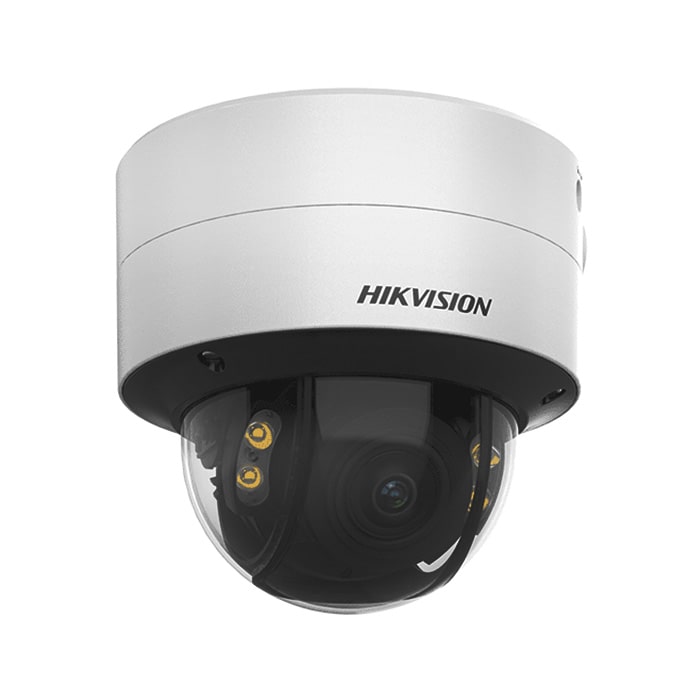

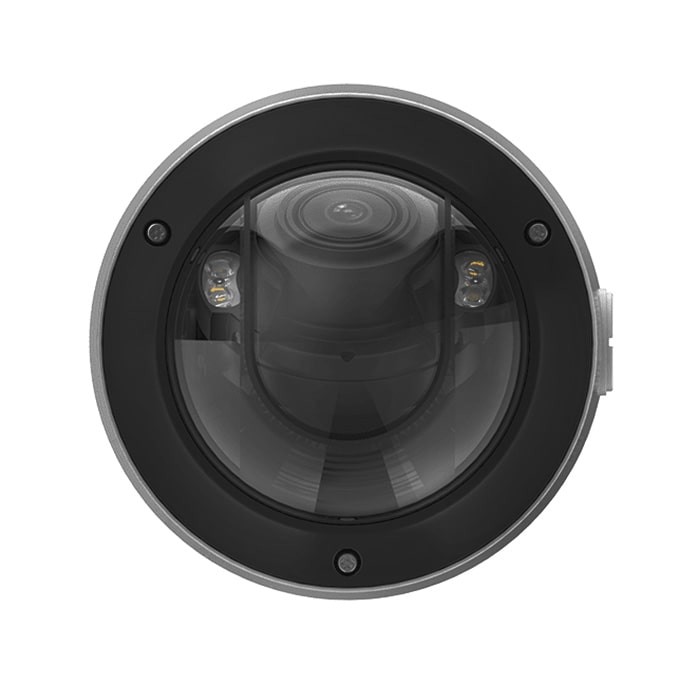

Hikvision DS-2CD2747G2-LZS(C) 4MP 3.6 to 9 mm Varifocal Lens ColorVu dome IP camera 40m IR

This is DS-2CD2747G2-LZS(C) Hikvision AcuSense 4MP 3.6 – 9 mm motorised varifocal lens, ColorVu dome camera, Up to 40 m White light.

Hikvision DS-2CD2747G2-LZS(C) Specifications:

• 4MP high resolution
• 3.6 –  9 mm motorised varifocal lens
• Full-time colour
• Triple stream
• H.265+ compression
• 4 analytics
• Face Capture
• Smart motion detection
• IP67 weatherproof
• 130dB wide dynamic range
• Supports on-board storage (up to 256 GB)
• 12V DC & POE (802.3af)

Camera

• Image Sensor1/1.8″ Progressive Scan CMOS
• Max. Resolution 2688 × 1520
• Min. Illumination Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time1/3 s to 1/100,000 s
• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate 0° to 355°

Lens

• Lens Type Varifocal lens, motorised lens, 3.6 to 9 mm
• Focal Length & FOV3.6 to 9 mm, horizontal FOV 92.3° to 48°, vertical FOV 48.4° to 27°, diagonal FOV 112.2° to 55°
• Lens MountØ20
• Iris TypeFixed
• ApertureF1.0

Illuminator

• Supplement Light Type White Light
• Supplement Light Range Up to 40 m
• Smart Supplement Light Yes

Audio

• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View Up to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host Up to 32 users. 3 user levels: administrator, operator, and user
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface


• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch Auto, Schedule
• Wide Dynamic Range (WDR)130 dB
• SNR≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support micro SD/SDHC/SDXC slot, up to 256 GB

Audio

• 1 input (line-in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
• 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Power

• 12 VDC ± 25%, 0.9 A, max. 10.8 W, Ø5.5 mm coaxial power plug
• POE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
• DimensionØ155 mm × 152 mm (Ø6.1″ × 6.0″)
• Package Dimension227 mm × 198 mm × 220 mm (8.9″ × 7.8″ × 8.7″)
• Approx. 1520 g (3.4 lb.)
• With Package Weight Approx. 2109 g (4.6 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions,-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
