Hikvision DS-2CD2H46G2-IZS 4MP 2.8 to 12mm Varifocal Lens 40m IR IP Camera

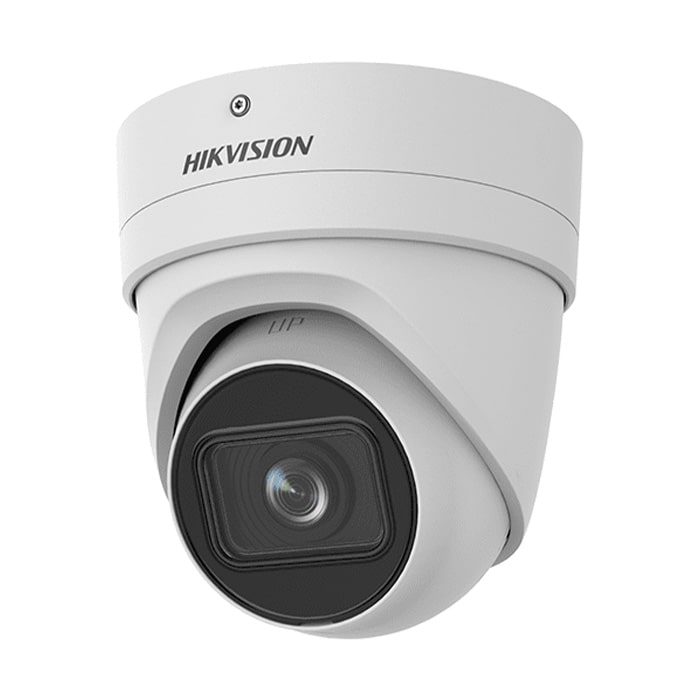

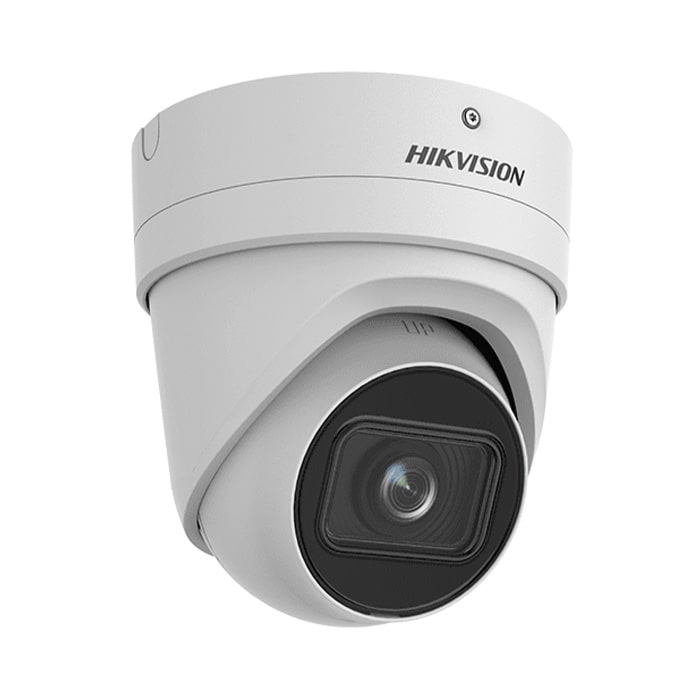

This is DS-2CD2H46G2-IZS Hikvision AcuSense 4MP 2.8 – 12 mm motorised varifocal lens Dark fighter turret camera with IR, Up to 40 m distance.

Hikvision DS-2CD2H46G2-IZS Specifications:

• 4MP high resolution
• 2.8 – 12 mm motorised varifocal lens
• Powered by Dark fighter for Ultra-Low Light
• Triple stream
• H.265+ compression
• 4 analytics
• Face Capture
• Smart motion detection
• IP66 weatherproof
• 120dB wide dynamic range
• Supports onboard storage (up to 256 GB)
• Audio line-in & alarm I/O
• Vandal-resistant up to IK10
• 12V DC & POE (802.3af)

Camera

• Image Sensor1/3″ Progressive Scan CMOS
• Max. Resolution 2688 × 1520
• Min. Illumination Colour: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate 0° to 360°

Lens

• Lens Type Varifocal lens, motor-driven lens, 2.8 to 12 mm
• Lens MountØ14
• Iris TypeFixed
• ApertureF1.4

Illuminator

• Supplement Light Type IR
• Supplement Light Range Up to 40 m
• Smart Supplement Light Yes
• IR Wavelength850 nm

Audio

• Audio Type Mono sound
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View Up to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host Up to 32 users. 3 user levels: administrator, operator, and user
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface

Network Storage

• microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory cards, memory card encryption and health detection are supported
• ClientiVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in micro SD slot, up to 256 GB
• Audio

Power

• 12 VDC ± 25%, 0.92 A, max. 11 W, two-core terminal block, reverse polarity protection
• POE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

• DimensionØ135.8 mm × 145.5 mm (Ø5.4″ × 5.8″)
• Package Dimension170 mm × 170 mm × 205 mm (6.7″ × 6.7″ × 8.1″)
• Approx. 1075 g (2.4 lb.)
• With Package Weight Approx. 1525 g (3.4 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions,-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
