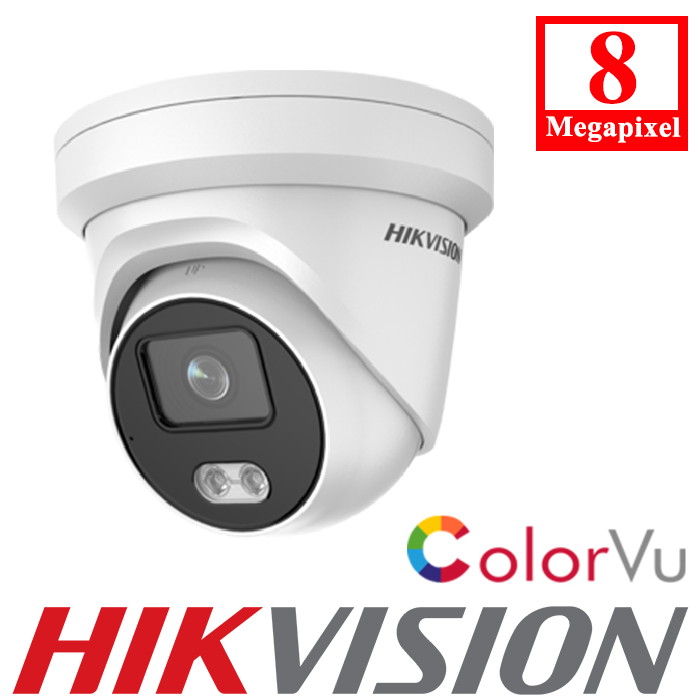

Hikvision DS-2CD3387G2-LSU 8 MP 2.8mm , 4mm Lens 40M IR ColorVU Network Camera

The Hikvision 8 MP 2.8MM Network Camera DS-2CD3387G2-LSU is a high-performance surveillance camera designed for professional security applications. With its advanced features and cutting-edge technology, it offers exceptional image quality and reliable performance.

The camera boasts an impressive 8 MP resolution, allowing for crisp and clear video footage. Its 2.8mm lens provides a wide-angle view, capturing a broad area with ease. This makes it suitable for various monitoring scenarios, including indoor and outdoor surveillance.

Equipped with advanced video compression technology, the DS-2CD3387G2-LSU optimises bandwidth usage without compromising image quality. It supports H.265+ and H.264+ codecs, reducing storage requirements and network strain.

The camera features enhanced low-light capabilities, allowing it to capture detailed images even in challenging lighting conditions. With its built-in IR LEDs, it provides excellent night vision up to a specified range, ensuring round-the-clock surveillance.

The DS-2CD3387G2-LSU supports Power over Ethernet (PoE) technology, simplifying installation and reducing the need for additional power cables. It is also equipped with intelligent video analytics, including motion detection, intrusion detection, and line crossing detection, enhancing the camera’s effectiveness in detecting and alerting to potential security threats.

Features:

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Built-in microphone for real-time audio security
• Focus on human and vehicle targets classification based on deep learning
• 24/7 colourful imaging
• Water and dust resistant (IP67)

Hikvision DS-2CD3387G2-LSU Specifications:

Camera

• Image Sensor1/1.2″ Progressive Scan CMOS
• Max. Resolution 3840 × 2160
• Min. Illumination Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & Night 24/7 colour imaging
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°

  4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°

• Lens MountM16
• Iris Type Fixed
• ApertureF1.0
• Depth Of Field

  2.8 mm: 3.1 m to ∞

  4 mm: 3.6 m to ∞

DORI

• DORI

  2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

  4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator

• Supplement Light Type White Light
• Supplement Light Range Up to 40 m
• Smart Supplement LightYes

Video

• Main Stream

  50 Hz:

  25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  24 fps (3840 × 2160)

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Fourth Stream

• 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
• *Fourth stream is supported under certain settings.

Video Compression

• Main stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• Fourth stream: H.265/H.264/MJPEG

*Third stream and fourth stream are supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)5 fixed regions for main stream and sub-stream
• Target Cropping Yes

Audio

• Audio Type Mono sound
• Environment Noise Filtering Yes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network

• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
• User/HostUp to 32 users. 3 user levels: administrator, operator and user

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Privacy Mask4 programmable polygon privacy masks
• Day/Night Switch Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DNR
• Image Parameters Switch Yes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 512 GB
• Built-In Microphone Yes

Audio

1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

• Alarm1 input, 1 output (max. 12 VDC, 30 mA)
• Power Output12 VDC, max. 100 mA

Event

• Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event Unattended baggage detection, object removal detection, scene change detection, audio exception detection
• Linkage Upload to FTP/NAS/memory card, notify surveillance centre , send email, trigger alarm output, trigger recording, trigger capture, audible warning

• Deep Learning Function
• Face Capture Yes
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC, 0.47 A, max. 5.6 W

PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.12 A, max. 6.6 W

• Material Cover: metal, main body: metal
• DimensionØ138.3 mm × 120.1 mm (Ø5.4″ × 4.7″)
• Package Dimension170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
• Weight Approx. 910 g (2 lb.)
• With Package Weight Approx. 1190 g (2.6 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function Heartbeat ,anti-banding ,mirror ,flash log ,password reset via email ,pixel counter

Approval

• EMC

  FCC (47 CFR Part 15, Subpart B)

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

  RCM (AS/NZS CISPR 32: 2015)

  IC (ICES-003: Issue 7)

  KC (KN32: 2015, KN35: 2015)

Safety

• UL (UL 62368-1)
• CB (IEC 62368-1: 2014+A11)
• CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment

• CE-RoHS (2011/65/EU)
• WEEE (2012/19/EU)
• Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67: IEC 60529-2013
