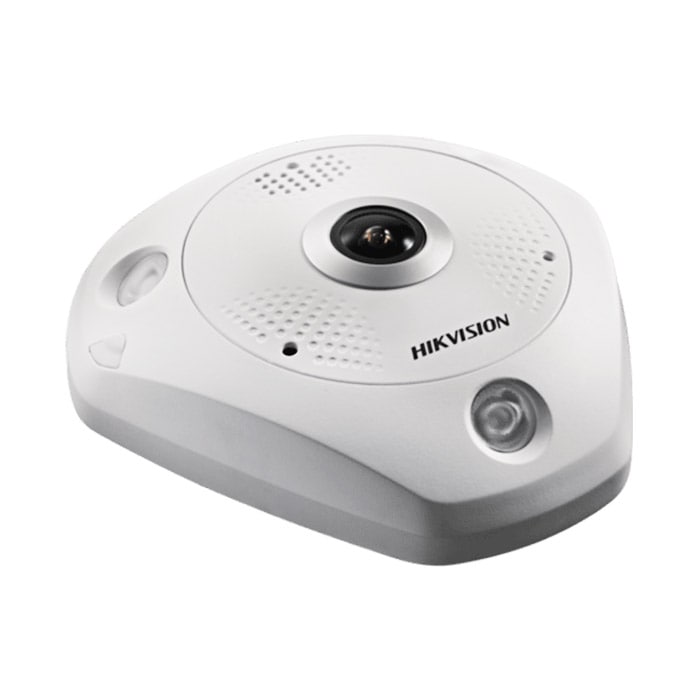

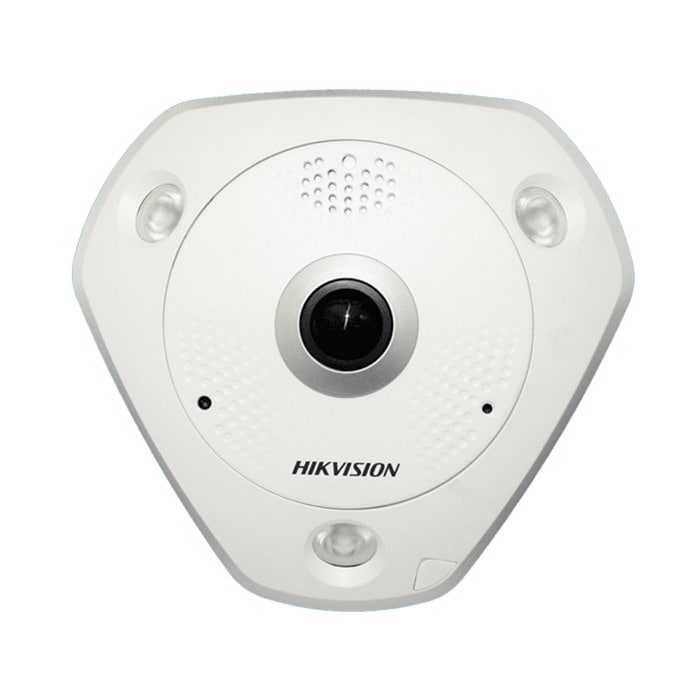

Hikvision DS-2CD6365G0-IVS 6MP 1.27mm Fixed Lens Network Camera 15m IR

This Hikvision DS-2CD6365G0-IVS is a fisheye network camera capable of providing a 360-degree panoramic image of its surveillance scene. The Progressive Scan CMOS Sensor provides high-resolution images of up to 3072 × 2048. Up to 18 live view display modes, designed for 3 mount types, to meet various user preferences.

Three independently controlled IR lights offer a range of 15 m and provide good vision in a low or even zero-light environment.

Hikvision DS-2CD6365G0-IVS Specifications:

• 6MP high resolution
• 1.27 mm fixed lens
• 360° view angle
• Up to 15 m IR distance, 3 LEDs. Each LED is independently controlled.
• Digital wide dynamic range
• H.265+
• Supports onboard storage (up to 256 GB)
• Multiple PTZ viewing modes
• Multiple PTZ streams with preset & patrol functions Ceiling, wall, or table mount modes
• Audio line-in & alarm I/O
• 12V DC & POE (802.3at)

Camera

• Image Sensor1/1.8″ Progressive Scan CMOS
• Max. Resolution3072 × 2048

Min. Illumination

• Colour: 0.047 Lux @ (F2.6, AGC ON),
• B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR

• Shutter Time1 s to 1/100,000 s
• Day & Night IR Cut Filter

Lens

• Focal Length & FOV1.27 mm, horizontal FOV 180° (wall mount), 360° (ceiling mount), 360° (table mount)
• Lens MountM12
• ApertureF2.6

Illuminator

• Supplement Light Type IR
• Supplement Light Range Up to 15 m IR range, 3 LEDs. Each LED is independently controlled.
• IR Wavelength850 nm

Audio

• Audio Type Mono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise Filtering Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Simultaneous Live View Up to 20 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• User/Host Up to 32 users. 3 user levels, administrator, operator, and user
• Security Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Network Storage Support micro SD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
• Clienti VMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
• Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+


• Image Settings Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
• Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
• Wide Dynamic Range (WDR)Digital WDR
• Image Enhancement BLC, HLC, defog, 3D DNR
• Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit BMP format

Interface

• Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
• On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Built-In Microphone2 built-in microphones
• Built-In Speaker1 built-in speaker
• Audio-S: 1 Audio input (line-in, 3.5 mm), 1 audio output (line out, 3.5 mm)
• Alarm-S: 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
• Reset Key Yes

Power

• 12 VDC ± 20%, 1 A, max. 12.5 W
• POE: 802.3at, class 4, 42.5 to 57 V, 0.4 A to 0.3 A, max. 15 W
• -S model: two-core terminal block
• Without –S model: Φ 5.5 × 2.1 mm coaxial power plug
