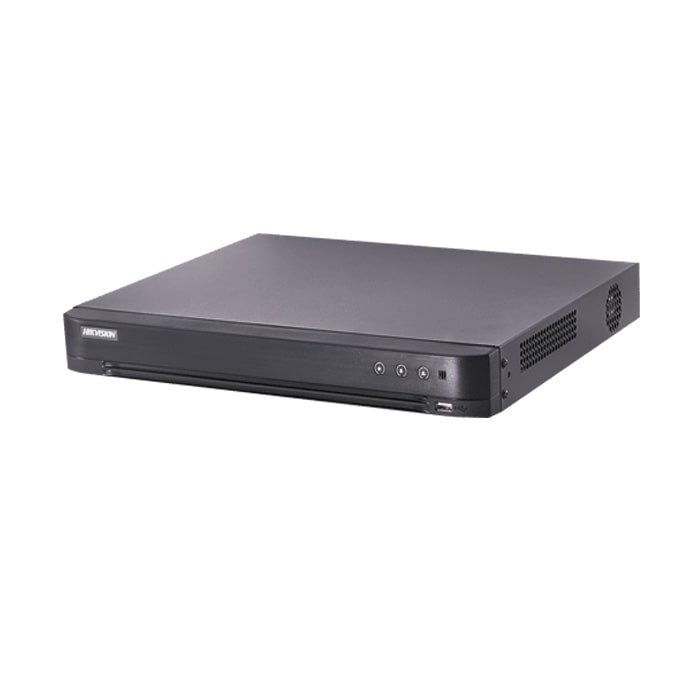

Hikvision DVRÂ DS-7204HQHI-K1/P model has brand-new features like 2MP cameras and 4 different channels. With H.265 pro compression technology, you can save your recordings from 1 to 6 TB on your internal storage.
High-definition output through 5 signals input adaptive to (HDTVI/AHD/CVI/CVBS/IP) can be encoded up to 1080p @15 frames per second. PoC technology allows you to transmit both HDTVI video and power over the same coaxial cable, last but not least you can connect up to 6 network cameras to this model which totally covers your personal needs.
Hikvision DS-7204HQHI-K1/P Specifications:
- 4 channels and 1 HDD 1U DVR
- Efficient H.265 pro and new compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6 network cameras can be connected to this DVR
- Transmits both HDTVI video and power over the same coaxial cable
- Remote connections32
- Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF
- Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
Recording
- Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution
- 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
- 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Video and Audio
- IP Video Input 2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analogue Video Input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input 1080p25, 1080p30, 720p25, 720p30
- CVBS Input PAL/NTSC
- Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback 4-ch
- HDTVI Input

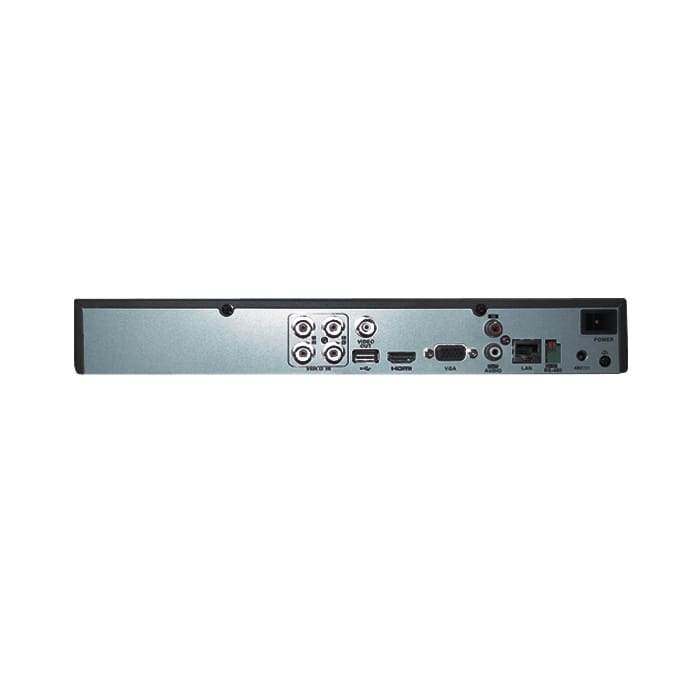

Auxiliary Interface
- SATAÂ 1 SATA interface
- Capacity Up to 10 TB capacity for each disk
- Alarm In/Out N/A
- USB Interface 2 × USB 2.0
- Serial Interface RS-485 (half-duplex)
