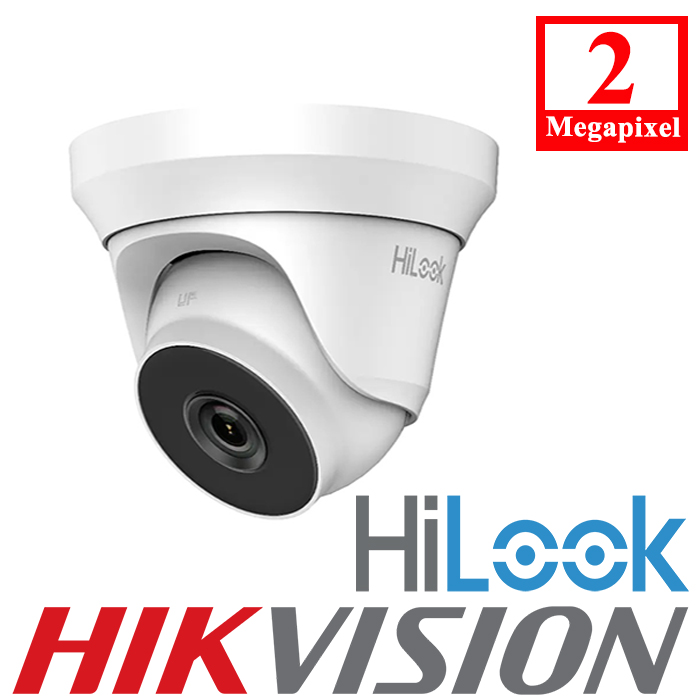

Hilook By Hikvision 2 MP 2.8mm Lens HD 50 m IR THC-T223-M Turret Camera

The Hilook By Hikvision 2 MP 2.8MM HD Turret Camera THC-T223-M is a high-definition surveillance camera renowned for its exceptional image quality and versatile design. This turret camera is well-suited for both indoor and outdoor security applications, offering reliable monitoring and recording capabilities.

With its 2 MP resolution, the THC-T223-M captures clear and detailed video footage, ensuring important details are captured with precision. The 2.8mm lens provides a wide field of view, allowing for expansive coverage of the surveillance area.

Equipped with infrared LEDs, this Hilook camera delivers excellent night vision capabilities, enabling round-the-clock monitoring even in complete darkness. It captures detailed black-and-white images in low-light conditions, ensuring comprehensive security coverage.

The Hilook By Hikvision THC-T223-M features a sturdy turret design, offering flexible installation options and a sleek appearance. Its compact and weatherproof construction ensures durability and reliable performance in various environmental conditions.

This Hilook By Hikvision  camera supports HD-TVI technology, allowing for high-definition video transmission over coaxial cables. It is compatible with Hilook By Hikvision DVRs and other HD-TVI systems, making integration into existing security setups effortless.

The camera’s motion detection feature enhances security by detecting movement within its field of view and triggering recording or sending alerts. This helps focus attention on potential security threats and optimises storage space by recording relevant events.

Features:

• Clear imaging against strong back light by 120 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0, advanced infrared technology with 50 m IR distance
• Water and dust resistant (IP66)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Hilook By Hikvision THC-T223-M Specifications:

Camera

• Image Sensor 2 MP CMOS
• Max. Resolution 1920 (H) × 1080 (V)
• Min. Illumination 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night IR Cut Filter
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
• Signal System PAL/NTSC

Lens

• Lens Type 2.8 mm, 3.6 mm, 6 mm
• Focal Length & FOV106° (2.8 mm), 82° (3.6 mm), 51° (6 mm)
• Lens MountM12

Illuminator

• Supplement Light Type IR
• Supplement Light Range Up to 50 m
• Smart Supplement Light Yes


• Image Parameters Switch STD/HIGH-SAT
• Image Settings Brightness; Sharpness; Mirror; AGC

Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

• Day/Night Mode Auto/Colour/BW (Black and White)
• Wide Dynamic Range (WDR)≥120 dB
• Image Enhancement WDR;BLC;HLC
• Noise Reduction3D DNR

Interface

• Video Output1 HD analog output; Switchable TVI/AHD/CVI/CVBS

General

• Power

  12 VDC ±25%, max. 4.6 W

  *You are recommended to use one power adaptor to supply the power for one camera.

• Material Metal
• Dimension Ø 127.92 mm × 102.26 mm (Ø 5.04″ × 4.03″)
• Weight440 g (0.97 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
• Language English

Approval

• Protection IP66
