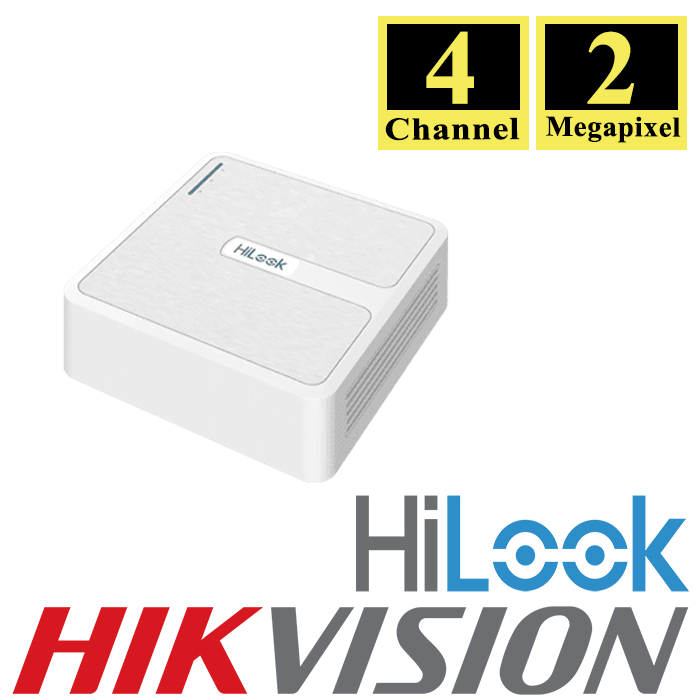

HiLook By Hikvision DVR-104G-F1 4Ch 1080p Mini 1U Lite H.264 DVR

HiLook By Hikvision DVR-104G-F1 4Ch 1080p Mini 1U Lite H.264 DVR

Features:

• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Long distance transmission over UTP and coaxial cable
• Supports 1080p lite, and when enabled the image effect is similar with 1080p
• Encoding abilty up to 1080p lite @ 12 fps
• One HDD for continuous video recording
• Smart search for efficient playback.

HiLook DVR-104G-F1 Specifications:

Recording

• Video Compression H.264+/H.264
• Encoding Resolution When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
• When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF

Video and Audio

• IP Video Input1-ch (up to 5-ch)
• Up to 1080p resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input 4-ch
• BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS Input PAL/NTSC
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  4-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
• Synchronous playback4-ch

Network

• Remote Connection32
• Network Protocol TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA1, SATA interface
• Capacity Up to 6 TB capacity for each disk
• USB Interface Rear panel: 2 × USB 2.0
• Alarm In/OutN/A

General

• Power Supply12 VDC, 1.5 A
• Consumption≤ 8 W (without HDD)
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
• Weight≤ 0.8 kg (1.8 lb.)
