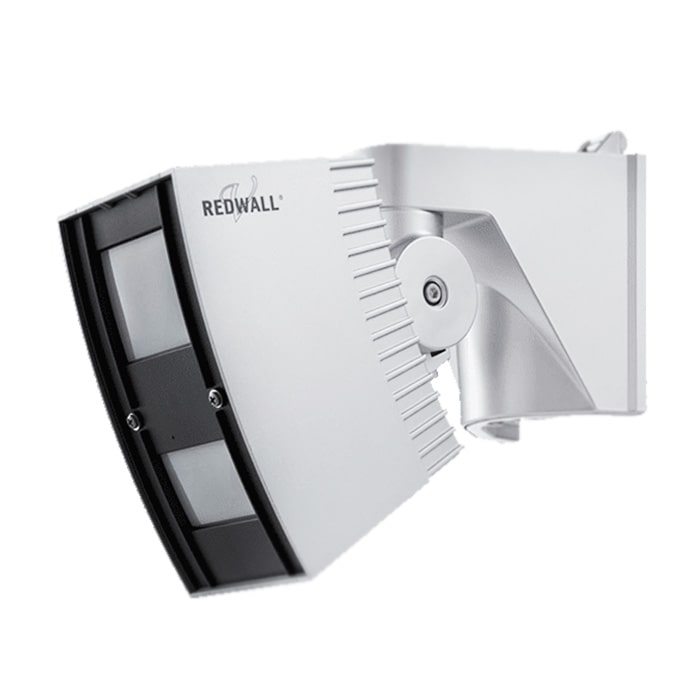

The SIP-4010/5 is designed for detecting outdoor applications to trigger video transmission systems and PTZ camera control. The detectors in this series have an intelligent detection system that uses data from the ambient environment, such as temperature and illuminance conditions to automatically adjust the sensitivity.
They are also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit. The SIP-4010/5 is a hardwired model providing a detection range of 40m by 10m (LxW) with an additional creep zone detection area of 6x9m wide ideal to cover long and realtively wide sites areas.
Optex REDWALL SIP-4010 Specifications:
- Advanced detection algorithm
- 40×10 m intelligent PIR for approach detection
- Designed to trigger CCTV systems
- Three independent detection zones far/near/creep
- Active infrared antimasking and vandal-resistant
- IP rating : Main unit P65 – Chassis IP55
- Dimensions 227 x 102 x 266 mm
Designed to trigger CCTV systems
The REDWALL SIP series is designed to be connected to PTZ or fixed dome cameras and trigger the CCTV system when an intrusion occurs. The SIP-4010 has two independent detection zones, far and near zones, with independent sensitivity selection, that can trigger the right camera pre-sets and provide the best view of the scene to local security staff or remote monitoring stations.
Weather and vandal-resistant
The SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity are adjusted automatically to the ambient temperature and illuminance and they have a IP65 rating for the main unit. They also vandal-resistant featuring a polycarbonate housing, an accelerometer to detect if the sensor position has been tampered with and an active infrared antimasking.
