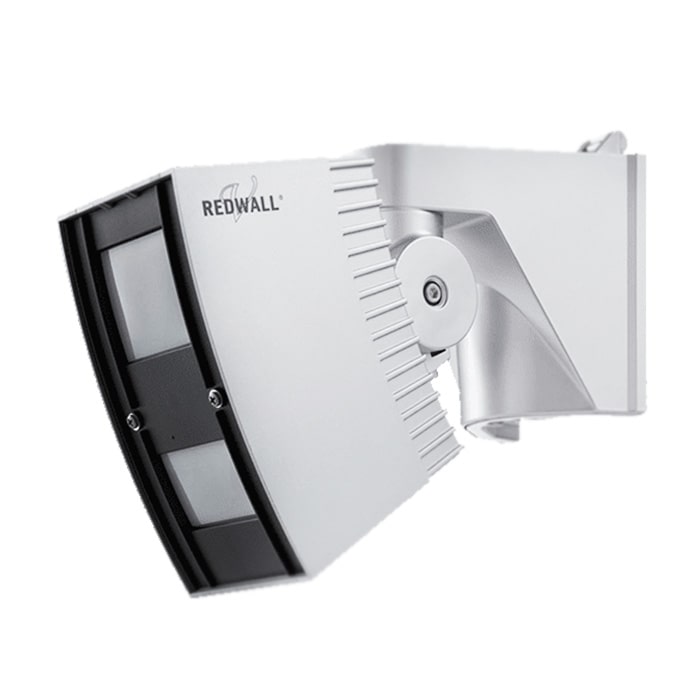

The SIP-3020/5 is designed for detection outdoor applications to trigger video transmission systems and PTZ camera control. Detectors in this series have an intelligent detection system which uses data from the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity. The SIP-3020/5 is a hardwired model providing a detection range of 30 m length by 20 m wide with an additional creep zone detection (up to 6×9 m), ideal to cover car parks, yards, and other wide areas.
Optex REDWALL SIP-3020/5 Specifications:
- 30×20 m intelligent PIR for approach detection
- Designed to trigger CCTV systems
- Three independent detection zones far/near/creep
- Active infrared antimasking and vandal-resistant
- Dimensions 248 x 102 x 266 mm
- IP rating IP65, IP55
Designed to trigger CCTV systems
The REDWALL SIP series is designed to be connected to PTZ or fixed dome cameras and trigger the CCTV system when an intrusion occurs. The SIP-3020/5 has three independent detection zones -far, near and creep zones, with independent sensitivity selection, that can trigger the right camera pre-sets and provide the best view of the scene to local security staff or remote monitoring stations.
Weather and vandal-resistant
The SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity is adjusted automatically to the ambient temperature and illuminance, and they have a IP65 rating for the main unit. They also vandal-resistant, featuring a polycarbonate housing, an accelerometer to detect if the sensor position has been tampered with and an active infrared antimasking.
