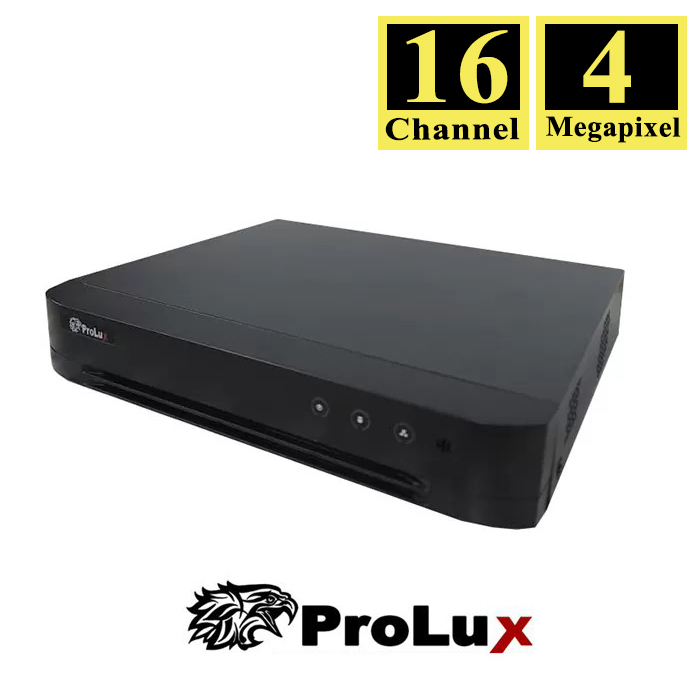

Prolux PXD-8216-HYK4MP 16 Channel Hybrid DVR 4 Megapixel

Prolux 16 Channel UP TO 4 Megapixel Hybrid DVR, IP Video Input8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras.

Prolux PXD-8216-HYK4MP Specifications:

• 16 channels and 1 HDD 260 case DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 24 network cameras can be connected.
• Consumption(Without HDD)≤ 13 W
• Working Humidity10% to 90%
• Power Supply12 VDC
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Dimensions(W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
• Weights (Without HDD)≤ 1.7 kg (3.7 lb)
• Video Bit Rate32 Kbps to 6 Mbps
• Video Compression265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Dual Stream Support
• Stream Type Video, Video & Audio
• Audio Compression711u
• Audio Bit Rate64 Kbps

Video And Audio

• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Synchronous Playback16-ch
• HDTVI Input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel
• 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
• HDCVI Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Analogue Video Input16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS OutputN/A

HDMI/VGA Output

• HDMI:1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output
• VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

• Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connections128
• Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

• Capacity Up to 10 TB capacity for each disk
• Serial InterfaceN/A
• USB Interface2 × USB 2.0
• Alarm In/OutN/A
• SATA1 SATA interface
