With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realising high resolution surveillance such as 4MP/4K.
The Lite Series is designed for high cost performance and quality. The range offers a great solution for users facing budget constraints who both require quality and performance. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the Total Cost of Ownership (TCO).
Features:
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 12/24 channels IP camera inputs, each channel up to
- 8MP; Max 96Mbps incoming bandwidth
- Smart Search and Intelligent Video System
- Total 96W output power consumption; Max supports
- 16 channels Lite series PoC cameras inputs or 8 channels
- Pro series PoC cameras inputs.
- Note: HDCVI PoC system temporarily does not support balun
- accessing and UTP transmission.

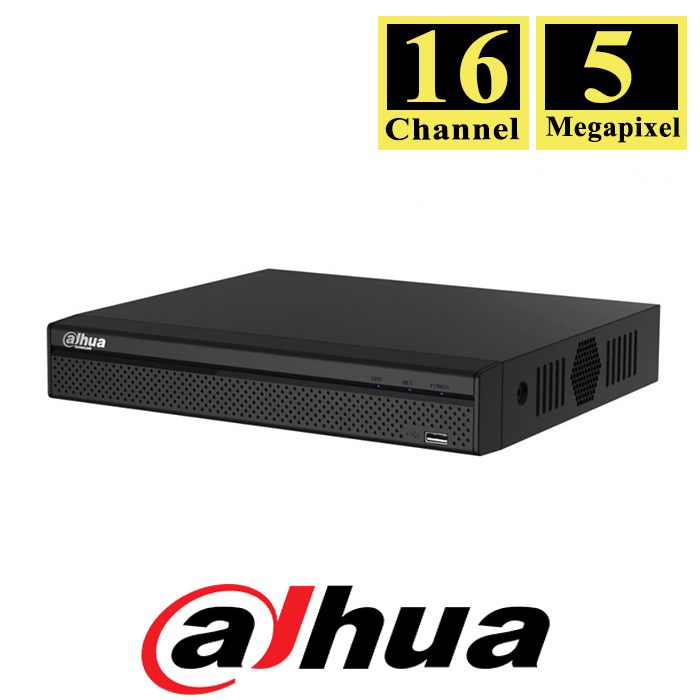

Dahua XVR-5216AN-4KL-X-16P Specifications:
Display
- Interface: 16CH: 1 HDMI, 1 VGA, 1 TV
- Resolution: HDMI:38402160, 25601440, 19201080, 12801024, 1280720
- VGA: 19201080, 12801024, 1280720
Multi-screen Display
- When IP extension mode not enabled: 16CH: 1/4/8/9/16
- When IP extension mode enabled:
- 16CH: 1/4/8/9/16/25
- OSD Camera title, Time, Video loss, Camera lock, Motion detection,
Recording
Network
Interface 1 RJ-45 Port (1000M)
Network Function
- HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP,
- UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm
- Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android
- Interoperability ONVIF 16.12, CGI Conformant
- Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips: Video Detection Motion Detection, MD Zones: 396 (22 18), Video
Loss, Tampering and Diagnosis
- Alarm input N/A
- Relay Output N/A
Playback and Backup
- Playback: 16CH: 1/4/9/16
- Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
- Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
- Previous File, Next Camera, Previous Camera, Full Screen,
- Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode USB Device/Network
Storage
Internal HDD 2 SATA Ports, up to 10TB capacity for each disk eSATA N/A
Auxiliary Interface
USB 2USB Ports (1 USB 2.0 , 1 USB 3.0)
RS232 N/A: RS485 1 Port, for PTZ Control
Electrical
- Power Supply:Â 16CH: DC54V
- Power Consumption: 16CH: <20W (Without HDD)
- Max. Power Output: 16CH: <96W
- Construction: Dimensions 1U, 375mm287mm53mm (14.8″ x 11.3″ x 2.1″)
- Device with PFH101: Rack Mount Tray 483mmx281mmx56mm (19.0″x11.1″x2.2″)
Net Weight: (without HDD)
- 2.0kg (4.41lb)
- Gross Weight 3.62kg (7.98lb)
Installation Desktop installation
- Environmental: Operating Conditions -10C ~ +55C (+14F ~ +131F), 10%~ 90% RH
- Storage Conditions: -20C ~ +70C (-4F ~ +158F) , 0~ 90% RH
Certifications:
- FCC: Part 15 Subpart B
- CE: CE-LVD: EN 60950-1/IEC 60950-1
- CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130,
- EN 55024
- UL: UL 60950-1
