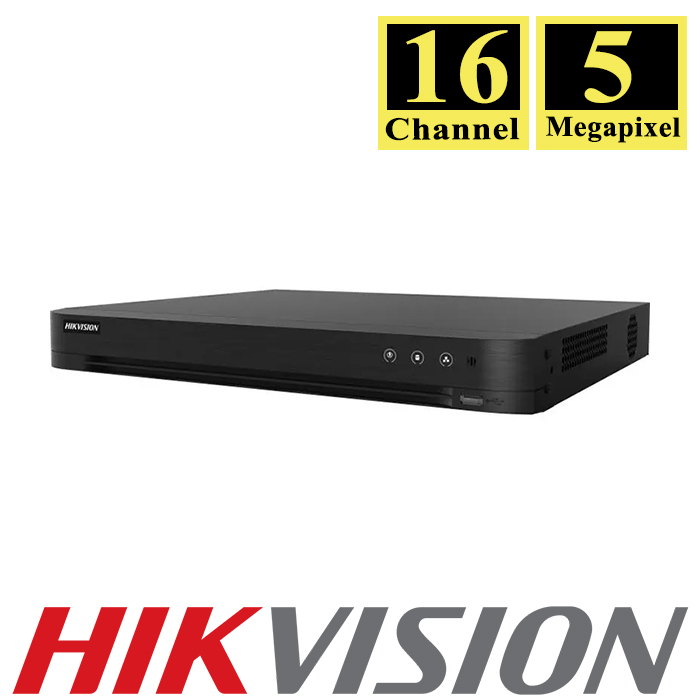

Hikvision 16 Ch 5 MP DVR iDS-7216HUHI-M2/P DVR

The Hikvision 16 Channel 5 MP DVR iDS-7216HUHI-M2/P is a high-performance digital video recorder designed for professional surveillance applications. This DVR offers advanced features and capabilities to provide reliable and efficient video recording and management. In this description, we will highlight the key features and benefits of the Hikvision iDS-7216HUHI-M2/P DVR.

The iDS-7216HUHI-M2/P DVR supports up to 16 channels, allowing you to connect multiple cameras for comprehensive surveillance coverage. It is compatible with a wide range of Hikvision analog, HD-TVI, and IP cameras, providing flexibility in camera selection.

With its 5 MP resolution support, this DVR captures high-quality video footage with detailed and sharp images. It ensures accurate monitoring and identification of events, providing exceptional video clarity.

The DVR supports various recording modes, including continuous, scheduled, and motion detection-based recording. It also offers event-triggered recording, ensuring that important events are captured and stored for later review.

Equipped with advanced H.265+ video compression technology, the iDS-7216HUHI-M2/P DVR maximises storage efficiency without compromising video quality. It significantly reduces bandwidth and storage requirements, allowing for longer recording times and cost-effective storage solutions.

Featuring HDMI and VGA outputs, the DVR provides flexible display options, allowing you to connect it to a monitor or TV for live viewing and playback. It also supports remote access, enabling you to monitor your surveillance system from anywhere using a mobile device or computer.

The iDS-7216HUHI-M2/P DVR offers advanced features such as motion detection, video analytics, and intelligent search for efficient and accurate video analysis. It also supports audio input/output, allowing for audio recording and two-way audio communication when connected to compatible devices.

The DVR comes with various network connectivity options, including Ethernet and USB ports. It supports network protocols for seamless integration with your existing network infrastructure.

Features:

• Transmits both HDTVI video and power over the same coaxial cable
• 16 channels and 2 HDD 1U DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 8MP @8 fps ，5 MP @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 32 network cameras can be connected

Hikvision iDS-7216HUHI-M2/P  Specifications:

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Line Crossing Detection/Intrusion Detection Up to 4-ch

Facial Detection

• Facial Detection And Capture Face picture detection, face picture search

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  Video Bitrate32 Kbps to 10 Mbps

• Dual-Stream Support
• Stream Type Video, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

Video And Audio

• IP Video Input

  8-ch (up to 24-ch)

  Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps

  Up to 8 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  16-ch;

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• PoC Camera Input

  Support Hikvision PoC camera

  HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• CVBS Input PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous Playback16-ch
• HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Video Output Mode HDMI/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Audio Input

  4-ch, RCA (2.0 Vp-p, 1 KΩ)

  4-ch via coaxial cable

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Network

• Total Bandwidth128 Mbps
• Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection 128
• Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA2 SATA interfaces
• Capacity Up to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out4/1

General

• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 20 W (without HDD)
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weight≤ 3.8 kg (without HDD, 8.4 lb.)
