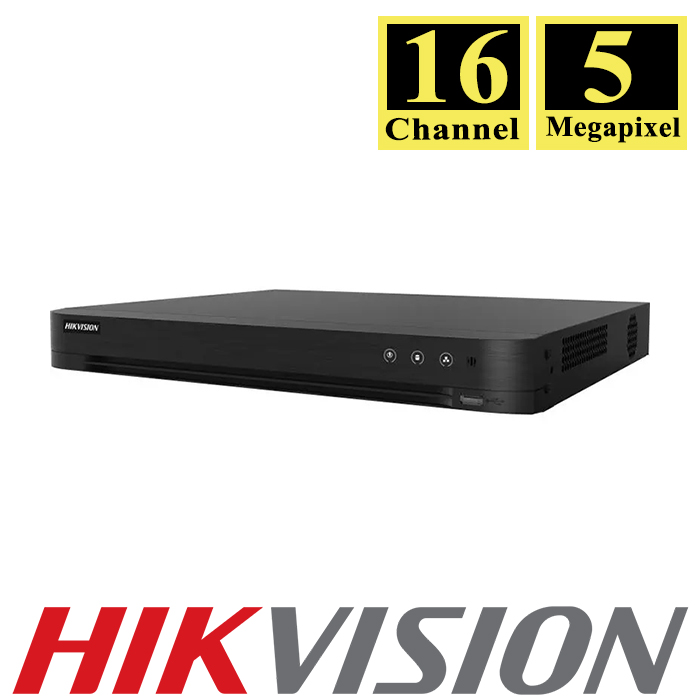

The Hikvision 16 Channel 5 MP DVR iDS-7216HQHI-M1/S is a professional-grade digital video recorder designed for reliable and high-quality video surveillance. This DVR offers advanced features and capabilities to meet the security needs of various environments. In this description, we will highlight the key features and benefits of the Hikvision iDS-7216HQHI-M1/S DVR.
The iDS-7216HQHI-M1/S DVR supports up to 16 channels, allowing you to connect multiple cameras for comprehensive coverage of your premises. It is compatible with a wide range of Hikvision analog and HD-TVI cameras, providing flexibility in camera selection.
With its 5 MP resolution, this DVR captures clear and detailed video footage, ensuring accurate monitoring and identification of events. It supports real-time recording at up to 1080p resolution, delivering high-quality video playback.
Equipped with H.265+ video compression technology, the iDS-7216HQHI-M1/S DVR optimises storage space without compromising video quality. It reduces bandwidth and storage requirements, allowing for longer recording times.
The DVR offers multiple recording modes, including manual, scheduled, and motion detection, giving you the flexibility to customise recording options based on your surveillance needs. It also supports event-triggered recording, ensuring important events are captured.
Featuring HDMI and VGA outputs, the iDS-7216HQHI-M1/S DVR provides flexible display options, allowing you to connect it to a monitor or TV for live viewing and playback. It also supports remote access, enabling you to monitor your surveillance system from anywhere using a mobile device or computer.
The user-friendly interface of the iDS-7216HQHI-M1/S DVR makes it easy to navigate and configure settings. It offers various playback modes, including simultaneous playback and smart search, to quickly retrieve specific video footage.
The DVR supports multiple network protocols, including TCP/IP, PPPoE, DHCP, and DNS, allowing for easy integration into existing network infrastructures. It also offers advanced features such as email notifications, motion detection, and PTZ control for enhanced surveillance capabilities.
Features:
- 16 channels and 1 HDD 1U AcuSense DVR
- False alarm reduction through human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 24 network cameras can be connected.
Hikvision iDS-7216HQHI-M1/S Specifications:
Motion Detection 2.0
- Human/Vehicle Analysis
- Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
- Quick search by object or event type is supported;
Perimeter Protection
- Human/Vehicle AnalysisUp to 4-ch
Facial Detection
- Facial Detection And CaptureFace picture detection, face picture search
Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
Video And Audio
- IP Video Input
2-ch (up to 18-ch)
Up to 6 MP resolution
Enhanced IP mode on:
8-ch (up to 24-ch), each up to 4 Mbps
;Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback16-ch
- HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ),16-ch via coaxial cable;1
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network
- Total Bandwidth128 Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF
- Remote Connection128
- Network Interface
1,RJ45 10M/100M/1000M self-adaptive
Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface
1 × USB 2.0;
1 × USB 3.0
- Alarm In/OutN/A
General
- Power Supply12 VDC
- Consumption≤ 24 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight≤ 2 kg (4.4 lb)
