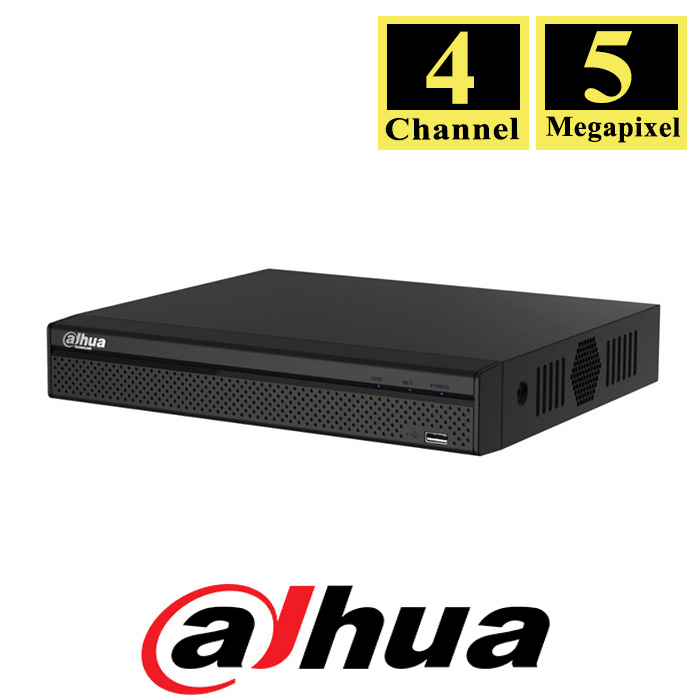

Dahua 4 Ch 5 MP DH-XVR5104H-I DVR

Dahua 4 Ch 5 MP DH-XVR5104H-I DVR

• H.265+/H.265 dual-stream video compression
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 6 channels IP camera inputs, each channel up to 6MP; Max 24Mbps incoming bandwidth
• Perimeter Protection and SMD Plus
• Up to 2 channels video stream (analog channel ) human face detection
• IoT & POS functionalities

Dahua DH-XVR5104H-I DVR Specifications:

System

• Main Processor Embedded Processor
• Operating System Embedded LINUX

Perimeter Protection

• Perimeter protection 1.AI by DVR: Detection alarm for human and vehicle. Filter misinformation such as leaves and light.
• Function configuration: Set at most 10 rules such as area intrusion and tripwire intrusion.
• Performance: 2 channels
• Live View 1. Rule box inspection: Configure the rule box and object inspection box.
• Counting: Count people in Peopletotal. Count motor vehicles in Vehicle. Support exporting of associated event playback before and after 10 seconds.

Playback

• Search conditions: According to channels, time, event types and target types.
• Functions: Support search of associated event playback or snapshot before and after 10 seconds.
• Snapshot capacity: 500,000

Face Detection

Performance

• UP to 12 face pictures/sec processing (modelling and comparing).
•  Up to 2 channels video stream (analog channel ) human face

SMD Plus

• SMD Plus 1. AI by DVR: Motion detection alarm for human and vehicle. Filter misinformation such as leaves and light.
• Performance: 4 channels , AI by DVR
• Preview Preview: Configure and inspect detection box
• Playback 1.Playback: Search videos through channels, time and target types.
• Functions: Support search of associated event playback before and after 10 seconds.

Video and Audio

• Analog Camera Input 4 Channel, BNC
• HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
• AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• CVBS Camera PAL/NTSC
• IP Camera Input 4+2 Channel, each channel up to 6MP
• Audio In/Out 1/1, RCA
• Two-way Talk Reuse audio in/out, RCA

Recording

• Compression H.265+/H.265/H.264+/H.264
• Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
• Record Rate Main stream: All channel 5M-N(1fps–10fps); 4M-N/1080P(1fps–15fps); 1080N/720P/960H/
• D1/CIF (1fps–25/30fps)
• Sub stream: D1/CIF(1fps–15fps)
• Bit Rate 32Kbps–6144Kbps Per Channel
• Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval 1 – 60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec
• Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
• Audio Sample Rate 8KHz, 16 bit Per Channel
• Audio Bit Rate 64Kbps Per Channel

Display

• Interface 1 HDMI ,1 VGA
• Resolution 1920×1080, 1280×1024, 1280×720
• Multi-screen Display When IP extension mode not enabled: 1/4
• When IP extension mode enabled: 1/4/8
• OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

• Interface 1 RJ-45 Port (100M)
• Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
• PPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.)
• Max. User Access 128 users
• Smart Phone iPhone, iPad, Android
• Interoperability ONVIF 16.12, CGI Conformant

Video Detection and Alarm

• Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
• Alarm input N/A
• Relay Output N/A

Playback and Backup

• Playback 1/4
• Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
• Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen,
• Backup Mode USB Device/Network

Storage

• Internal HDD 1 SATA Port, up to 6TB capacity
• eSATA N/A

Auxiliary Interface

• USB 2 USB 2.0
• RS232 N/A
• RS485 1 Port, for PTZ Control

Electrical

• Power Supply DC 12V/1.5A
• Power Consumption
• (Without HDD); <10W

Construction

• Dimensions Mini 1U, 325mm×255mm×55mm (12.8″ x 10″ x 2.2″)

Net Weight

• (without HDD): 1.0kg (2.2lb)
• Gross Weight 1.9kg (4.2lb)
• Installation Desktop installation

Environmental

• Operating Conditions -10°C to +45°C (+14°F to +113°F), up to 55°C/131°F with case fan, 10–90% RH
• Storage Conditions -20°C to +70°C (-4°F to +158°F) , 0–90% RH

Certifications

• Certifications FCC: Part 15 Subpart B
• CE: CE-LVD: EN 60950-1/IEC 60950-1
• CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
