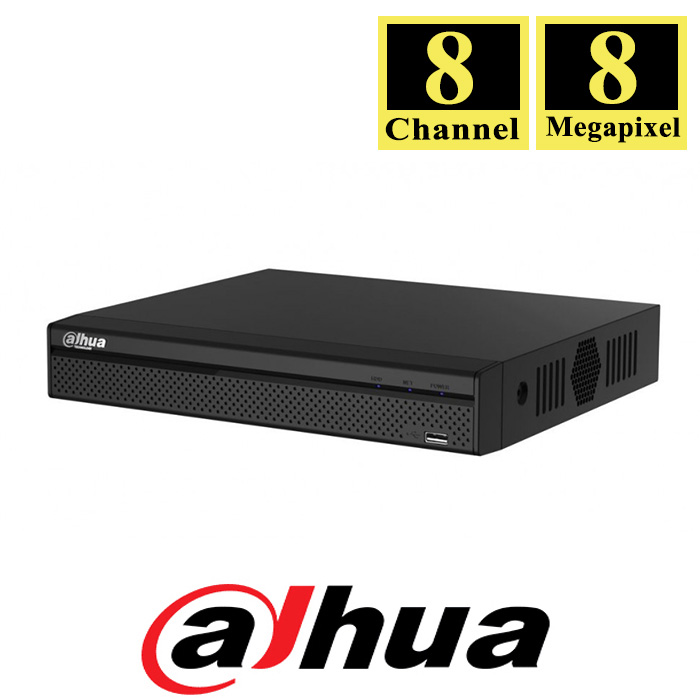

Dahua 8 Ch 8 MP DH-XVR5108H-4KL-X-8P DVR
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 12 channels IP camera inputs, each channel up to 8MP; Max 48Mbps incoming bandwidth
- Smart Search and Intelligent Video System
- Total 48W output power consumption; Max supports 8 channels AF PoC cameras inputs or 4 channels AT PoC cameras inputs.
- Note: HDCVI PoC system temporarily does not support balun accessing and UTP transmission.
Dahua DH-XVR5108H-4KL-X-8P Specifications:
System
- Main Processor Embedded Processor
- Operating System Embedded LINUX
Video and Audio
- Analog Camera Input 8 Channel, BNC
- HDCVI Camera 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
- AHD Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
- TVI Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
- CVBS Camera PAL/NTSC
- PoC Camera Input Supports HDCVI PoC Cameras
- IP Camera Input 8+4 Channel, each channel up to 8MP
- Audio In/Out 1/1, RCA
- Two-way Talk Reuse audio in/Out, RCA
Recording
- Compression H.265+/H.265/H.264+/H.264
- Resolution 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
- Record Rate Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-/1080P/720P/960H/D1/CIF(1~25/30fps)
Sub steram:960H(1~15fps); D1/CIF(1~25/30fps) - Bit Rate 32Kbps ~ 8192Kbps Per Channel
- Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Record Interval G.711A, G.711U, PCM
- Audio Compression (only for the 1st channel), G.711A, G.711U, PCM
- Audio Sample Rate 8KHz, 16 bit Per Channel
- Audio Bit Rate 64Kbps Per Channel
Display
- Interface 1 HDMI, 1 VGA
- Resolution HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720
- VGA: 1920×1080, 1280×1024, 1280×720
- Multi-screen Display When IP extension mode not enabled:1/4/8/9
- When IP extension mode enabled:1/4/8/9/16
- OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
- Interface 1 RJ-45 Port (1000M)
- Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
- PPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android
- Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
- Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
- Alarm input N/A
- Relay Output N/A
Playback and Backup
- Playback 1/4/9
- Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen,epeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode USB Device/Network
Storage
- Internal HDD 1 SATA Port, up to 10TB capacity
- eSATA N/A
- Auxiliary Interface
- USB 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
- RS232 N/A
- RS485 1 Port, for PTZ Control
Electrical
- Power Supply DC53V
- Power Consumption <15W (Without HDD)
- Max. Power Output < 48W
Construction
- Dimensions Mini 1U, 325mm×255mm×55mm (12.8″ x 10″ x 2.2″)
- Device with PFH101
- Rack Mount Tray
- 483mmx281mmx56mm (19.0″x11.1″x2.2″)
- Net Weight 1.35kg (2.98lb) (without HDD)
- Gross Weight 2.37kg (5.23lb)
- Installation Desktop installation
Environmental
- Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
- Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
- Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
- anyo, Sony, Videotec, Vivotek, and more
Certifications
- Certifications FCC: Part 15 Subpart B
- CE: CE-LVD: EN 60950-1/IEC 60950-1
- CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
