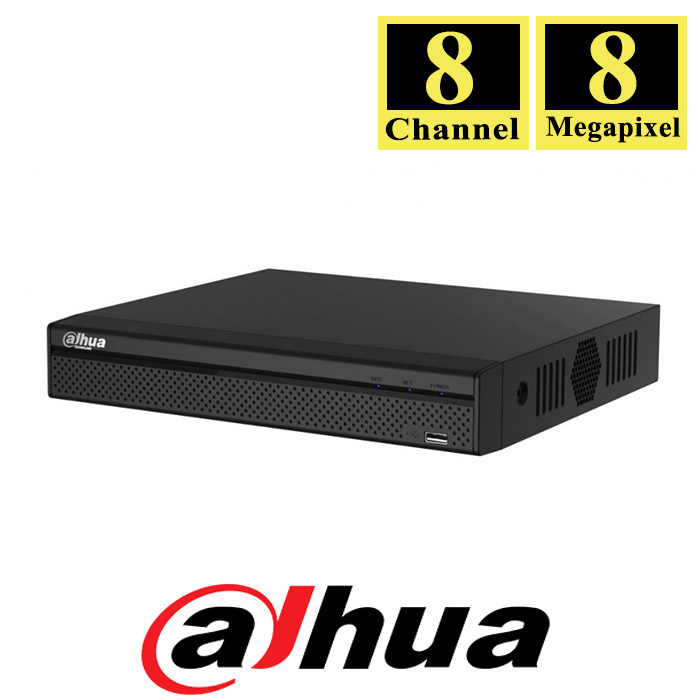

Dahua 8 Ch 8 MP DVR DH-XVR5108HS-4KL-I2
Features:
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 16 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
- Up to 2 channels video stream ( analog channel ) Perimeter Protection
- Up to 8 channels video stream ( analog channel ) SMD Plus
- Up to 2 channels video stream (analog channel ) human face recognition
- IoT & POS functionalities
Dahua DH-XVR5108HS-4KL-I2 Specifications:
System
- Main Processor Embedded Processor
- Operating System Embedded LINUX
Perimeter Protection
- Performance 2 channels, 10 IVS for each channel
- Object classification Human/Vehicle secondary recognition for tripwire and intrusion
- AI Search Search by target classification (Human, Vehicle)
- Face Recognition
Performance
- Max 12 face pictures/sec processing
- 2 channels video stream face recognition, only support analog camera
- Stranger Mode Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually.
- AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management
- Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
Database Application
- Each database can be applied to video channels independently .
Trigger Events
- Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
- Performance 8 channels
- AI Search Search by target classification (Human, Vehicle)
Video and Audio
- Analog Camera Input8 channels, BNC
- 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
- AHD Camera Input , 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
- TVI Camera Input, 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
- CVBS Camera Input PAL/NTSC
- IP Camera Input 8+8 channels, each channel up to 8MP
- Audio In/Out ,1/1, RCA
- Two-way Talk Reuse audio in/out, RCA
Recording
- Compression AI Coding/H.265+/H.265/H.264+/H.264
- Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate
- Main stream: All channel 4K(1fps–7fps); 6MP(1fps–
- 10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps);
- 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps);
Sub steram:
- 960H(1fps–15fps);
- D1/CIF(1fps–25/30fps)
- Bit Rate 32 Kbps–6144 Kbps Per Channel
- Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Record Interval, 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
- Audio Compression G.711A, G.711U, PCM
- Audio Sample Rate 8 KHz, 16 bit Per Channel
- Audio Bit Rate 64 Kbps Per Channel
Display
- Interface 1 HDMI ,1 VGA
Resolution
- HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
- VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multi-screen Display
- When IP extension mode not enabled: 1/4/8/9
- When IP extension mode enabled: 1/4/8/9/16
- OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
- Interface 1 RJ-45 Port (1000 MB)
Network Function
- HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android
- Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
- Trigger Events , Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Video Detection, Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
- Alarm input N/A
- Relay Output N/A
Playback and Backup
- Playback 1/4/9
- Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function
- Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode USB Device/Network
Storage
- Internal , HDD1 SATA Port, up to 10TB capacity
- eSATA N/A
- Auxiliary Interface
- USB2 USB Ports (1 USB 2.0 , 1 USB 3.0)
- RS485 1 Port, for PTZ Control
- RS232 N/A
Electrical
- Power SupplyDC 12V/2A
- Power Consumption (Without HDD) <10W
Construction
- Dimensions Compact 1U, 260 mm × 238 mm × 48 mm (10.24” × 9.34” × 1.87”)
- Net Weight (without HDD) 1.0 kg (2.2 lb)
- Gross Weight 1.4 kg (3.1 lb)
- Installation Desktop installation
Environmental
- Operating Conditions -10°C to +55°C (+14°F to +131°F), 0–90% RH
- Storage Conditions -20°C to +70°C (-4°F to +158°F) , 0–90% RH
- Third-party Support : Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
- FCC: Part 15 Subpart B
- CE: CE-LVD: EN 60950-1/IEC 60950-1
- CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
