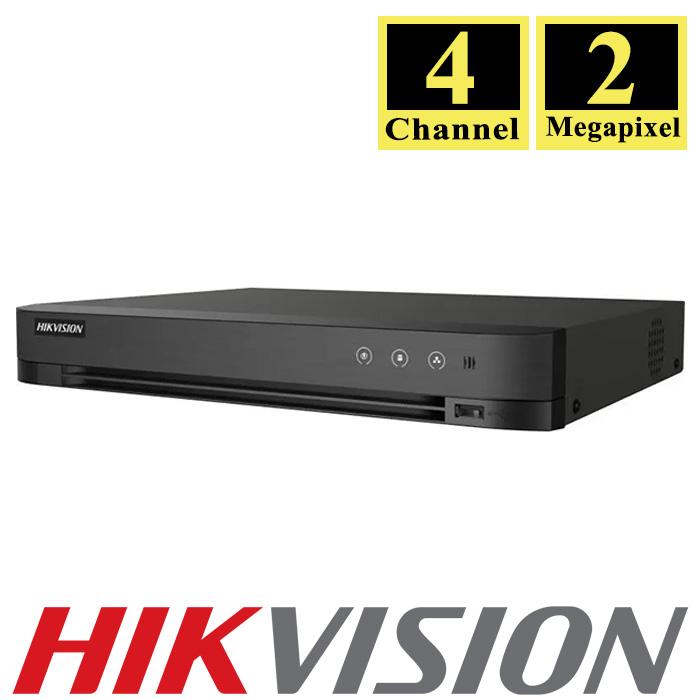

Hikvision 4 Ch 2 MP DVR IDS-7204HQHI-M1/S DVR

The Hikvision 4 Channel 2 MP DVR IDS-7204HQHI-M1/S is a compact and reliable digital video recorder designed for small-scale surveillance systems. This DVR offers advanced features and capabilities to ensure high-quality video recording and management. In this description, we will highlight the key features and benefits of the Hikvision IDS-7204HQHI-M1/S DVR.

The IDS-7204HQHI-M1/S DVR supports up to 4 channels, allowing you to connect multiple cameras for comprehensive surveillance coverage. It is compatible with a wide range of Hikvision analog and HD-TVI cameras, providing flexibility in camera selection.

The DVR supports various recording modes, including continuous, scheduled, and motion detection-based recording. It also offers event-triggered recording, ensuring that critical events are captured and stored for later review.

Equipped with advanced H.265+ video compression technology, the IDS-7204HQHI-M1/S DVR maximises storage efficiency by significantly reducing bandwidth and storage requirements. This allows for longer recording times and cost-effective storage solutions.

Featuring HDMI and VGA outputs, the DVR provides flexible display options, allowing you to connect it to a monitor or TV for live viewing and playback. It also supports remote access, enabling you to monitor your surveillance system from anywhere using a mobile device or computer.

The IDS-7204HQHI-M1/S DVR offers various intelligent features, including motion detection and video analytics, for efficient and accurate video analysis. It also supports audio input/output, allowing for audio recording and two-way audio communication when connected to compatible devices.

Features:

• 4 channels and 1 HDD 1U AcuSense DVR
• False alarm reduction through human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 6 network cameras can be connected.

Hikvision IDS-7204HQHI-M1/S  pecifications:

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle AnalysisUp to 2-ch

Facial Detection

• Facial Detection And CaptureFace picture detection, face picture search

Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

Video And Audio

• IP Video Input

  1-ch (up to 5-ch）

  Up to 6 MP resolution

  Enhanced IP mode on:

  2-ch (up to 6-ch), each up to 4 Mbps

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output

• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous Playback4-ch
• HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

• Total Bandwidth72 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection32
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface2 × USB 2.0
• Alarm In/OutN/A

General

• Power Supply12 VDC, 1.5A
• Consumption≤ 18 W
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight≤ 1.16 kg (2.6 lb)
