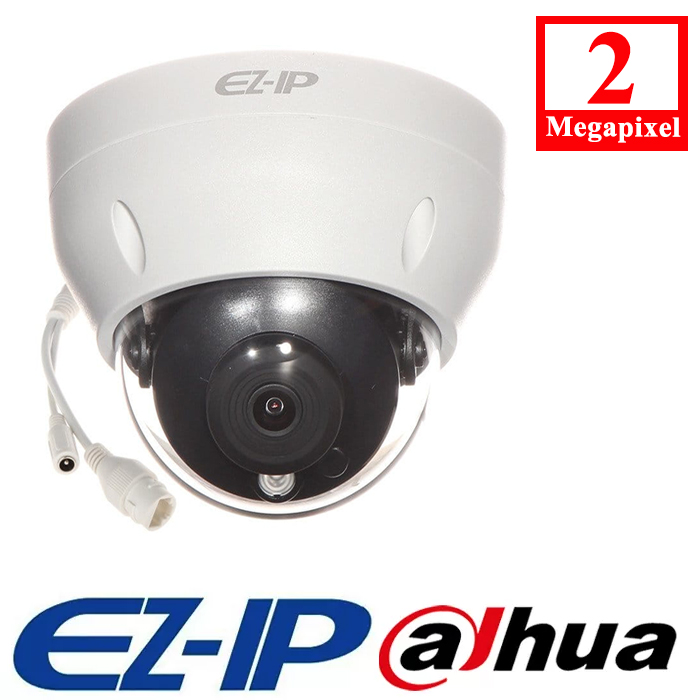

EZ-IP Dahua 2MP 8mm-12mm Lens IPC-D2B20P-L-ZS 30m IR Mini-Dome Network Camera

EZ-IP Dahua is perfect for small to medium size applications like home residential security, small retail shops, and other typical SMB applications. It offers a perfect alternative to migrate from analog to an IP system with its easy to use nature and cost effectiveness. EZ-IP is fully in line with Dahua’s quality. Stable and reliable components are utilised and Various tests such as anti-vibration, water resistance, and ageing tests are performed to ensure Dahua quality standards.

Smart IR

With IR illumination, detailed images can be captured in low light or total darkness. The camera’s Smart IR technology adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDS from whiting out images as they come closer to the camera. The camera’s integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).

Image flip

Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the  camera’s image to be rotated in 90° increments for better video optimisation.

Protection (IP67, wide voltage)

The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) .

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network videoproducts regardless of manufacturer.

Features:

• 1/2.7” 2Megapixel progressive CMOS
• H.265+ & H.265 dual-stream encoding20fps@1080P(1920×1080)
• DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 2.8~12mm varifocal lens
• Max IR LEDs Length 30m
• Micro SD card memory, IP67, PoE

Specifications:

Camera

• Image Sensor 1/2.7” 2Megapixel progresive CMOS
• Effective Pixels 1920(H)x1080(V)
• RAM/ROM 64MB/16MB
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual, 1/3~1/100000sMinimum Illumination 0.05Lux/F1.8( Colour,1/3s,30IRE)
• 0.3Lux/F1.8( Colour,1/30s,30IRE)
• 0Lux/F1.8(IR on)
• S/N Ratio More than 40dB
• IR Distance Distance up to 30m(98ft)
• IR On/Off Control Auto/ Manual
• IR LEDs 2

Lens

• Lens Type Motorised
• Mount Type Board-in
• Focal Length 2.8mm~12mm
• Max. Aperture F1.8
• Angle of View H:105°~33°, V:56°~18°
• Focus Control Motorised
• Close Focus Distance 0.2m(0.66ft)
• DORI Distance Lens Detect Observe Recognise Identify
• W 44m(144.4ft) 17.6m(57.7ft) 8.8m(28.9ft) 4.4m(14.4ft)
• T 133m(436.4ft) 53m(173.9ft) 27m(88.6ft) 13m(42.7ft)

PTZ

Pan/Tilt Range Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°

Intelligence

Event Trigger Motion detection, Video tampering , Network disconnection , Scene change, IP address conflict, Illegal Access,Storage anomaly

Video

• Compression H.265/H.264/H.264B/MJPEG(Sub Stream)
• Smart Codec Support H.265+/H.264+
• Streaming Capability 2 Streams
• Resolution 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)
• Frame Rate Main Stream: 1080P(1 ~ 20fps)
• Sub Stream: 1.3M(1 ~ 25/30fps)
• Bit Rate Control CBR/VBR
• Bit Rate H.264: 32K~6144K
• H.265: 12K~ 6144K
