GJD GJD392 500m wireless receiver with an expandable amount of channels

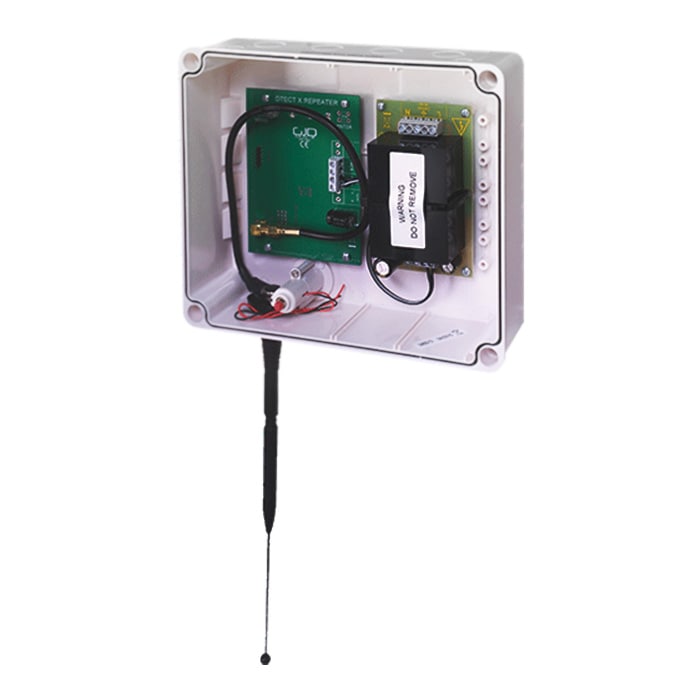

The D-TECT X Receiver is a 500-metre range, 4 channel receiver expandable to 16 channels. The receiver is compatible with the D-TECT X ranges of wireless detectors and communication using 868MHz transmission protocol.

This D-TECT X receiver can be expanded with the addition of up to three further 4 channel expansion modules. This allows the receiver unit to monitor the active state of up to 16 wireless D-TECT X movement detectors.

GJD GJD392 Specifications:

• Indicators (per detector) 1 x LED Detection 1 x LED Tamper 1 x LED RF loss 1 x LED Low battery indication
• Operating Temperature -20ºC to +55ºC Conformally coated electronics for increased stability
• Connections 1 x program socket for detectors. Expansion socket for connection to additional modules
• Outputs (per Detector) 2 volt-free, silent solid state magnetically immune contacts 2 neg. Switched plus one common tamper (front and rear switches) 1 RF Loss, 1 Low battery
• Capacity 4 detector module fitted as standard, 3 slots for additional 4 channel expansion modules (total 16 detectors)
• Case High impact, flame retardant, UV stabilized Polycarbonate
• Protection Housing Minimum IP55
• Dimensions 210 × 180 × 75 mm (excluding aerial)
• Weight 658g NET, 720g GROSS
• 500 m Wireless Receiver
• Communication Range: Up to 500 m (line of sight)
• Communication Codes 16,700,000, 868MHz
• Power Input 12 – 24V AC/DC
