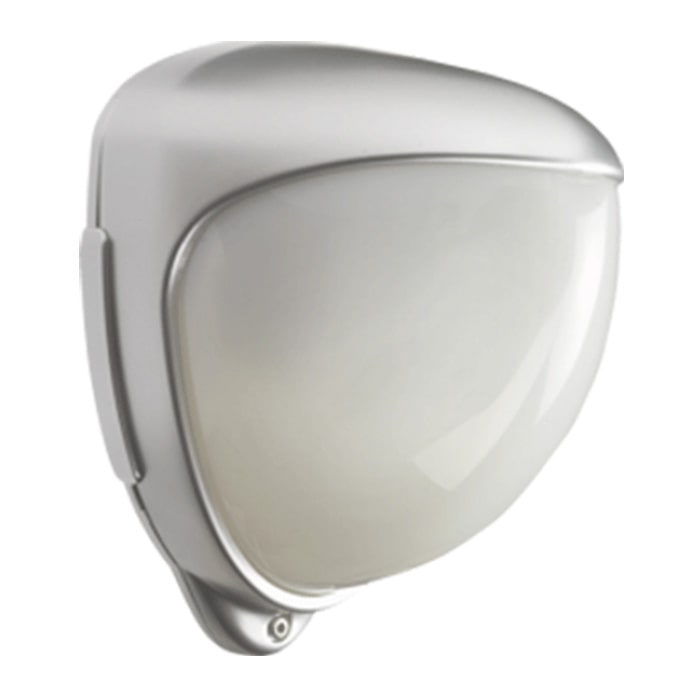

GJD GJD430 D-TECT X MKIII 30m Wireless PIR

The BS8418 compliant D-TECT X detectors all feature quad PIR sensor modules, stylish IP65 fully tampered housings with a discreet internal antenna. Units accept 2 × 3 volt CR123 batteries, 500 m RF transmission range on 868MHz and individual code for pairing to the receiver. The receiver (GJD392) can be linked in its base form to 4 detectors and this can then be expanded up to 16 detectors, with the use of the GJD393 4-way expansion module. Due to the number.

GJD GJD430 Specifications:

• Transmission Range: 500 m line of sight
• Detection Range: 30 × 30 m
• Detector orientation: 180° pan & 90° tilt
• Mounting Height: Up to 6 m – Optimum 3 m
• Tamper Switches: Front & rear tamper switches, case open and removal from wall
• Pulse Count: 1 – 2
• Photocell: Dusk (2 Lux) to 24 hours
• Housing: High Impact ABS
• Protection Rating: IP65
• Adjustable pan and tilt
• Available in a range of beam lengths
• Discreet internal antenna
• Wireless technology Twin PIRs
• Great for temporary installations
• Aesthetically pleasing design

D-TECT X MKIII Wireless Detectors

The BS8418 compliant D-TECT X detectors all feature quad PIR sensor modules, stylish IP65 fully tampered housings with a discreet internal antenna. Units accept 2 × 3 volt CR123 batteries, 500 m RF transmission range on 868MHz and individual code for pairing to the receiver.

The receiver (GJD392) can be linked in its base form to 4 detectors and this can then be expanded up to 16 detectors, with the use of the GJD393 4-way expansion module.

Due to the number of individual detector codes (in excess of 16M), multiple receivers can be used on any site.
