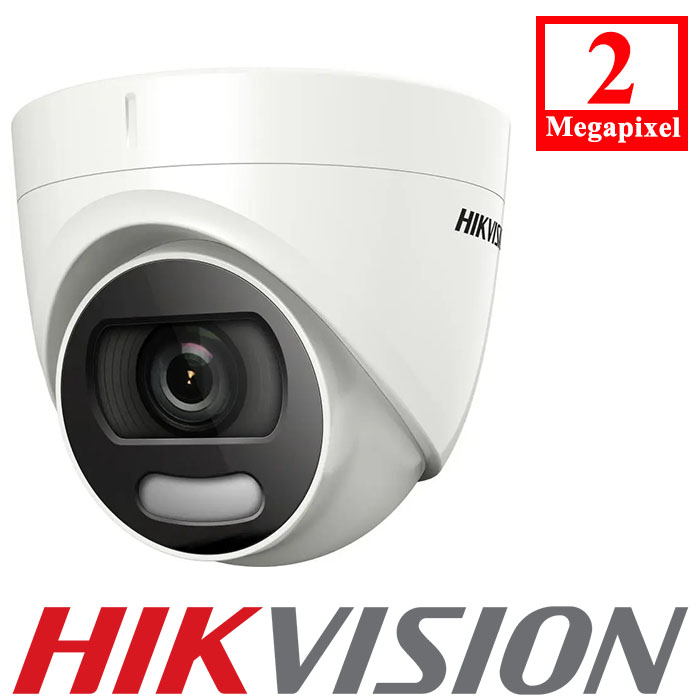

Hikvision 2 MP 2.8mm Lens 20m IR DS-2CE72DFT-F28 Turret Camera

The Hikvision 2 MP 2.8MM Camera DS-2CE72DFT-F28 is a high-quality surveillance camera designed for indoor and outdoor security applications. With its advanced features and superior image quality, it provides effective monitoring and surveillance in various environments.

Featuring a 2 MP resolution, this camera captures clear and detailed video footage, ensuring accurate identification of subjects and objects. The 2.8mm fixed lens provides a wide-angle view, covering a larger area and reducing the number of cameras required for comprehensive surveillance.

Equipped with advanced infrared (IR) technology, the DS-2CE72DFT-F28 delivers reliable night vision capabilities, ensuring visibility even in low-light or complete darkness. It provides a specified range of IR illumination, enabling 24/7 surveillance.

The camera’s durable and weatherproof housing is rated IP67, providing protection against dust and water, making it suitable for outdoor installations. It is built to withstand harsh environmental conditions, ensuring reliable performance in challenging weather.

The DS-2CE72DFT-F28 supports various smart features, including intrusion detection, line crossing detection, and region entrance/exit detection, enhancing its ability to detect and alert to potential security threats. It also offers digital noise reduction (DNR) and wide dynamic range (WDR) for improved image quality in different lighting conditions.

This Hikvision camera supports Power over Coax (PoC), simplifying installation by transmitting power and data over a single coaxial cable. It is compatible with Hikvision’s intuitive software and mobile app, enabling convenient remote access and management.

In summary, the Hikvision 2 MP 2.8MM Camera DS-2CE72DFT-F28 is a reliable and feature-rich surveillance solution suitable for indoor and outdoor security applications. With its high-resolution imaging, advanced night vision capabilities, and durable construction, it offers effective monitoring and surveillance for enhanced security in various environments.

Features:

• 2 MP full time colour Turret camera
• 24/7 full colour imaging
• 2.8 mm fixed focal lens
• Warm supplemental light with 20 m range
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Hikvision DS-2CE72DFT-F28 Specifications:

Camera

• Image Sensor 2 MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

• PAL: 1/25 s to 1/50, 000 s
• NTSC: 1/30 s to 1/50, 000 s

• Day & Night Colour
• Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
• Signal System PAL/NTSC

Lens

• Lens Type 2.8 mm fixed lens
• Focal Length & FOV2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°
• Lens MountM16


• Image Parameters Switch STD/HIGH-SAT
• Image Settings Brightness, Sharpness, 3D DNR, Mirror, Smart light

Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

• Day/Night Mode Colour
• Wide Dynamic Range (WDR)130 dB
• Image Enhancement BLC,HLC
• White Balance ATW/MANUAL
• AGC Support

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS

General

• Material

  Main Body: Metal

  Enclosure: Plastic

• Dimension Ø 109.82 mm × 85.56 mm ( Ø 4.32″ × 3.37″)
• Weight Approx. 336 g (0.74 lb.)
• Operating Condition -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• Communication HIKVISION-C
• Language English
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adaptor to supply the power for one camera.

Consumption

• Max. 3 W
• White Light Range Up to 20m

Approval

• Protection IP67
