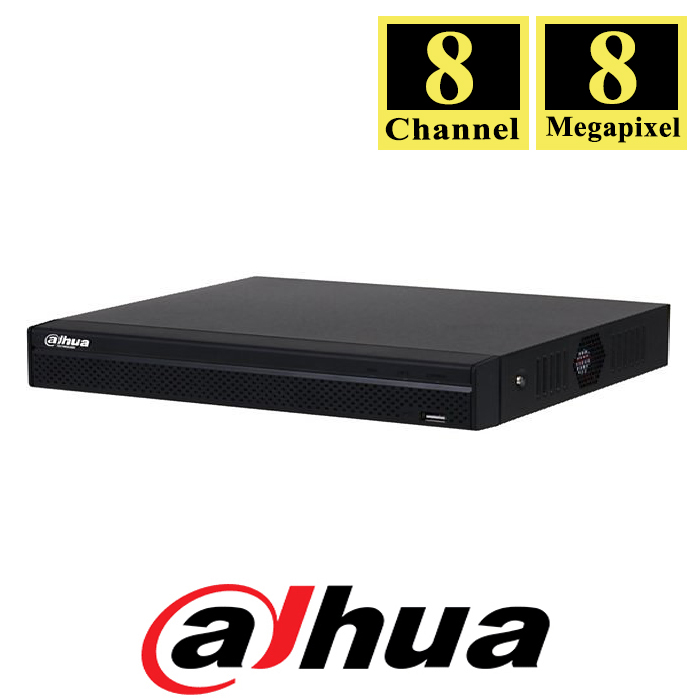

Dahua 8 Ch 8MP DHI-NVR4208-8P-4KS2 Lite NVR

Dahua 8 Ch 8MP DHI-NVR4208-8P-4KS2 Lite NVR

Features:

• Smart H.265+/H.265/Smart H.264+/H.264
• Max 200Mbps Incoming Bandwidth
• Up to 8MP Resolution for Preview and Playback
• Up to 2ch@4K/8ch@1080P decoding
• HDMI/VGA simultaneous video output
• Support IPC UPnP, 8PoE ports

Dahua DHI-NVR4208-8P-4KS2 Specifications:

System

• Main Processor
• Industrial embedded micro-processor

Operating System

• Embedded Linux
• Operation Interface
• Web; local GUI
• Perimeter Protection by Camera

Performance

• 8 channels

AI Search

• Search for pictures by channel, time and event type

SMD Plus by Camera

• Performance: 8 channels
• AI Search: Search by target classification (human, vehicle)

Video

• Access Channel 8
• Network Bandwidth: 200 Mbps for access, 200 Mbps for storage and 96 Mbps for forwarding

Resolution

• 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more

Decoding Capability: 8 channels@1080p (30 fps)

Video Output

• HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
• VGA: 1920 × 1080; 1280 × 1024; 1280 × 720
• Multi-screen DisplayL 1/4/8/9

Third Party Camera Access

• Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more

Compression

• Video: Smart H.265+; Smart H.264+; H.265; H.264
• Audio: PCM; G.711A; G.711U; G.726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P

Mobile Phone Access: Android; iOS

Interoperability: ONVIF (profile T/S/G); CGI; SDK

Browser

• Chrome; IE9 or later; Firefox

Record Playback

• Multi-channel Playback: 1/4/9
• Record Mode: Manual; schedule (general; MD; alarm; MD & alarm; intelligent)
• Storage Method: Local HDD and network
• Backup: USB device

Playback Function

1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off

Storage

Disk Group : Yes

Alarm

• General Alarm: Motion detection; privacy masking; video loss; PIR alarm; IPC alarm
• Anomaly Alarm Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly
• Intelligent Alarm Perimeter protection; SMD; people counting; heat map
• Alarm Linkage: Record; snapshot; IPC external alarm output; buzzer; log; preset; email

External Port

• Audio Input: 1 channel, RCA connector
• Audio Output: 1 channel, RCA connector, which support voice intercom output

HDD

• 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
• Alarm Input: 4 channels
• Alarm Output: 2 channels
• USB: 1 front USB 2.0 port, 1 rear USB 3.0 port
• HDMI: 1
• VGA: 1

Network

• 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port

PoE: 8 ports (IEEE802.3at/af)

General Parameter

Power Supply: Single, 100V–240V AC, 50 Hz–60 Hz

Power Consumption

• NVR: < 9.6W (without HDD)
• PoE: Max 25.5W for single port, 130W in total
• Net Weight: 2.6 kg (5.7 lb) (without HDD)
• Gross Weight : 4 kg (8.8 lb) (without HDD)

Product Dimensions

• 375.0 mm × 327.4 mm × 53.0 mm (14.8″ × 12.9″ × 2.1″)
• Package Dimensions: 429 mm × 360 mm × 137 mm (16.9″ × 14.2″ × 5.4″)
• Operating Temperature: -10°C to +55°C (+14°F to +131°F)
• Storage Temperature: 0°C to +40°C (+32°F to +104°F)
• Operating Humidity: 10%–93% (RH)
• Storage Humidity: 30%–85% (RH)
• Operating Altitude 3,000 m (9,843 ft)

Certifications

• CE: EN55032; EN55024; EN50130-4; EN60950-1
• FCC: Part 15 Subpart B; ANSI C63.4-2014
• UL: UL 60950-1
