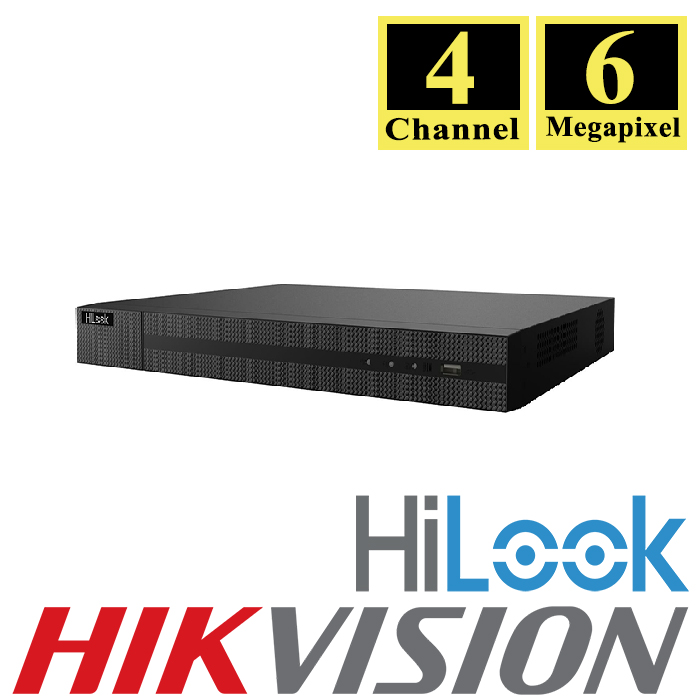

The Hilook By Hikvision 4 Channel Mini 1U PoE NVR-104MH-D/4P is a compact and reliable network video recorder designed for small-scale surveillance systems. This NVR offers seamless integration with Hilook By Hikvision IP cameras, providing a comprehensive and efficient solution for video recording and management.
With support for up to four channels, the NVR-104MH-D/4P allows simultaneous recording and playback of multiple cameras. It offers PoE (Power over Ethernet) functionality, eliminating the need for separate power cables and simplifying installation.
The Mini 1U form Factor of this NVR makes it suitable for space-constrained environments. It can be easily mounted in a rack or on a desktop, offering flexibility in installation options.
The NVR-104MH-D/4P supports H.264+ video compression, maximising storage efficiency without compromising on video quality. It also offers various recording modes, including manual, scheduled, and motion detection, allowing users to customise their recording settings based on their specific requirements.
Remote access is made easy with the Hilook By Hikvision mobile app, which enables users to view live feeds, playback recorded footage, and manage the NVR remotely from their smartphones or tablets. This provides convenience and flexibility for monitoring and managing the surveillance system on the go.
The Hilook By Hikvision 4 Channel Mini 1U PoE NVR-104MH-D/4P is equipped with HDMI and VGA video outputs, allowing for high-definition display on monitors or TVs. It also supports audio input and output, enabling users to record and listen to audio along with video.
Features:
- H.265+/H.265/H.264+/H.264 video compression
- Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 4-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- HDMI and VGA simultaneous output
Hilook By Hikvision NVR-104MH-D/4P Specifications;
Video And Audio
IP Video Input
- 4-ch
- Up to 6 MP resolution
- Incoming Bandwidth 40 Mbps
- Outgoing Bandwidth 60 Mbps
- HDMI Output 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode HDMI/VGA simultaneous output
Decoding
- Decoding Format H.265+/H.265/ H.264+/H.264
- Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback4-ch
- Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
- Stream Type Video, Video & Audio
Network
- Remote Connection 16
- Network Protocol TCP/IP, DHCP, HiLook Vision, DNS, DDNS, NTP, SADP, SMTP, UPnPâ„¢
- Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE
- Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 36 W
- Standard IEEE 802.3 af/at
Auxiliary Interface
- SATA1 SATA interface
- Capacity Up to 6 TB capacity for each disk
- Alarm In/Out N/A
- USB Interface Rear panel: 2 × USB 2.0
General
- Power Supply48 VDC, 1 A
- Consumption≤ 10 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
- Weight≤ 1 kg (without HDD, 2.2 lb.)
Certification
- CEEN50130-4, EN 61000-3-2,EN 61000-3-3
