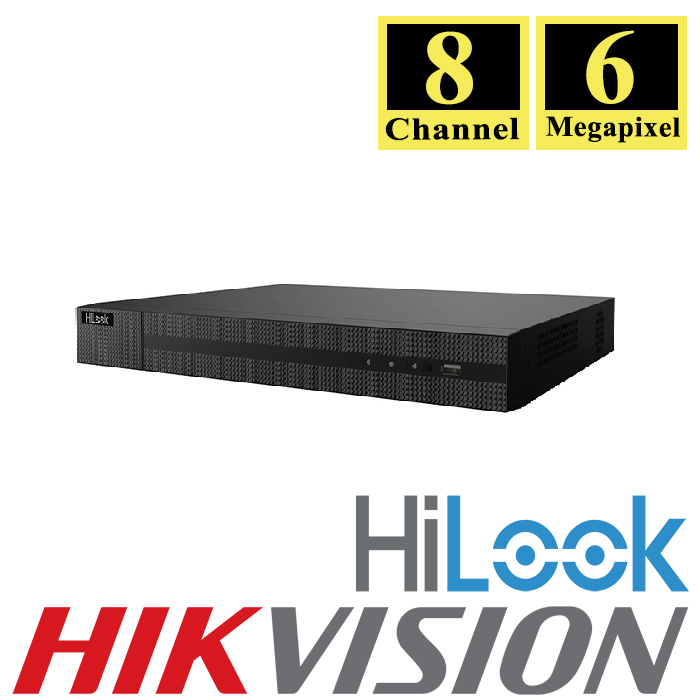

Hilook By Hikvision 8 Ch 6M NVR-108MH-D/8P Mini 1U PoE

The Hilook By Hikvision 8 Channel Mini 1U PoE NVR-108MH-D/8P is a compact and powerful network video recorder designed for small to medium-sized surveillance systems. With its 8-channel capacity, it allows for simultaneous recording and playback of up to 8 video channels, providing comprehensive coverage.

This Hilook By Hikvision 8 Channel Mini 1U PoE NVR-108MH-D/8P supports PoE (Power over Ethernet) technology, which simplifies the installation process by delivering power and data transmission over a single Ethernet cable. It eliminates the need for separate power cables, reducing cable clutter and making setup more efficient.

The NVR is compatible with a wide range of Hilook By Hikvision cameras and supports up to 8 IP cameras with a maximum resolution of 8 MP. It offers various recording modes, including continuous, scheduled, and motion detection-based recording, providing flexibility in recording options based on specific surveillance requirements.

With H.265+ video compression, the NVR optimises storage efficiency, allowing for longer recording times while minimising storage space requirements. It supports multiple storage options, including internal hard drives and network-attached storage (NAS), providing ample storage capacity for video retention.

The NVR offers remote access capabilities, allowing users to monitor their surveillance system from anywhere using a web browser or mobile application. It supports various network protocols and offers secure access with password protection and encrypted data transmission.

Additionally, the NVR features HDMI and VGA outputs for connecting to external monitors or TVs, providing convenient local display options. It also supports multiple network connectivity options, including Ethernet ports for camera connections and USB ports for data backup and device management.

Features:

• H.265+/H.265/H.264+/H.264 video compression
• Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
• Up to 8-ch network camera inputs
• Up to 4-ch 1080p decoding capability
• HDMI and VGA simultaneous output

Hilook By Hikvision NVR-108MH-D/8P  Specifications:

Video And Audio

• IP Video Input
• 8-ch
• Up to 6 MP resolution

• Incoming Bandwidth60 Mbps
• Outgoing Bandwidth60 Mbps
• HDMI Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode HDMI/VGA simultaneous output

Decoding

• Decoding Format H.265+/H.265/ H.264+/H.264
• Recording Resolution 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback 4-ch
• Decoding Capability 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream Type Video, Video & Audio

Network

• Remote Connection16
• Network Protocol TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 75 W
• StandardIEEE 802.3 af/at

Auxiliary Interface

• SATA1 SATA interface
• Capacity Up to 6 TB capacity for each disk
• Alarm In/Out N/A
• USB Interface Rear panel: 2 × USB 2.0

General

• Power Supply48 VDC, 1.8 A
• Consumption≤ 10 W (without HDD and PoE off)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
• Weight≤ 1 kg (without HDD, 2.2 lb.)

Certification

• CEEN50130-4, EN 61000-3-2,EN 61000-3-3
