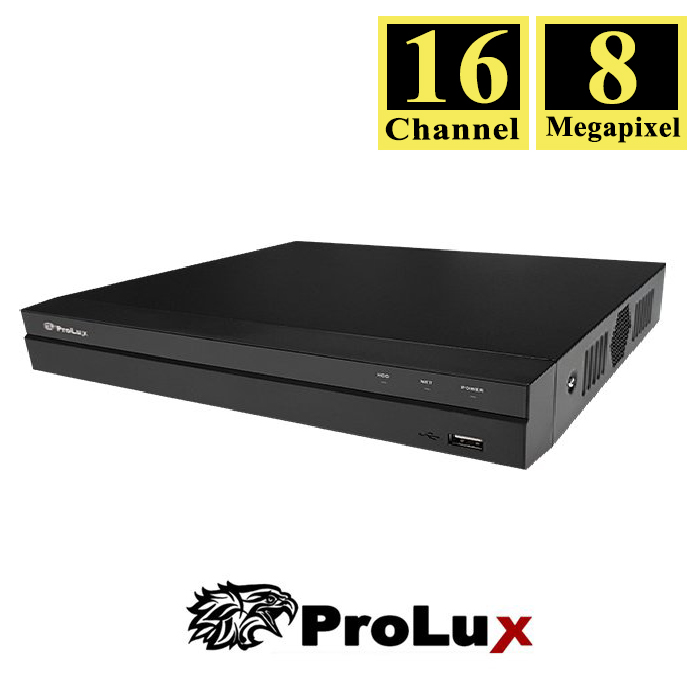

The Prolux 16 Channel 4K Pro NVR PXN-5216-16P-4KS2E is a network video recorder (NVR) manufactured by Prolux. It is designed to provide high-quality video recording and management for surveillance systems.
- Channels: It supports up to 16 channels, allowing you to connect and record footage from up to 16 different cameras simultaneously.
- Resolution: The NVR supports 4K Ultra HD resolution, providing detailed and high-quality video recording.
- PoE Ports: It has built-in Power over Ethernet (PoE) ports, specifically 16 PoE ports, which can power compatible cameras directly through the Ethernet cables, eliminating the need for separate power supplies.
- Storage: The NVR offers various storage options, including multiple hard drive bays for internal storage. The specific storage capacity may vary depending on the configuration and hard drives used.
- Video Compression: It supports advanced video compression formats like H.265 and H.264, which help optimise storage space without compromising video quality.
- Remote Access: The NVR allows remote access to the recorded footage and live view through a web browser or dedicated mobile apps. This enables users to monitor their surveillance system from anywhere with an internet connection.
- Network Connectivity: It supports Ethernet connectivity for connecting to your local network, enabling communication with cameras and remote access.
- Additional Features: The NVR may come with various additional features such as motion detection, event notifications, digital zoom, and multi-channel playback for convenient surveillance management.
Features:
- Up to 8 Megapixels (8MP) IP camera support
- Third-party network camera support
- Support 1-ch HDMI, 1-ch VGA, at up to 4K (3840×2160) resolution
- 16-ch network cameras can be connected with incoming bandwidth speeds of up to  160 Mbps
- Support dual-os to ensure higher reliability of system running
- Plug & Play with up to 8 independent ePoE network interfaces and 16 PoE network interfaces
- Support various VCA detection alarm and VCA search
- Support H.264/MPEG4 video formats
Prolux PXN-5216-16P-4KS2E Specification:
System
- Main Processor Quad-core embedded processor
- Operating System Embedded LINUX
Audio and Video
- IP Camera Input 16/32 Channel
- Two-way Talk 1 Channel Input, 1 Channel Output, RCA
- DisplayInterface 1 HDMI, 1 VGA
- Resolution HDMI: 3840 × 2160 , 1920 × 1080 , 1280 × 1024,
- 1280 × 720 , 1024 × 768
- VGA: 1920 × 1080 , 1280 × 1024,
- 1280 × 720 , 1024 × 768
- Decoding Capability 4-ch@8MP(30fps), 16-ch@1080P(30fps)
- Multi-screen Display 16CH: 1/4/8/9/16
- 32CH: 1/4/8/9/16/25/36
- OSD Camera title, Time, Camera lock, Motion detection, Recording
- Recording
- Compression Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
- Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
- Bit Rate 16Kbps ~ 20Mbps Per Channel
- Record Mode Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
- Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
- Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
- Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
- Alarm input 4 Channel
- Relay Output 2 Channel
Playback and Backup
- Sync Playback 1/4/9/16
- Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous
- amera, Full Screen, Backup Selection, Digital Zoom
- Backup Mode USB Device/Network
Third-party Support
Third-party Support Arecont Vision, Airlive, AXIS, Canon, Dynacolour, JVC, LG, Panasonic, Pelco, PSIA, Samsung,
anyo, Sony, Watchnet and more
Network
- Interface 1 RJ-45 Ports (10/100/1000Mbps)
- PoE 16 ports (IEEE802.3af/at)
- 1-8 ports support ePoE & EoC
- Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP
- ilter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4IP
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android
- Interoperability ONVIF 2.4, SDK, CGI
Storage
- Internal HDD 2 SATA III Ports, Up to 10 TB capacity for each HDD
- eSATA N/A
- Auxiliary Interface
- USB 2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )
- RS232 1 Port, for PC Communication and Keyboard
- RS485 1 Port, for PTZ control
Electrical
- Power Supply Single, AC100V ~ 240V, 50 ~ 60 Hz
- Power Consumption NVR: <15.2W (Without HDD)
- PoE: Max 25.5W for single port
- 130W total rated power, 80% control for protection
- Fan Smart fan, automatically adjust running speed
Environmental
- Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
- Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
- Dimensions 1U, 375mm x 326.5mm x 53mm ;
- (14.8″ x 12.9″ x 2.1″)
- Net Weight 2.7kg (6.0 lb) (without HDD)
- Gross Weight 4kg (8.8 lb) (without HDD)
Certifications
- CE EN55032, EN55024, EN50130-4, EN60950-1
- FCC Part 15 Subpart B, ANSI C63.4-2014
- UL UL 60950-1
