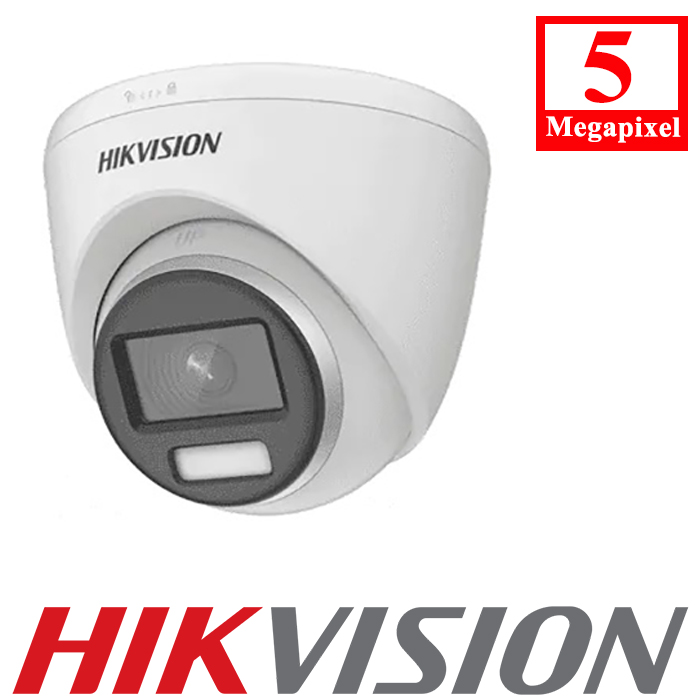

Hikvision 5 MP 2.8 mm and 3.6 mm Lens 40m IR DS-2CE72KF0T-FS Camera

The Hikvision 5 MP 2.8MM Camera DS-2CE72KF0T-FS is a high-performance surveillance camera designed to deliver exceptional image quality and reliable monitoring capabilities. With its advanced features and robust construction, it is suitable for a wide range of security applications.

Featuring a 5 MP resolution, this camera captures clear and detailed video footage, ensuring accurate identification of subjects and objects. The 2.8mm fixed lens provides a wide-angle view, covering a larger area and reducing the number of cameras required for comprehensive surveillance.

Equipped with advanced infrared (IR) technology, the Hikvision 5 MP 2.8MM Camera DS-2CE72KF0T-FS offers reliable night vision capabilities, allowing for round-the-clock surveillance. It provides a specified range of IR illumination, ensuring visibility even in low-light or complete darkness.

The camera is designed to withstand harsh environmental conditions with its IP67-rated weatherproof housing, providing protection against dust and water. It is also equipped with an IK10-rated vandal-resistant housing, making it resistant to physical attacks and ensuring its durability.

The Hikvision 5 MP 2.8MM Camera DS-2CE72KF0T-FS  supports HD-TVI technology, allowing for seamless integration with existing analog systems while providing high-definition video quality. It offers advanced features such as digital noise reduction (DNR) and wide dynamic range (WDR), ensuring optimal image quality in various lighting conditions.

This Hikvision camera supports Power over Coax (PoC), simplifying installation by transmitting power and data over a single coaxial cable. It is compatible with Hikvision’s user-friendly software and mobile app, enabling convenient remote access and management.

In summary, the Hikvision 5 MP 2.8MM Camera DS-2CE72KF0T-FS is a reliable and feature-rich surveillance solution. With its high-resolution imaging, advanced night vision capabilities, and durable construction, it provides effective monitoring and security for various applications, including both indoor and outdoor environments.

Features:

• High quality imaging with 3K, 2960 × 1665 resolution
• 24/7 colour imaging with F1.0 aperture
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
• High quality audio with audio over coaxial cable, built-in mic

Hikvision DS-2CE72KF0T-FS Specifications:

Camera

• Image Sensor3K CMOS
• Signal System PAL/NTSC
• Resolution 2960 (H) × 1665 (V)
• Frame Rate

  TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps

  AHD: 5 MP@20fps, 4 MP@25fps/30fps

  CVI: 4 MP@25fps/30fps

  CVBS: PAL/NTSC

• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens 2.8 mm and 3.6 mm fixed focal lens

Field Of View

2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°

3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°

• Lens MountM12
• Light Alarm Solid Light Alarm (White Light)
• Day & Night24/7 Colour Imaging
• WDR (Wide Dynamic Range)Digital WDR
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°


• White Light Auto/Off
• Image Mode STD/HIGH-SAT/HIGHLIGHT
• AGC Yes
• Day/Night Mode Colour
• White Balance Auto/Outdoor/Global/Manual
• AE (Auto Exposure) Mode BLC;HLC; Global; HLS;DWDR
• Noise Reduction2D DNR
• Language English
• Function Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS
• Audio In Built-in mic

General

• Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC ± 25%,

  *You are recommended to use one power adaptor to supply the power for one camera.

• Consumption Max. 3.5 W
• Protection LevelIP67
• Material Main body: Metal, Enclosure: Plastic
• White Light RangeUp to 40 m
• CommunicationHIKVISION-C
• DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
• WeightApprox. 318 g (0.70 lb.)
