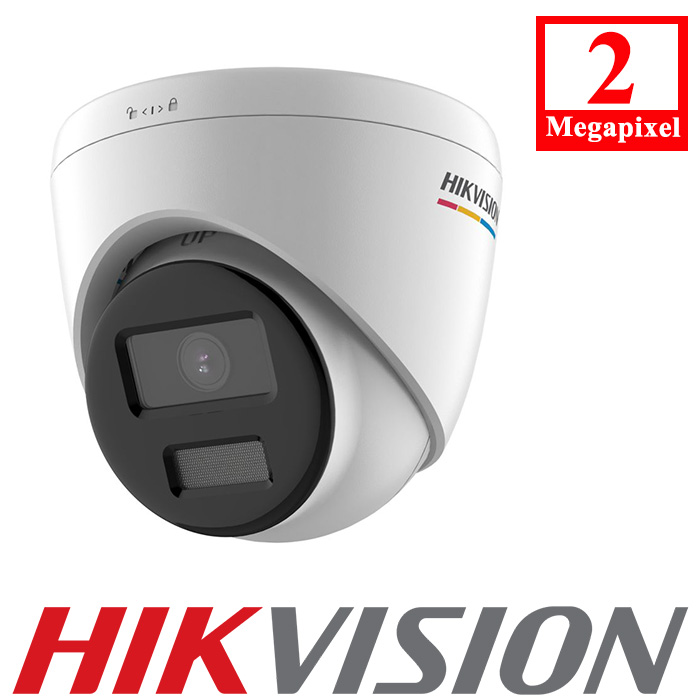

The Hikvision DS-2CD1327G0-L is a security camera that offers a fixed focal length of 2.8 mm. It has a closest focusing distance of 1.7 metres, allowing for clear monitoring of objects within this range. The lens viewing angle is 107 degrees horizontally, 56 degrees vertically, and 127 degrees diagonally, providing a wide field of view for comprehensive surveillance.
In terms of network connectivity, the camera supports IEEE 802.3af networking standards, ensuring compatibility and seamless integration into existing networks. It is capable of utilising various network protocols such as TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, and SSL/TLS. This ensures flexibility in network configuration and ease of remote management.
The camera features a Fast Ethernet interface, facilitating high-speed data transfer and reliable connectivity. However, it does not support Wi-Fi or Bluetooth connectivity options. Advanced features include Back Light Compensation (BLC) and Highlight Compensation (HLC) functionalities, which enhance image clarity in challenging lighting conditions. Additionally, the camera supports Region of Interest (ROI) encoding, enabling selective monitoring of specific areas within the camera’s field of view.
Constructed with quality materials, the Hikvision DS-2CD1327G0-L ensures durability and longevity. Its sleek and compact design allows for easy installation and discreet placement. Overall, the Hikvision DS-2CD1327G0-L security camera offers a wide viewing angle, flexible network compatibility, and advanced image enhancement features, making it a reliable choice for comprehensive surveillance applications.
Features:
- High quality imaging with 2 MP resolution
- Excellent low-light performance
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- 24/7 colourful imaging
Hikvision Specifications:
Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Min. Illumination Colour: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter Speed1/3 s to 1/100, 000 s
- Slow Shutter Yes
- Wide Dynamic Range Digital WDR
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1°
4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5°
- Lens MountM12
- Focus Fixed
- Aperture F1.0
DORI
- DORI
2.8 mm, D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m
4 mm, D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
Illuminator
- Smart Supplement LightYes
- White Light RangeUp to 30 m
Video
- Max. Resolution 1920 × 1080
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Region Of Interest (ROI)1 fixed region for main stream
Audio
- Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate-UF: 8 kHz/16 kHz
- Environment Noise Filtering-UF: Yes
Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface, ISAPI
- User/Host Up to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
- Day/Night Switch Day, Night, Auto, Schedule
- Image Enhancement BLC, 3D DNR
Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
- Built-In Microphone-UF: Yes
- Hardware Reset-UF: Yes
Event
- Basic Event Motion detection, video tampering alarm, exception
General
- Linkage MethodUpload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture
- Camera MaterialMetal & Plastic
- Camera DimensionØ109.9 mm × 103.6 mm (Ø4.33″ × 4.08″)
- Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
- Camera WeightApprox. 370 g (0.82 lb.)
- With Package WeightApprox. 580 g (1.28 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Web Client LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Firmware VersionV5.5.122
- Power Consumption And Current
12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
- Power Supply
12 VDC ± 25%
PoE: 802.3af, Class 3
- Power InterfaceØ5.5 mm coaxial power plug
Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
KC (KN 32: 2015, KN 35: 2015)
Safety
- UL (UL 60950-1);
- CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
- CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
- BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
- CE-RoHS (2011/65/EU);
- WEEE (2012/19/EU);
- Reach (Regulation (EC) No 1907/2006)
- Protection IP67 (IEC 60529-2013)
