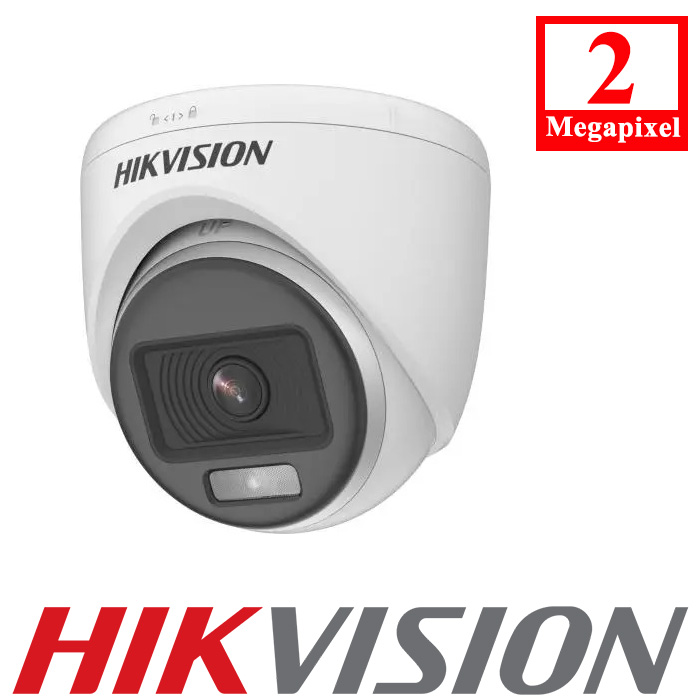

Equipped with a 2.8mm wide-angle lens, the Hikvision DS-2CE70DF0T-PF-2.8mm offers a broad field of view, allowing for comprehensive coverage of large areas. It is suitable for monitoring retail spaces, offices, and other indoor environments where wide coverage is essential.

The Hikvision DS-2CE70DF0T-PF-2.8mm supports multiple video formats, including HDTVI, AHD, CVI, and CVBS, ensuring compatibility with different surveillance systems. It offers flexible installation options and can be easily integrated into existing security setups.

With its compact and vandal-resistant design, this dome camera is suitable for both ceiling and wall-mounted installations. It features a weatherproof housing, making it suitable for indoor environments where protection against dust and moisture is required.

The Hikvision DS-2CE70DF0T-PF-2.8mm supports smart infrared technology for excellent night vision capabilities. It automatically adjusts the intensity of the infrared LEDs based on the distance to the subject, ensuring clear and detailed images even in complete darkness.

Features:

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 colour imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm, 6 mmfixed focal lens
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)

Hikvision DS-2CE70DF0T-PF Specifications:

Camera

• Image Sensor 2 MP CMOS
• Max. Resolution 1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Signal System PAL/NTSC
• Light AlarmSolid Light Alarm (White Light)

Lens

• Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

  3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

  6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

• Lens Mount M12

Illuminator

• Supplement Light Type White Light
• Supplement Light Range Up to 20 m
• Smart Supplement Light Yes


• Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
• Image Settings Brightness, Mirror, Sharpness, Anti-Banding, AGC
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Day/Night Mode Colour
• Wide Dynamic Range (WDR)Digital WDR
• Image Enhancement DWDR, BLC, HLC, Global
• Noise Reduction3D DNR/2D DNR
• White Balance Auto/Manual

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS

General

• Material Plastic
• DimensionΦ 85.02 mm × 81.25 mm (Φ 3.35″ × 3.2″)
• Weight Approx. 161 g (0.36 lb)
• Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• Communication HIKVISION-C
• Language English

Power

12 VDC ± 25%, Max. 2.4 W
