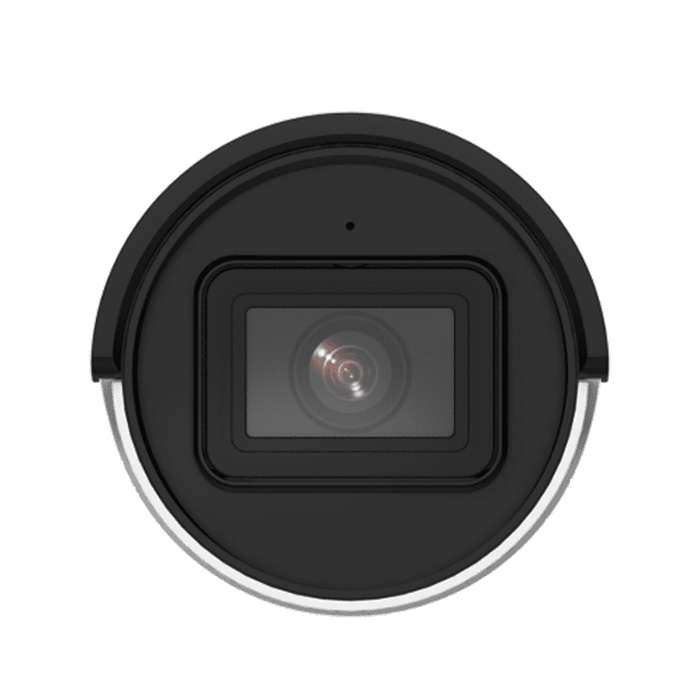

Hikvision DS-2CD2066G2-IU(2.8MM)(C) 6MP 2.8mm fixed lens IP mini bullet Camera 40m IR

• 6MP high resolution
• Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
• Excellent low-light performance via powered-by-DarkFighter technology
• Triple stream
• Up to 40 m IR distance
• H.265+ compression
• 4 analytics
• Face Capture
• Smart motion detection
• IP67 weatherproof
• 120dB wide dynamic range
• Built-in microphone
• Supports on board storage (up to 256 GB)
• 12V DC & Poe (802.3af)

Camera

• Image Sensor1/2.4″ Progressive Scan CMOS
• Max. Resolution 3200 × 1800
• Min. Illumination Colour: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°

Focal Length & FOV

• 2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6°
• 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8°
• 6 mm, horizontal FOV 47.5°, vertical FOV 26°, diagonal FOV 54.5°
• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

DORI

• 8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m
• 4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m
• 6 mm: D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m

Illuminator

• Supplement Light Type IR
• Supplement Light Range Up to 40 m
• Smart Supplement Light Yes
• IR Wavelength850 nm

Video

Main Stream

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

• Main stream: H.265/H.264/H.265+/H.264+
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream
• Target Cropping Yes

Audio

• Audio Type-U: mono sound
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live View Up to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host Up to 32 users. 3 user levels: administrator, operator and user
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

• NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
• Built-In Microphone-U: Yes
• Reset Key Yes

Event

• Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

• Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Supports human and vehicle targets classification
• Scene change detection
• Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

Deep Learning Function

• Face Capture Yes

General

Power

• 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug
• POE: 802.3af, Class 3 36V to 57 V, 0.2 A to 0.13 A, max. 7.2 W
• DimensionØ70 mm ×161.7 mm (Ø2.8″ × 6.4″)
• Package Dimension216 mm × 121 × 118 mm (8.5″ × 4.8″ ×4.6″)
• Approx. 490 g (1.1 lb.)
• With Package Weight Approx. 759 g (1.7 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions,-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

• EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)
