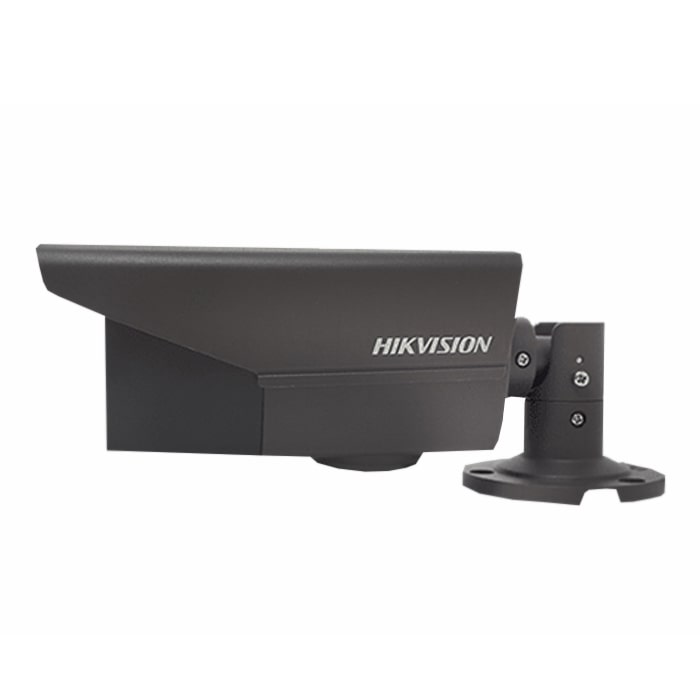

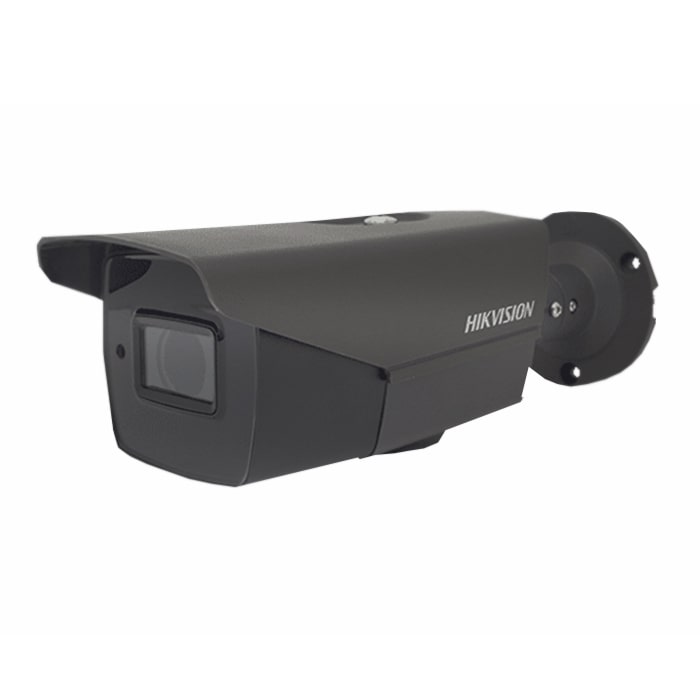

Hikvision DS-2CE16H0T-IT3ZE 5MP Vari-focal PoC Bullet Camera 40m IR

This is DS-2CE16H0T-IT3ZE Hikvisions 5MP PoC HD TVI bullet camera, 2.7 – 13.5 mm varifocal lens, 40 m IR and IP67 whether rating.

Power over coax (PoC) means that power for the camera is supplied directly from the DVR via coaxial cable (RG59), this simplifies installation time and removes the requirement for extra power supplies and separate or dual cable, thus saving time and costs.

PoC can be used for up to 200 m distance and is available in the 4, 8 and 16 channel (Hikvision models ending /P), making this a very cost-effective and smart solution.

Hikvision DS-2CE16H0T-IT3ZE Specifications:

• 5 MP high performance COMS
• 2560 × 1944 resolution
• 2.7 mm to 13.5 mm motorized varifocal lens
• EXIR 2.0, smart IR, up to 40 m IR distance
• OSD menu, 2D DNR, DWDR
• poc.at
• IP67
• Up the coax (HIKVISION -C)

Camera

• Image Sensor 5 MP CMOS image sensor
• Resolution 2560 (H) × 1944 (V)
• Illumination Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
• Signal System PAL/NTSC
• Lens
• Lens Type 7 mm to 13.5 mm motorized varifocal lens
• Focal Length & FOV 7° to 29.1°
• Lens Mount Φ 14


• Image Settings Brightness, Sharpness, DNR, Mirror, Smart IR
• Frame Rate PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
• Day/Night Mode Smart/colour/BW (Black and White)
• Image Enhancement BLC
• White Balance ATW/MWB
• AGC Low/middle/high
• Interface
• Video Output 1 HD analogue output

General

• Material Front cover: Metal Main body: Plastic Bracket: Metal
• Dimension 5 mm × 92 mm × 255.1 mm (3.33″ × 3.62″ × 10″)
• Approx. 685 g (1.51 lb.)
• Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication Up the coax, Protocol: HIKVISION-C (TVI output)
