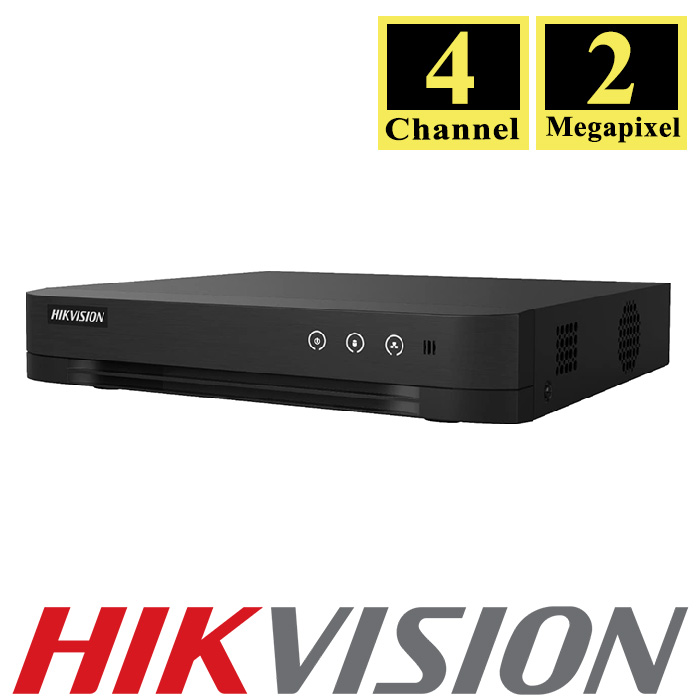

The Hikvision DVR DS-7204HGHI-K1 is a reliable and feature-rich digital video recorder designed for professional surveillance systems. With its advanced technology and robust capabilities, it provides efficient video recording and management for enhanced security applications.
Equipped with four channels, the DS-7204HGHI-K1 allows for simultaneous recording and monitoring of up to four cameras. It supports H.265+ video compression, which ensures optimised storage utilisation without compromising video quality, maximising recording duration.
The Hikvision DVR DS-7204HGHI-K1 features a user-friendly interface that simplifies navigation and configuration. It supports multiple recording modes, including continuous, scheduled, and motion-based recording, providing flexibility and customisation options to suit specific surveillance requirements.
Compatibility is not an issue with the DS-7204HGHI-K1, as it supports various camera types, including analog, HD-TVI, and AHD cameras, offering flexibility in camera selection and integration.
The DS-7204HGHI-K1 provides high-definition video recording, capturing clear and detailed footage for accurate monitoring and analysis. It supports HDMI and VGA outputs, allowing for easy connection to monitors or displays for real-time video viewing.
Remote access is made possible through the Hik-Connect mobile app or a web browser, enabling users to monitor their surveillance system remotely from anywhere at any time.
Additional features of the DS-7204HGHI-K1 include motion detection, alarm notifications, and PTZ control, enhancing the surveillance capabilities. It is designed for 24/7 operation and offers expandable storage options for extended recording periods.
Features:
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 5-ch IP camera inputs (up to 2 MP)
- Up to 1080p Lite@15 fps encoding capability
- Max. 1200 m for 720p HDTVI signal
Hikvision DS-7204HGHI-K1 Specifications:
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF
- For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
- For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate:32 Kbps to 4 Mbps
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bitrate: 64 Kbps
Video And Audio
- IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS Input: Support
- HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
- Synchronous Playback: 4-ch
- AHD Input: 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
- Video Output Mode: HDMI/VGA simultaneous output
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Audio Input
- 1-ch RCA (2.0 Vp-p, 1 KΩ)
- 4-ch via coaxial cable
- Two-Way AudioReuse the first audio input
Network
- Total Bandwidth: 64 Mbps
- Network Protocol:TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
- Remote Connection:32
- Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
- SATA: 1 SATA interface
- Capacity: Up to 4 TB capacity for each disk
- USB Interface: Rear panel: 2 × USB 2.0
- Alarm In/Out: N/A
General
- Power Supply:12 VDC, 1.5 A
- Consumption:≤ 16 W (without HDD)
- Working Temperature:-10 °C to 55 °C (14 °F to +31 °F)
- Working Humidity:10% to 90%
- Dimension (W × D × H): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
- Weight: ≤ 0.8 kg (without HDD, 1.8 lb.)
